Allen & Heath 6 XONE:1D User Guide
MIDI CONTROL SECTION
MIDI Messages

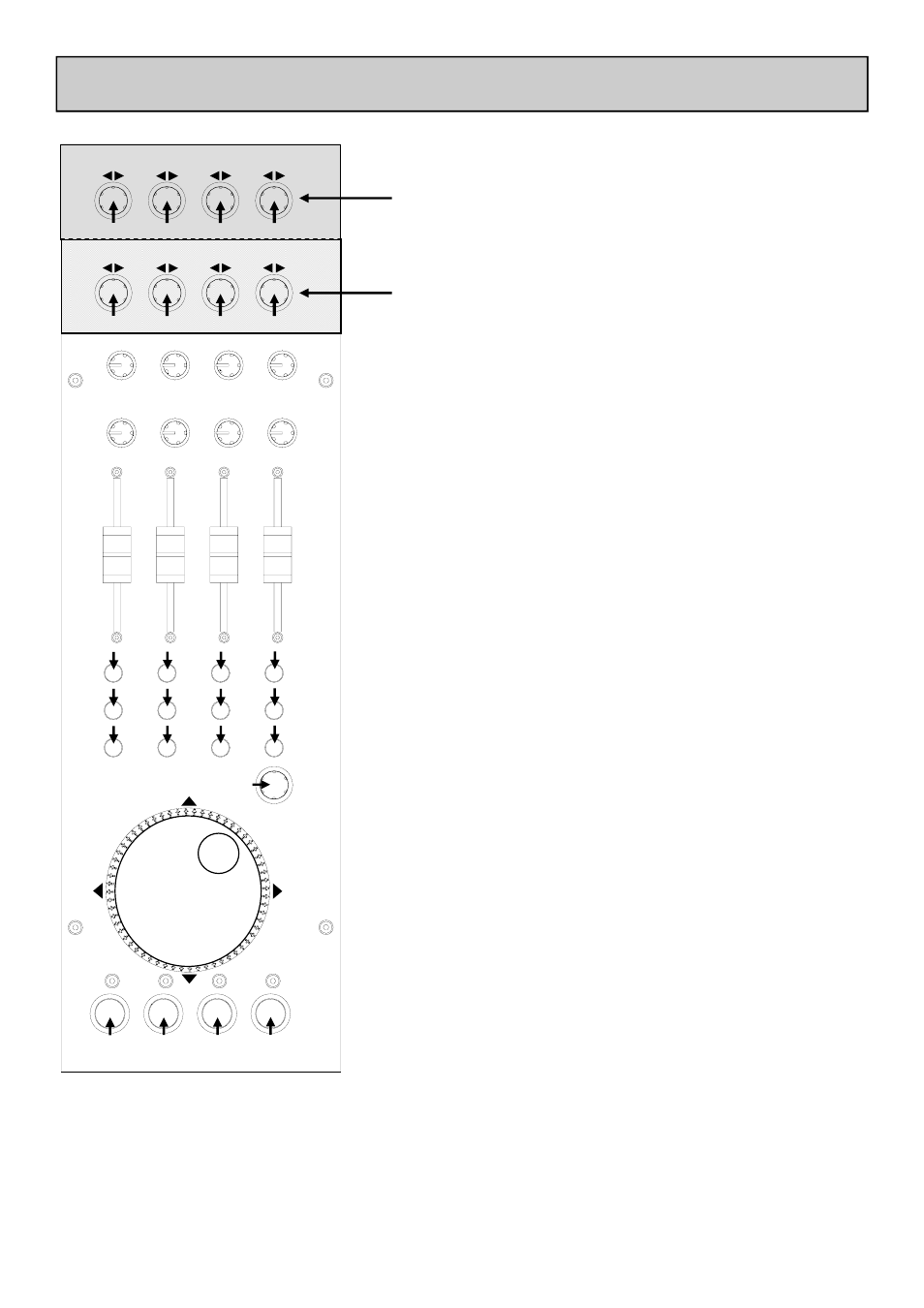

The diagram shows which controls are associated with
MIDI CC (continuous controller) and note on/off
messages. These controls send the MIDI messages
shown when operated.
The rotary encoders and jog wheel are digital controls
that send 2’s complement data rather than absolute
values. For a more in depth description of how to set up
the MIDI controls please refer to the Technical Tutorials
on the Xone website:
www.xone.co.uk
The switch light ring indicators may be turned on or off
by incoming MIDI messages.
MIDI Map
Two control mappings are available, Map2 is the default
for most applications. Map1 differs only in the messages
generated by the top row of rotary encoders and the
four illuminated switches. Use Map2 with Ableton Live
software. Map1 is recommended for use with Native
Instruments Traktor software.
MAP 1
MAP 2
E0 D-1 E-1 D0
E0 D-1 E-1 D0
F#5 F5 G#5 G5 A#5 A5 C6 B6
CC32 CC33 CC34 CC35
CC9 CC11 CC13 CC15
CC8 CC10 CC12 CC14
CC19 CC18 CC17 CC16
M N O P
Q R S T
U V W X
F0 D#-1 F-1 D#0
C1 A-1 F#-1 G#0
C#1 A#-1 G-1 A0
C0
CC36
A#-2
C#-1
B-2 A-2
CC37
D1 B-1 G#-1 A#0
