MIDI CHANNEL NUMBER
MIDI Channel Number
The MIDI channel number will default to channel 16, but can be
changed to any channel between 1 and 16.
To change the MIDI channel number and MIDI map:
1.
Connect the USB cable to the PC/Mac but not the Xone:1D
2. Hold down the switch on the encoder shown in the diagram
3. Connect the USB cable to the Xone:1D
4. The illuminated switches will flash three times—now release
the switch on the encoder

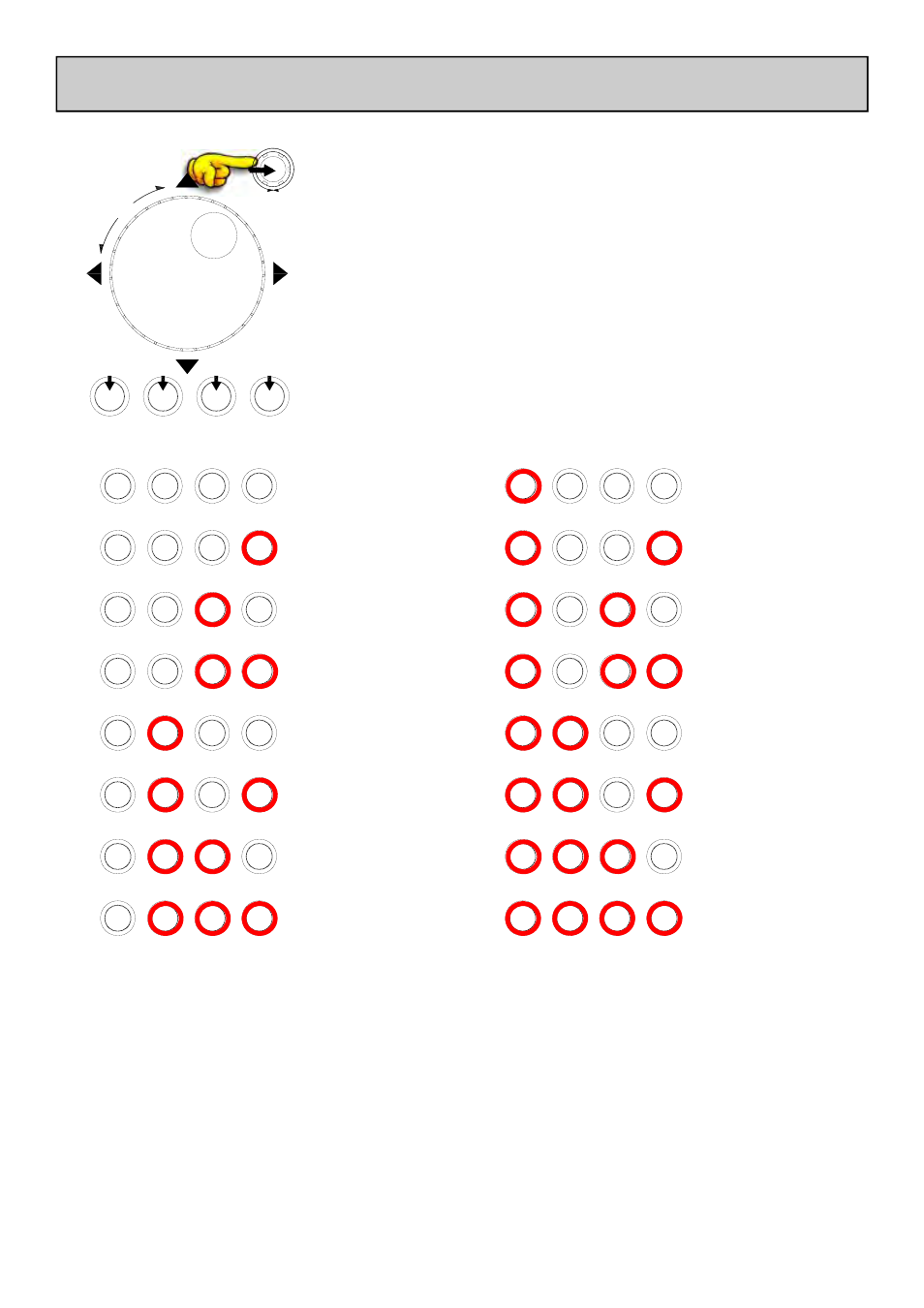

The illuminated switches on the Xone:1D will display the current
MIDI channel number in binary format as shown below.
Channel 1
Channel 2
Channel 3
Channel 4
Channel 5
Channel 6
Channel 7
Channel 8
Channel 9
Channel 10
Channel 11
Channel 12
Channel 13
Channel 14
Channel 15
Channel 16
To change the channel number that the MIDI is transmitted on, rotate the encoder above
the jog wheel.
Once the desired channel has been selected, press and then release the switch on the
encoder above the jog wheel, the illuminated switches will flash once indicating that the
channel number has been set.
