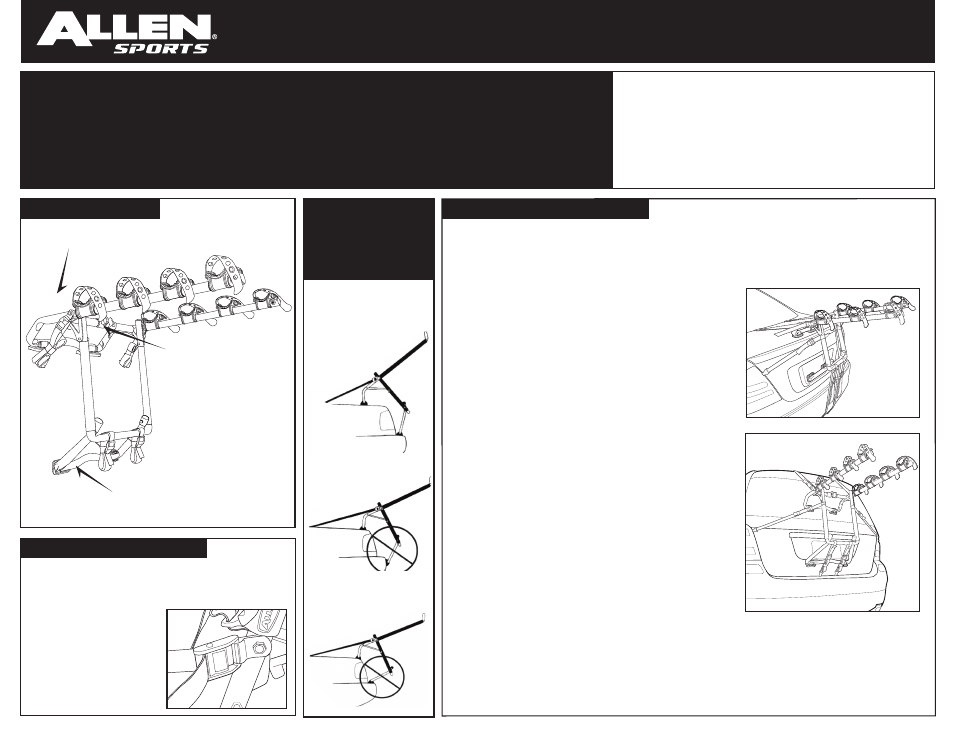

MODEL S104 INSTRUCTIONS
ENGLISH - PAGE 1
WARNING: Bikes or rack falling in road can cause serious accidents resulting in bodily injury—do not use rack on any
vehicle on which it can not be properly mounted as described in this instruction sheet.
• Top hooks must be completely hooked over solid metal edges at top/ front of trunk lid or rear door—never hook to
rain gutters, roof racks, vertical glass, rubber or plastic moldings.
• Mount rack only with bottom feet on a rigid surface of car (never on glass), and with bottom foot assembly completely
extended. Never use rack on trailers or on the front of vehicles.
• Never carry more than 4 bicycles ( MAX CAPACITY: 140 LB) - no tandems, mopeds, or recumbents. Car tail lights
must remain visible. Bikes must be securely tied to rack. Use bike tie-downs, or additional straps if necessary.
• Drive conservatively, especially over bumps. Never use off-road.
• Do not use if any part of the rack is damaged, worn, or missing. Contact R. A. Allen Co., Inc. for replacement parts.
CAUTION: Use Allen S104 only in accordance with local motor
vehicle and traffic regulations.
• To avoid damage to rear door or trunk, do not open trunk or
rear door when hooks or rack are in place.
• Install rack and load bicycles only at a safe distance away
from moving traffic.
• Only rubber feet and rack should come into contact with car.
• Make sure that all of rack and bicycles are kept at a safe distance
from road and hot exhaust.
• Remove rack from car when not in use
TOP HOOKS MUST BE COMPLETELY HOOKED OVER METAL EDGES AT TOP OF TRUNK, REAR DOOR, OR
HATCHBACK. NEVER HOOK TO RAIN GUTTERS, ROOF RACKS, VERTICAL GLASS OR PLASTIC MOLDINGS.
OPEN TRUNK/ HATCH SLIGHTLY FOR EASIEST ATTACHMENT OF HOOKS. BE CAREFUL THAT HOOKS DO
NOT BIND WHEN TRUNK/ HATCH IS OPENED. BINDING HOOKS WILL DAMAGE VEHICLE.
SECURING TOP HOOKS ON VEHICLES WITHOUT ADEQUATE
CLEARANCE AT THE TOP EDGE OF REAR TRUNK/ HATCH:
UNTHREAD TOP STRAPS FROM METAL BUCKLES AND OPEN
REAR TRUNK/ HATCH. PLACE TOP HOOKS INSIDE OF VEHICLE
(JUST INSIDE OF TOP EDGE OF REAR TRUNK/ HATCH).
CARFEULLY CLOSE REAR TRUNK/ HATCH ON TOP STRAPS,
MAKING CERTAIN HOOKS DO NOT BIND BETWEEN FRAME AND
REAR DOOR. IMPORTANT: WITH REAR DOOR CLOSED, PULL
TOP STRAPS TO BRING HOOKS TIGHT AGAINST INSIDE OF
VEHICLE. RE-THREAD TOP STRAPS AS SHOWN IN SECTION B.
MOUNT RACK TO VEHICLE.
SET LENGTH OF TOP STRAPS TO POSITION RACK WITH ITS
CARRY ARMS INCLINED SLIGHTLY UPWARDS, AND HIGH
ENOUGH TO KEEP BIKES AWAY FROM ROAD AND EXHAUST.
ONCE THE LENGTH OF THE TOP STRAPS ARE SET, THE BOTTOM
FOOT ASSEMBLY SHOULD BE HELD AGAINST THE VEHICLE IN
ITS COMPLETELY OPEN POSITION. IT IS IMPORTANT THAT THE
BOTTOM GRAY RUBBER PADS ARE INSTALLED ON THE VEHICLE
IN A LOCATION WHERE THERE IS PROPER SUPPORT. THE
BOTTOM FEET SHOULD NEVER BE INSTALLED ON GLASS.
MAKE SURE THAT THE BOTTOM STRAPS ARE PROPERLY
THREADED THROUGH PLASTIC BUCKLES.
BOTTOM STRAPS: COMPLETELY HOOK BOTTOM HOOKS TO A
METAL EDGE BELOW BUMPER, OR AT THE BOTTOM OF THE
TRUNK/ REAR DOOR. IF THERE IS NO METAL EDGE BELOW
BUMPER, SEE ALTERNATE METHOD FOR BOTTOM HOOK
ATTACHMENT ON THE NEXT PAGE.
COMPLETELY TIGHTEN BOTTOM STRAPS BY PULLING ON FREE END OF STRAPS UNTIL ELASTIC PORTION
OF STRAPS ARE COMPLETELY STRETCHED.
SIDE STRAPS: COMPLETELY HOOK SIDE HOOKS TO THE LEFT AND RIGHT OF REAR DOOR, AND TIGHTEN
STRAPS BY PULLING ON THE FREE END OF STRAP UNTIL THE ELASTIC PORTION OF STRAP IS
COMPLETELY STRETCHED.
SETTING UP RACK:
FOLD OUT TOP FOOT/ CARRYARM ASSEMBLY.
NOTE: DRAWING SHOWS S103 MODEL
1.
1.
1.
2.
3.
4.
5.
6.
7.
3.COMPLETELY FOLD OUT BOTTOM
FOOT ASSEMBLY.
A.
BEFORE INSTALLING RACK:
B.
INSTALLING RACK ON VEHICLE:
C.
1. MAKE SURE THAT CONTACT SURFACES BETWEEN CAR AND
RUBBER FEET ARE THOROUGHLY CLEAN AND FREE OF DIRT,
AND THAT ALL RUBBER FEET ARE PROPERLY SPACED.
2. MAKE SURE THAT TOP
BUCKLES ARE THREADED
AS SHOWN ON LEFT, NOT
AS ON RIGHT.
3. INSPECT ALL STRAPS TO MAKE
SURE THAT THEY ARE NOT WORN
OR DAMAGED IN ANY WAY.
1.
2. SET-UP PINS WILL
“SNAP” INTO
PLACE
IMPORTANT
INSTALLATION
NOTICE:
NEVER INSTALL RACK WITH ITS
BOTTOM FEET ON THE OUTSIDE
VERTICAL SURFACE OF THE BUMPER.
NEVER INSTALL RACK WITHOUT
BOTTOM FOOT IN A COMPLETELY
EXTENDED POSITION
BOTTOM FOOT ASSEMBLY MUST BE
COMPLETELY EXTENDED. IF TOP
FEET ARE MOUNTED ON THE
HORIZONTAL SURFACE OF THE REAR
TRUNK, BOTTOM FEET MUST BE SUP-
PORTED BY THE TOP HORIZONTAL
SURFACE OF THE BUMPER.
2.
3.
