MODEL S555 INSTRUCTIONS
ENGLISH - PAGE 1
WARNING: Bikes or rack falling in road can cause serious accidents resulting in bodily injury—do not use rack on any
vehicle on which it can not be properly mounted as described in this instruction sheet.
• Rack should only be used on vehicles with Class III or IV 2” receiver hitches.
• NEVER use on trailer or front of vehicles.
• Bikes must be tied to rack using tie-downs, or additional straps if necessary.
• Check periodically during use taht all bolts and pins are tight, and that rack and bicycles are secure.
• Never carry more than 5 bicycles ( MAX CAPACITY: 175 LB) - no tandems, mopeds, or recumbents. Car tail lights
must remain visible. Bikes must be securely tied to rack. Use bike tie-downs, or additional straps if necessary.
• Drive conservatively, especially over bumps. Never use off-road.
• Do not use if any part of the rack is damaged, worn, or missing. Contact R. A. Allen Co., Inc. for replacement parts..
CAUTION: Use Allen S-555 only in accordance with local motor
vehicle and traffic regulations.
• Install rack and load bicycles only at a safe distance away from
moving traffic.
• Make sure that all of rack and bicycles are kept at a safe distance
from road and hot exhaust.
• Only operate vehicle with rack in an upright, locked position.
• Bicycles should never extend beyond sides of vehicle.
• Remove rack from car, or fold carry arms down when not in use.
• INSERT LOWER PORTION OF RR POST INTO
HITCH INSERT SO THAT THE HOLES AT THE
BOTTOM OF EACH PART LINE UP.
• INSERT THE 3/8” X 3” BOLT THROUGH THE HOLE,
AND THREAD 1—3/8” LOCK NUT ONTO THE END
OF THE BOLT.
• PIVOT THE RR POST INTO THE UPRIGHT
POSITION, SO THAT THE SECURING LATCH
SNAPS INTO PLACE.
• TIGHTEN NUT AND BOLT FIRMLY USING TWO
WRENCHES.
• INSERT CARRY ARM ASSEMBLY
INTO UPPER PORTION OF RR
POST, LINING UP THE HOLES IN
EACH PART.
•INSERT THE 3/8” X 2 1/2” BOLTS
THROUGH EACH HOLE, AND
THREAD 1—3/8” LOCK NUT ONTO
THE END OF THE BOLTS.
• TIGHTEN EACH NUT AND BOLT
FIRMLY USING TWO WRENCHES.
NOTE: UPON COMPLETION, BOTH
PARTS SHOULD BE FIRMLY
JOINED TOGETHER.
.
IMPORTANT:
WHEN RACK IS IN AN
UPRIGHT POSITION,
SECURING LATCH MUST
BE FULLY ENGAGED FOR
RACK TO FUNCTION
PROPERLY.
CARRY ARM ASSEMBLY
TOOLS REQUIRED: 2—9/16” WRENCH & 2—3/4” WRENCH;
or 2 ADJUSTABLE WRENCHES

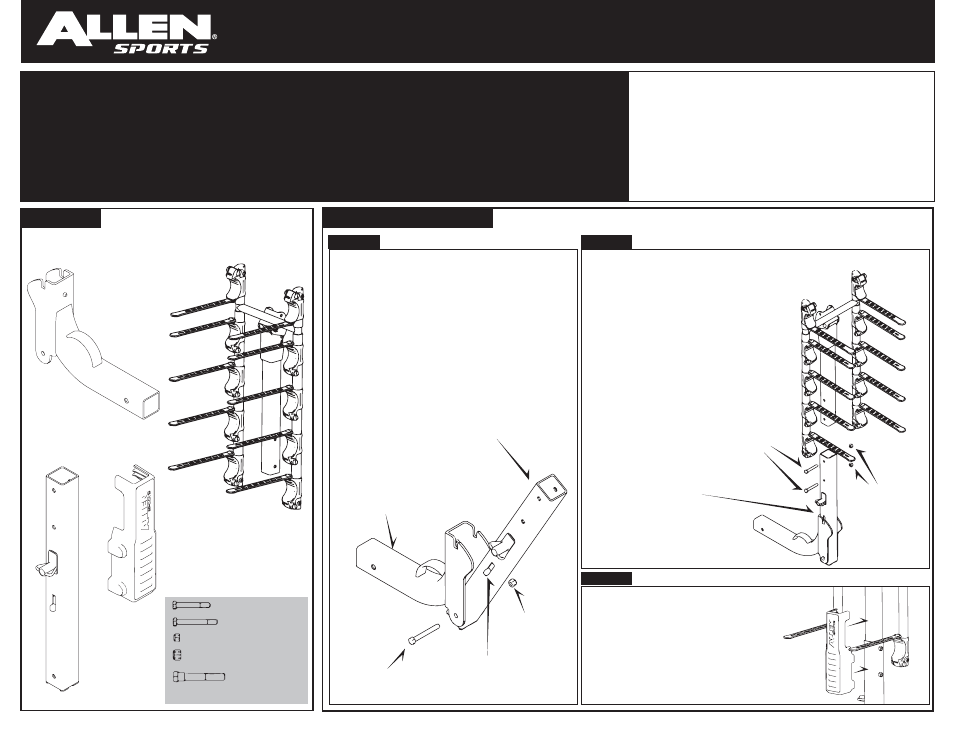

PARTS
HITCH INSERT
S-555 BOX SHOULD CONTAIN THE
FOLLOWING ITEMS:
1- CARRY ARM ASSEMBLY 1-
1—HARDWARE KIT,
CONTAINING:
2 - 3/8” X 2 1/2“ BOLT
1 - 3/8” X 3” BOLT
4 - 3/8” LOCK NUT
1 - 1/2” LOCK NUT
1 - 1/2” WOBBLE BOLT
1 - 70” BOTTOM STRAP
RR POST 1- 1- SPINE SHIELD
A.
ASSEMBLING RACK:
B.
STEP 1 STEP 2
STEP 3
3/8”
LOCK
NUT
3/8”x 2 1/2”
BOLT
RR POST
HITCH INSERT
3/8” X 3”
BOLT
SECURING LATCH
3/8”
LOCK NUT
INSTALLING SPINE PAD
WITH “ALLEN SPORTS” IN THE UPPER
POSITION, LINE UP THE RECESSES
FOR THE NUT AND BOLT HEADS, AND
SNAP THE SPINE PAD INTO PLACE
ONTO THE RECEIVER RACK’S
VERTICAL POST.
