Crate Amplifiers GTX65 - Manual (Page 6)

6
CAUTION: TO REDUCE THE RISK O F F I R E ,
R E P L AC E F U S E W I T H SAME TYPE AND RATING.
ATTENTION: UTILISER UN FUSI B L E D E
R E C H A N G E D E M E M E TYPE.
CHANNEL
FOOTSWITCH
EXTENSION
SPEAKER
INSERT DSP
CLEAN
SOLO/RTHM
BANK A
BANK B
100VAC: T2.5A 250V
120VAC: T2A 250V
230/240VAC: T1.25A 250V
26 27 28 29 30

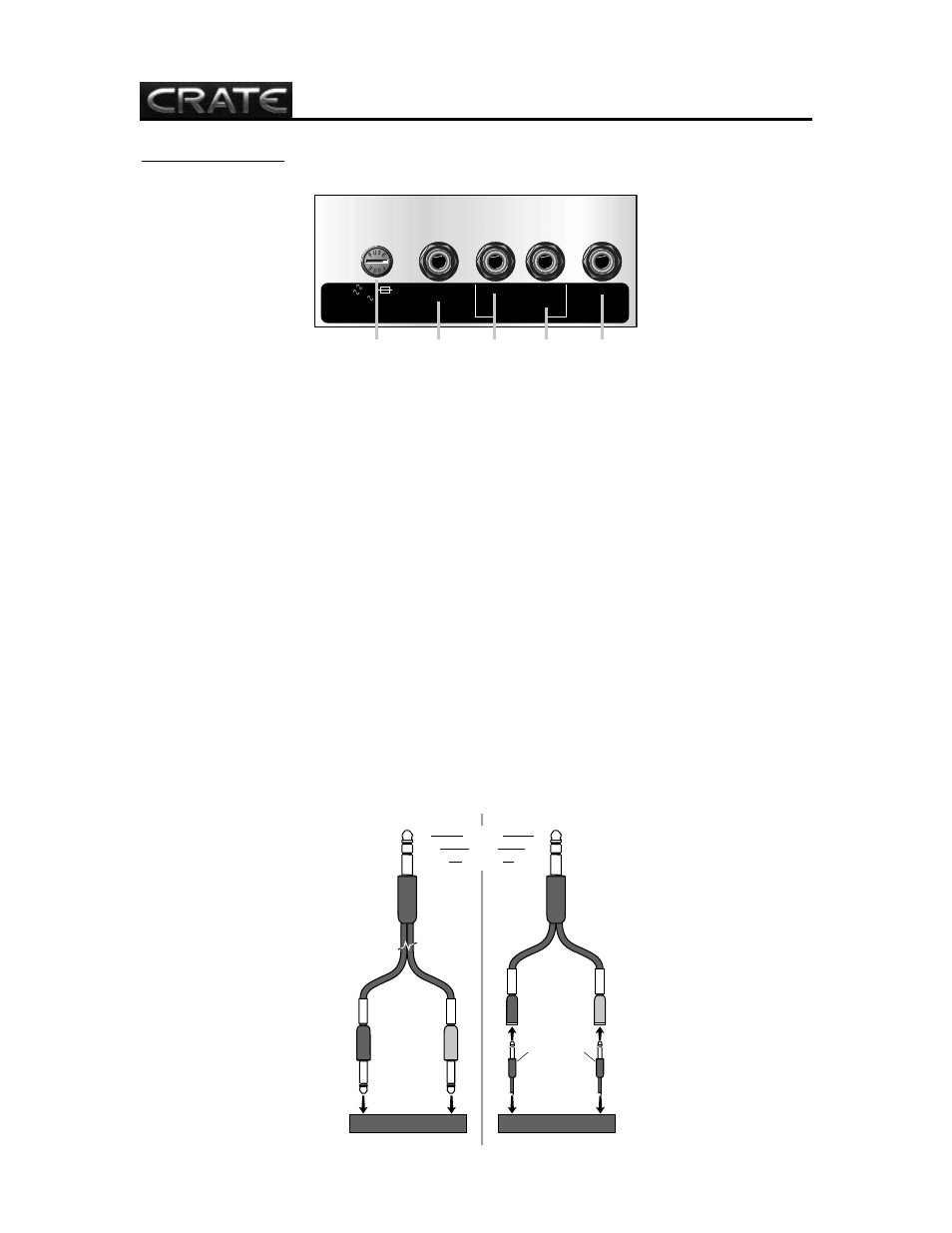

The Rear Panel:
26: FUSE: The fuse protects the amplifier from damages caused by a faulty AC power source and/or
other problems. If the fuse opens, replace it ONLY with the same size and type. If fuses continue to
fail, check the AC source – if the source is okay, contact your Crate dealer for service information.
27: EXTENSION SPEAKER: Use this jack to connect the amplifier to an external speaker cabinet.
This jack is wired in series with the internal speaker(s) which remain active when an extension speak-
er is connected.
28: DSP A/B FOOTSWITCH: Use this jack to connect one of the footswitch cables to the three-but-
ton footswitch (supplied). This allows you to select between two presets for each of the three chan-
nels. Additional information about the operation of the footswitch is on page 9.
29: CLEAN/SOLO/RHYTHM FOOTSWITCH: Use this jack to connect one of the footswitch cables to
the three-button footswitch (supplied). This allows you to remotely switch between the Clean and
Distortion channels and between the Solo and Rhythm channels. (See page 9.)
30: INSERT: Use this jack to connect an external signal processor to the amplifier. Use Crate’s
STP201, STP202, or STP203 stereo-to-mono Y-cord or an adapter such as Crate’s YPP117 and two
1/4” mono signal cables to connect to the effect as shown below.
27: AC LINE CORD (not shown): This grounded power cord is to be plugged into a grounded power
outlet, wired to current electrical codes and compatible with the voltage, power, and frequency require-
ments stated on the rear panel. Do not attempt to defeat the safety ground connection.
TIP
RING
SLEEVE RETURN
SEND
GROUND
Stereo-to-mono Y-cord:
to Insert
jack
to Insert
jack
(STP201, 3'
STP202, 6'
STP203, 9')
(YPP117)
(1/4"-TO-1/4"
MONO SHIELDED
CABLES)
to
effect
"OUT"
jack
to
effect
"IN"
jack
External Effect
TIP
RING
SLEEVE
Y-adapter and 2 cables:
External Effect
RING
RING TIP
TIP
to
effect
"OUT"
jack
to
effect
"IN"
jack
GTX65
Three-Channel Guitar Amplifier with Advanced DSP
