Page 12 For technical questions, please call 1-800-444-3353. SKU 95004
Spindle to secure the Saw Blade (20) in
place.

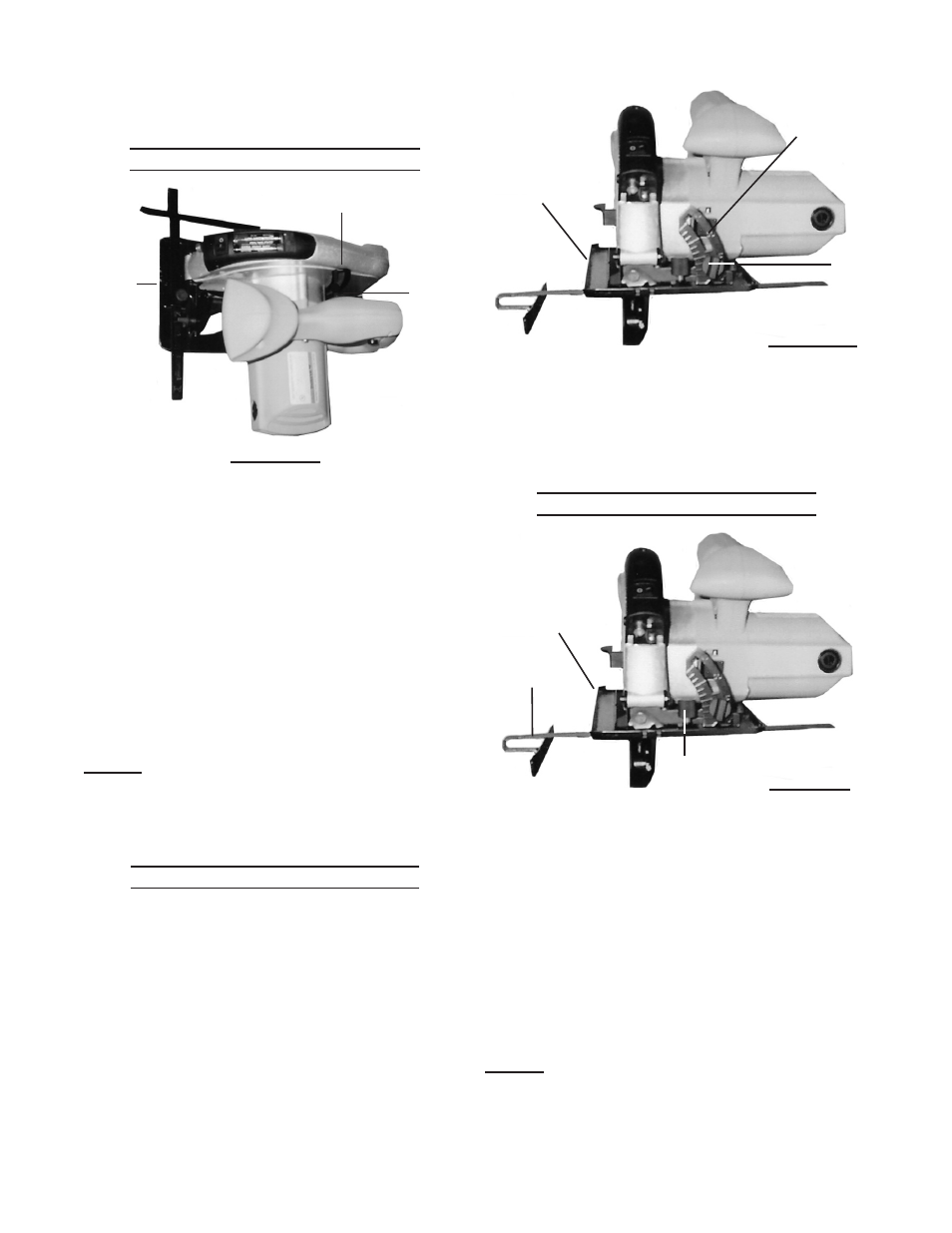

To Adjust The depth Of Cut:
dEpTH
LOCK (44)
dEpTH
BRACKET (46)
BASE (4)
FIgURE g
1. The depth of cut may be adjusted to a
maximum of 2-1/2” at 90 degrees and
1-3/4” at 45 degrees.
To adjust the depth of cut, raise the
2.
Depth Lock (44) to its unlocked position.
Raise the Saw body up from the Base
3.
(4), and set the depth of cut using the
Depth Bracket (46) provided.
Then, lower the Depth Lock to its locked
4.
position.
nOTE: Add 1/8” to your depth of cut so the
Saw Blade (20) can cut through the
material and clear out sawdust from the
cut.
To Adjust The Angle Of Cut:
The angle of cut may be adjusted from 1.
90 degrees to 45 degrees.
nUT
(10)
SCALE
BASE
(4)
FIgURE H
2. To adjust the angle of cut, loosen the
Nut (10). Rotate the Base (4) to set the
angle, using the Scale provided. Then,
retighten the Nut to lock the Base in
position.
To Adjust The guide Ruler:
gUIdE
RULER (1)
SCREW
(3)
BASE
(4)
FIgURE I
1. The Guide Ruler (1) is used for making
cut parallel to a workpiece edge at a
chosen distance.
To use the Guide Ruler (1), loosen the
2.
Screw (3). Slide the arm of the Guide
Ruler through the openings on each side
of the Base (4) and achieve the desired
cutting distance using the Scale. Then,
retighten the Screw to lock the Guide
Ruler in position.
nOTE: The Guide Ruler can be used from
either side of the Base.
