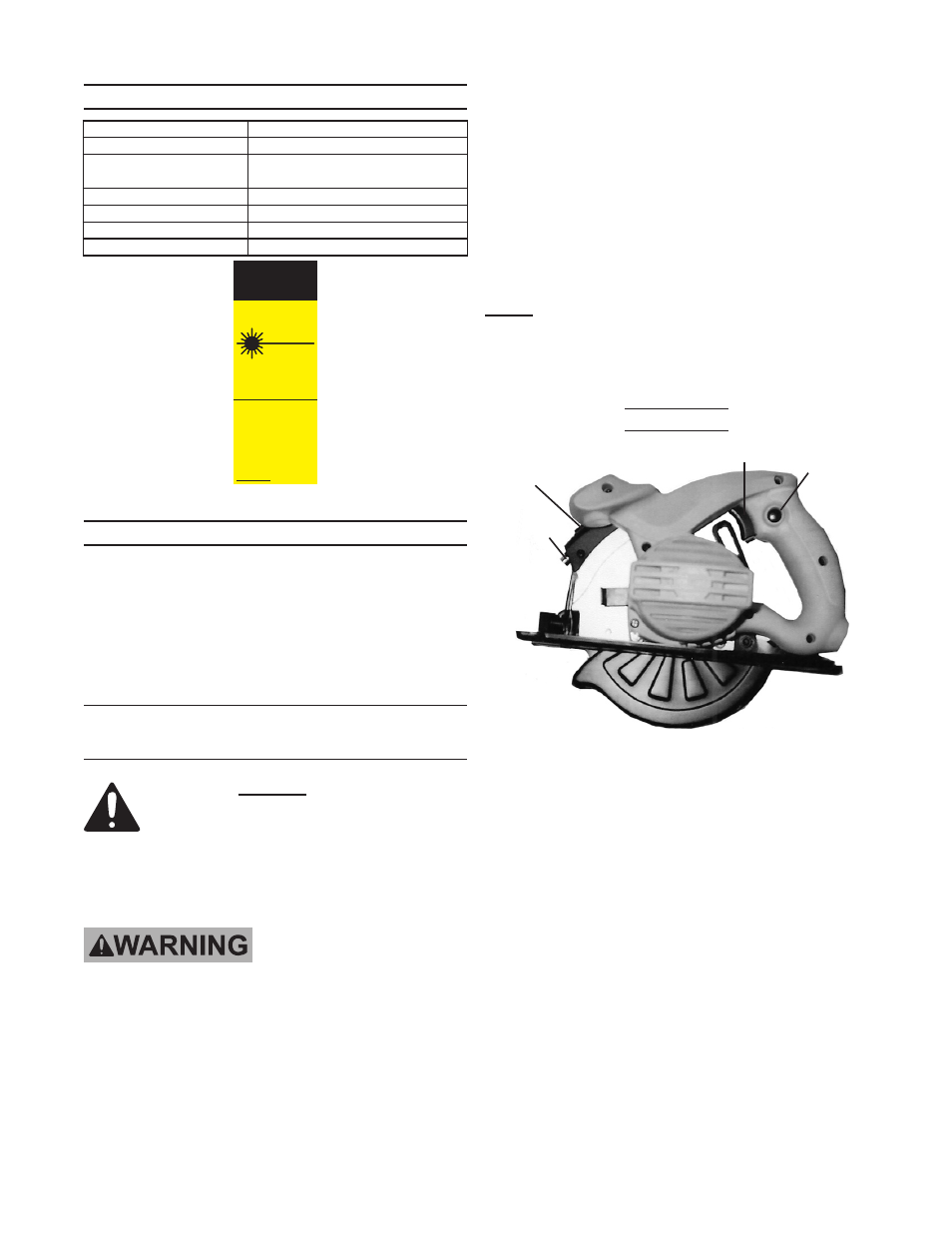

Page 10 For technical questions, please call 1-800-444-3353. SKU 95004
SpECIFICATIOnS
Motor 120 V~ / 60 Hz / 10 A; 5,000 RPM
Laser Battery Type “AAA” (Qty. 2 included)
Saw Blade 7-1/4” Diameter (Included)
Minimum 5,000 RPM Rating
Maximum Cutting Depth 2-1/2” @ 90° / 1-3/4” @ 45°
Spindle Diameter 5/8”
Base Plate Dimensions 10-5/8” L x 5-5/16” W x 3/8” H
Fence Guide Dimensions 6-1/4” L x 10-3/16” W x 1-1/16” H
CAUTION
LASER LIGHT
DO NOT STARE
INTO BEAM
Max. Output: <1 mW,
Wavelength: 650 nm
CLASS II LASER PRODUCT
This product complies
with 21 CFR 1040.10
and 1040.11
CEN-TECH
3491 Mission Oaks Blvd.,
Camarillo, CA, USA, 93011
Manufacture Date:
, ___________
UnpACKIng
When unpacking, make sure the item
is intact and undamaged. If any parts are
missing or broken, please call Harbor Freight
Tools at the number shown on the cover of
this manual as soon as possible.
InSTRUCTIOnS FOR pUTTIng
InTO USE
Read the EnTIRE IMpORTAnT
SAFETY InFORMATIOn
section at the beginning of this
manual including all text under
subheadings therein before set up
or use of this product.
TO pREVEnT
SERIOUS InjURY
FROM ACCIdEnTAL
OpERATIOn:
Turn the Trigger of the tool off
and unplug the tool from its
electrical outlet before
assembling or making any
adjustments to the tool.
TO pREVEnT SERIOUS InjURY
FROM FLYIng FRAgMEnTS:
do not use blades made from
high-speed steel, abrasive
blades, or metal- or masonry-
cutting blades. The guards of
this saw are not designed to
protect against the failure of
such blades.
note: For additional information regarding the
parts listed in the following pages, refer
to the Assembly Diagram near the end of
this manual.
Functions
TRIggER (67) SAFTEY
BUTTOn
LASER
SWITCH (74)
LASER
gUIdE
1. Safety Button: The Circular Saw is
equipped with a Safety Button. To turn
the Saw on, first depress the Safety
Button and then pull on the Trigger.
Laser Switch (74):
2. The Circular Saw
is equipped with a Laser Guide that
is designed to aid alignment of the
Saw Blade with the cutting line on the
workpiece. To operate, push the Laser
Switch to its “On” or “OFF” positions.
REV 10g
