Complete drive assembly schematic – Curtis 175 User Manual
Page 17
TRACTOR CAB INC.
August 2001
1176
16

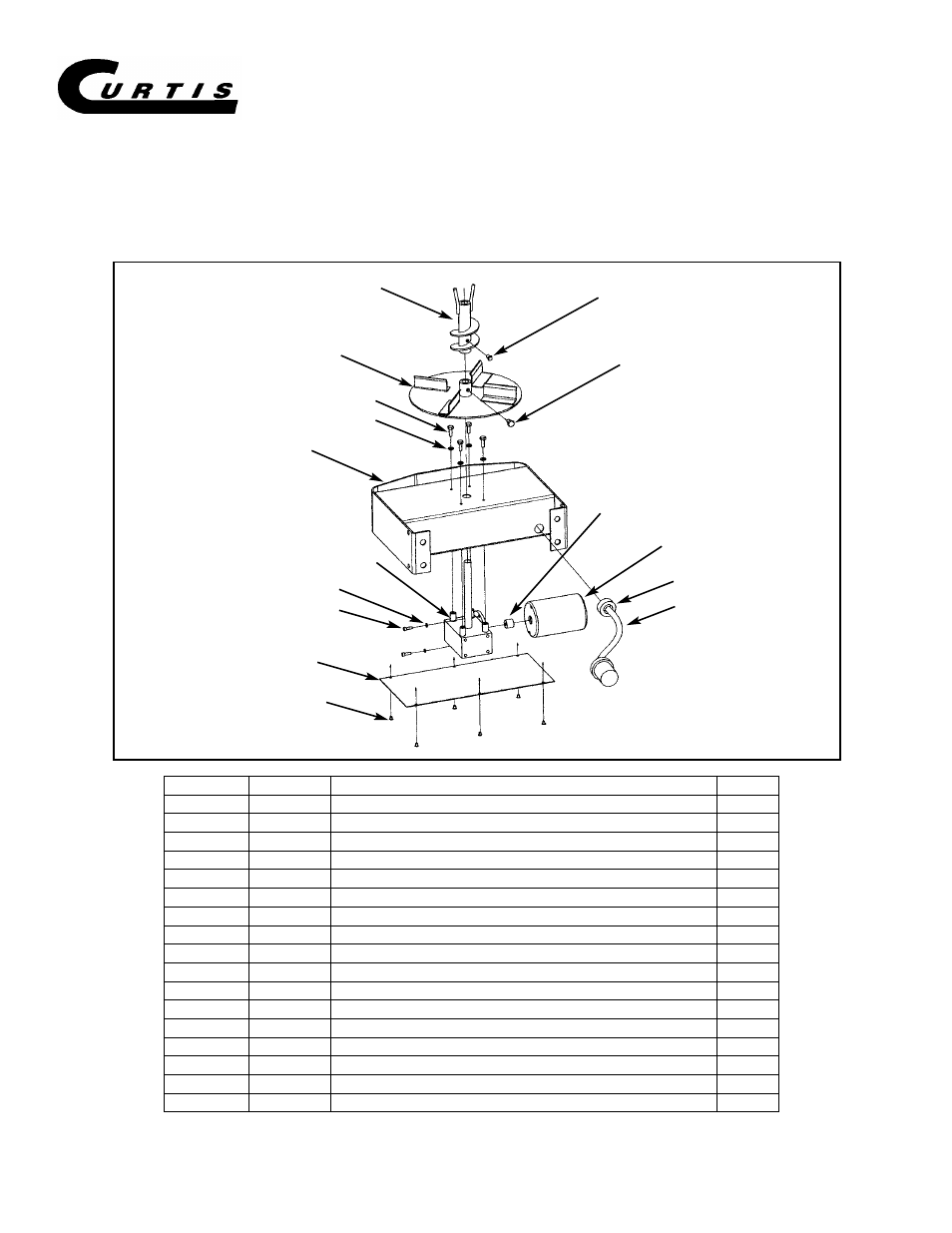

Complete Drive Assembly Schematic
Item No.
Part No.
Description
Qty.
Ẅ
1CS1P16
Motor 12 Volt DC
1
ẅ
1CS1P53
Transmission
1
Ẇ
1CS1P17
Motor Cover
1
ẇ
1CS1P13
Drive Enclosure
1
Ẉ
1CS3P7
Fast-Cast 3000 Power Cable
1
Ẉ
1CS1P21
Fast-Cast 2000 Power Cable
1
ẉ
1CS1P19
Auger
1
Ẋ
1CS1P22
Cord Restraint
1
ẋ
1CS1P29
3/16’’ Aluminum Rivet
6
Ẍ
1CS1P25
1/4’’-20 x 3/4’’ Hex Bolt Stainless
4
ẗẖ
1CS1P24
5/16''-18 x 1/2’’ Hex Bolt
1
ẗẍ
1CS1P30
1/4’’ Stainless Lock Washer
4
ẗẎ
1CS1P27
#10-32 x 5/8’’ Cap Screw
2
ẗẏ
1CS1P28
#10 Lock Washer
2
ẗẐ
1CS1P23
5/16’’-18 x 3/8’’ Set Screw
1
ẗẑ
1CS1P18
10’’ Steel Spinner
1
ẗẒ
1CS1P51
Motor Drive Coupler
1
ẉ
ẗẑ
Ẍ
ẗẍ
ẇ
ẅ
ẗẏ
ẗẎ
Ẇ
ẋ
ẗẐ
ẗẖ
ẗẒ
Ẅ
Ẉ
Ẋ
