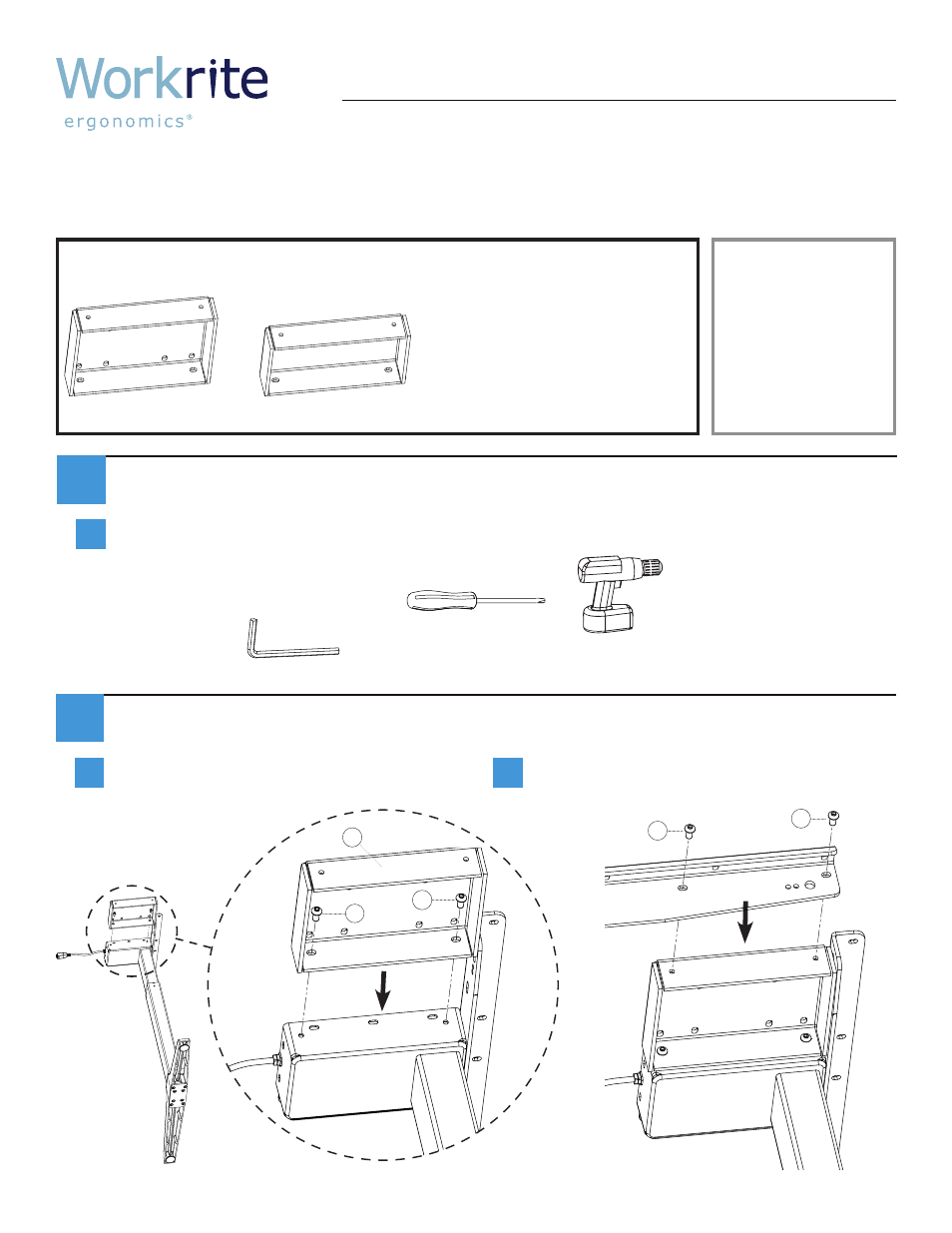

Sierra HX Spacer Kit
Installation Instructions
#1500179 Rev A
1
Parts and Tool Verification
Check your carton against the list above to verify that you have all the parts needed.
You will also need the following tools:
#2 tip Phillips screwdriver or drill bit
M4 Hex Wrench
a
List of Parts, grouped by carton
A
5” or 3” Spacer
Qty: 2
B
#12 × ¾” Pan
Head Sheet
Metal Screws
Qty: 8
or
#10-24 × ⅜”
Pan Head
Type 23 for
Silhouette Top
Qty: 8
C
M6 × 12mm
Button Cap
Screws
Qty: 4
D
M6 × 12mm
Button Cap
Screws
included with
table assembly
Qty: 4
or
Attach the Spacer to the Leg Motor with
the #M6 × 12mm Button Cap Screws
from the table assembly.
2
a
or
From Table Assembly
b Attach the HX Support Angle to the Spacer
with the M6 × 12mm Button Cap Screws on
the left and right.
Attaching Spacer & Support Angle For Two Leg Tables:
