Workrite Sierra HX™ 2-Leg Front-Crank Workcenters - Assembly Instructions
Adjust Workcenter Height
For safety and ease of adjustment, set
workcenter height while table is upside down. Pull Ring
Pins from each leg and raise or lower legs to desired height,
then re-insert pins.
Be sure to check legs for even
adjustment before turning the
workcenter back to its upright position.
a
5
a
Flip Table Over
Flip table over and adjust Leveling Glides if required so that table is steady and does not rock.
Tighten all screws completely.
b
3

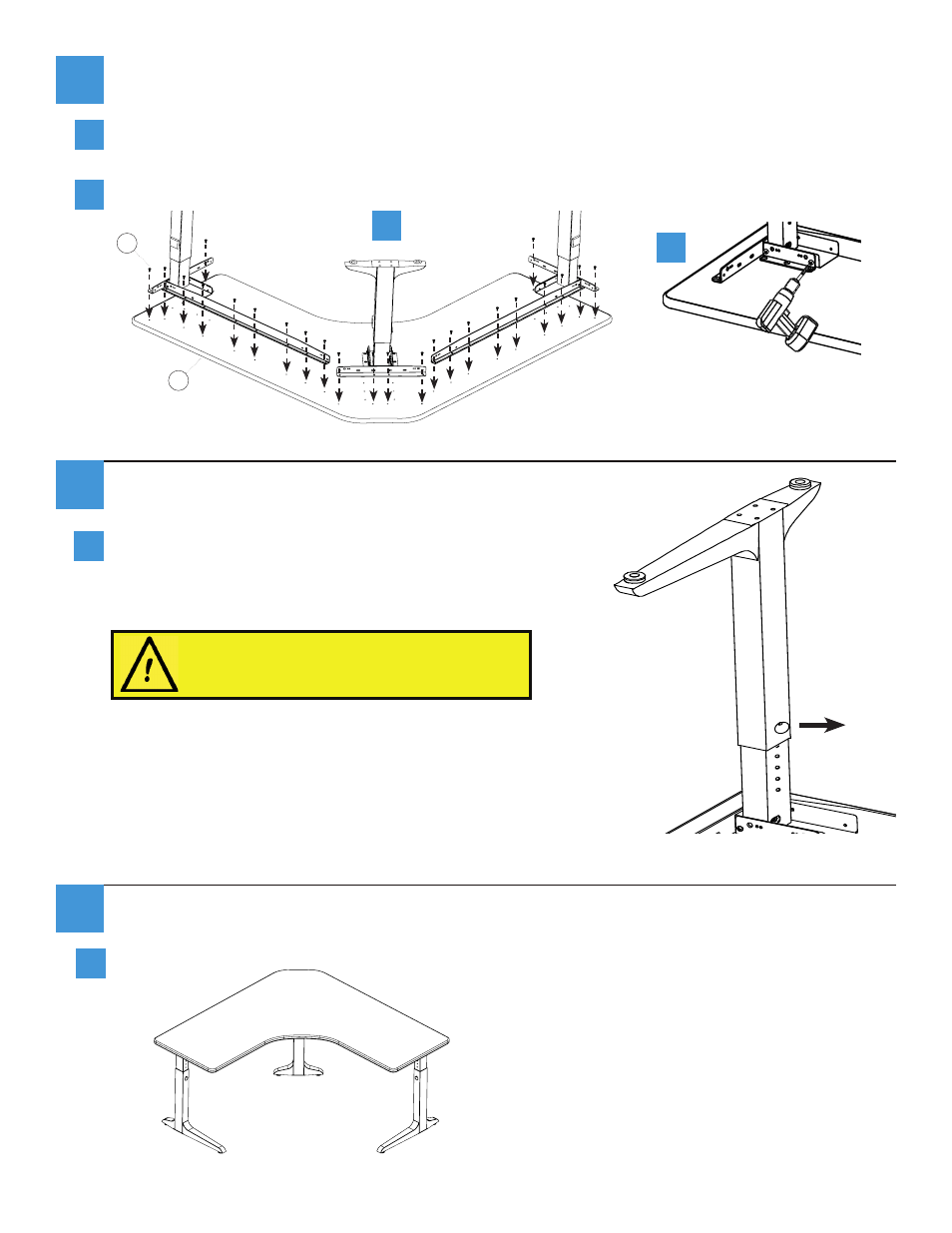

Attach the leg assembly to the worksurface
Lay out the leg assembly in the proper location. Attach assembly to Top (A) using 20 Sheetmetal
Screws (H).
a
a
b
A
H
