Vermont Castings, Majestic Products DVRT36/ 39/ 43
1. Choose the unit location.
2. Place the unit into position and secure it to the floor
with 1 ¹⁄₂ ” (38mm) screws or nails. Holes for securing
the unit to floor are located behind the access door
grille on the left and right sides of the unit.
3. Frame in the fireplace with a header across the top.
It is important to allow for the finished wall face
when setting the depth of the frame.
4. Attach the fireplace to the frame using the
adjustable frame drywall strips (located behind the
access door for shipping). Preset the depth to suit
the facing material of the wall. The strips are
adjustable to 1/2” (13mm), 5/8” (16mm) or
3/4” (19mm). (Fig. 5)
5. Screw through the slotted holes in the drywall strip
and into predrilled holes in fireplace side. Measure
from face of fireplace to the face of the drywall strip to
confirm the final depth.
Check the fireplace to make sure it is
leveled and properly positioned.
Framing & Finishing
Noncombustible materials such as brick or tile may be
extended over the edges of the face of the appliance.
DO NOT cover the window frame assembly, any
vent, louvre assembly top or louvre assembly
bottom.
If a Trim Kit is to be installed on the fireplace, the brick
or tile will have to be installed flush with the edges of
the appliance.
Final Finishing

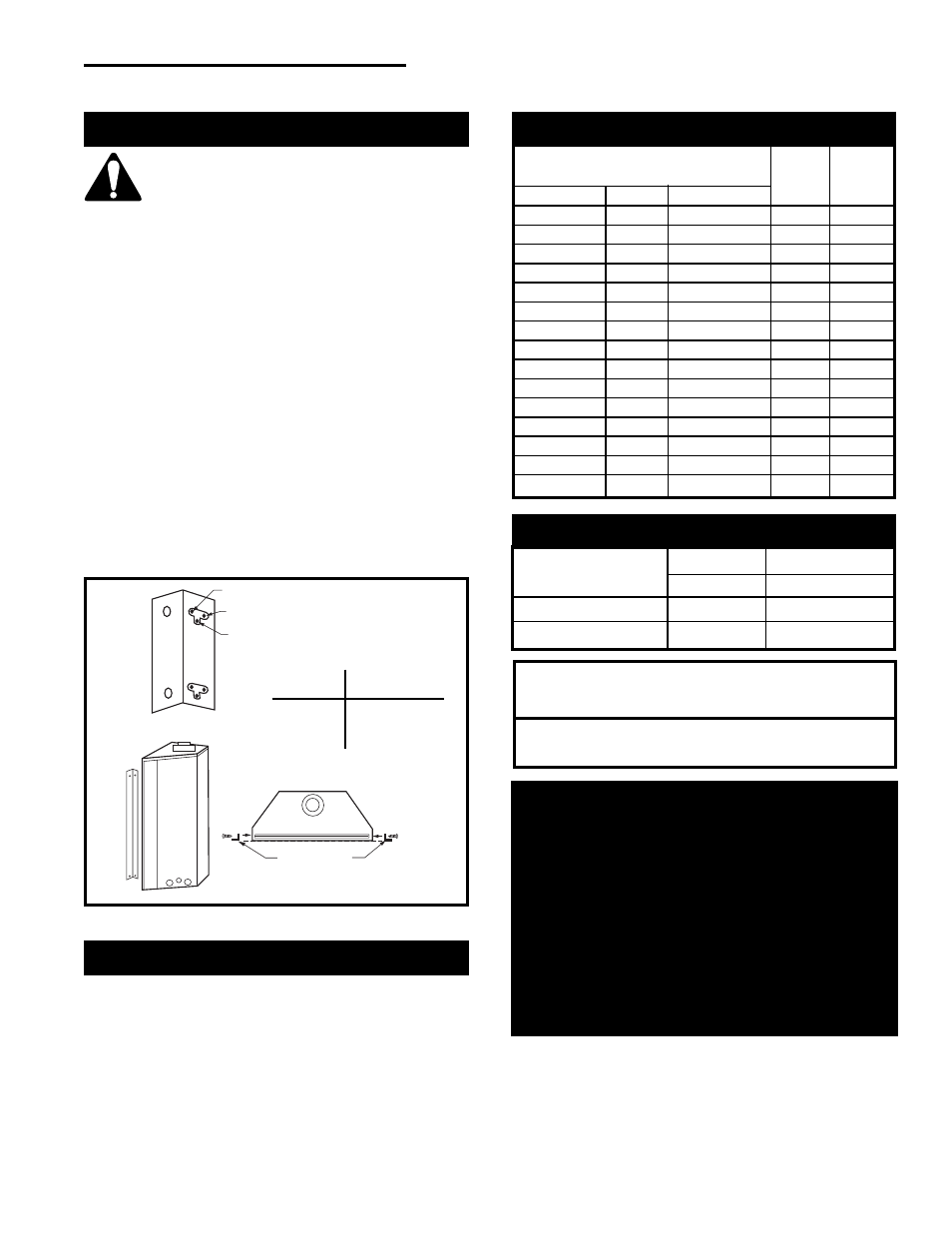

Fig. 5 Adjustable drywall strip (nailing flanges).
C
A
B
Adjustable Drywall Strip
(Nailing Flange)
FP1023
Adjustable
1/2” – 5/8” – 3/4”
Spacing
Screw Drywall
Position Depths
A 1/2” (13mm)
B 5/8” (16mm)
C 3/4” (19mm)
Inlet Minimum 5.5” w.c. 11.0” w.c.
Inlet Maximum 14.0” w.c. 14.0” w.c.
Manifold Pressure 3.5” w.c. 10.0” w.c.
Gas Inlet and Manifold Pressures
Natural LP (Propane)
High Elevations
Input ratings are shown in BTU per hour (BTU/h)
and are certified without deration for elevations
up to 4,500 feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the
current ANSI Z223.1/NFPA 54 and/or local codes
having jurisdiction.
In Canada, please consult provincial and/or local
authorities having jurisdiction for installations at
elevations above 4,500 feet (1,370 m).
DVRT36/ DVRT36RMH/ DVRT39/ DVRT43
Certified To
ANSI Z21.88-2002/ CSA 2.33-2002
Vented Gas Fireplace Heaters
Max. Min.
Input Input
Model Fuel Gas Control BTU/h BTU/h
DVRT36RN Nat Millivolt 25,000 17,500
DVRT36RP Prop Millivolt 25,000 18,750
DVRT36EN Nat 24V Hi/Lo 25,000 17,500
DVRT36EP Prop 24V Hi/Lo 25,000 18,750
DVRT36RFN Nat Comfort Control 25,000 17,500
DVRT36RFP Prop Comfort Control 25,000 18,750
DVRT36RMH Nat/ Prop Millivolt 25,000 17,500
DVRT39RN Nat Millivolt 30,000 21,000
DVRT39RP Prop Millivolt 30,000 22,500
DVRT39EN Nat 24V Hi/Lo 30,000 21,000
DVRT39EP Prop 24V Hi/Lo 30,000 22,500
DVRT43RN Nat Millivolt 33,000 23,100
DVRT43RP Prop Millivolt 33,000 24,750
DVRT43EN Nat 24V Hi/Lo 33,000 23,100
DVRT43EP Prop 24V Hi/Lo 33,000 24,750
Gas Specifications
