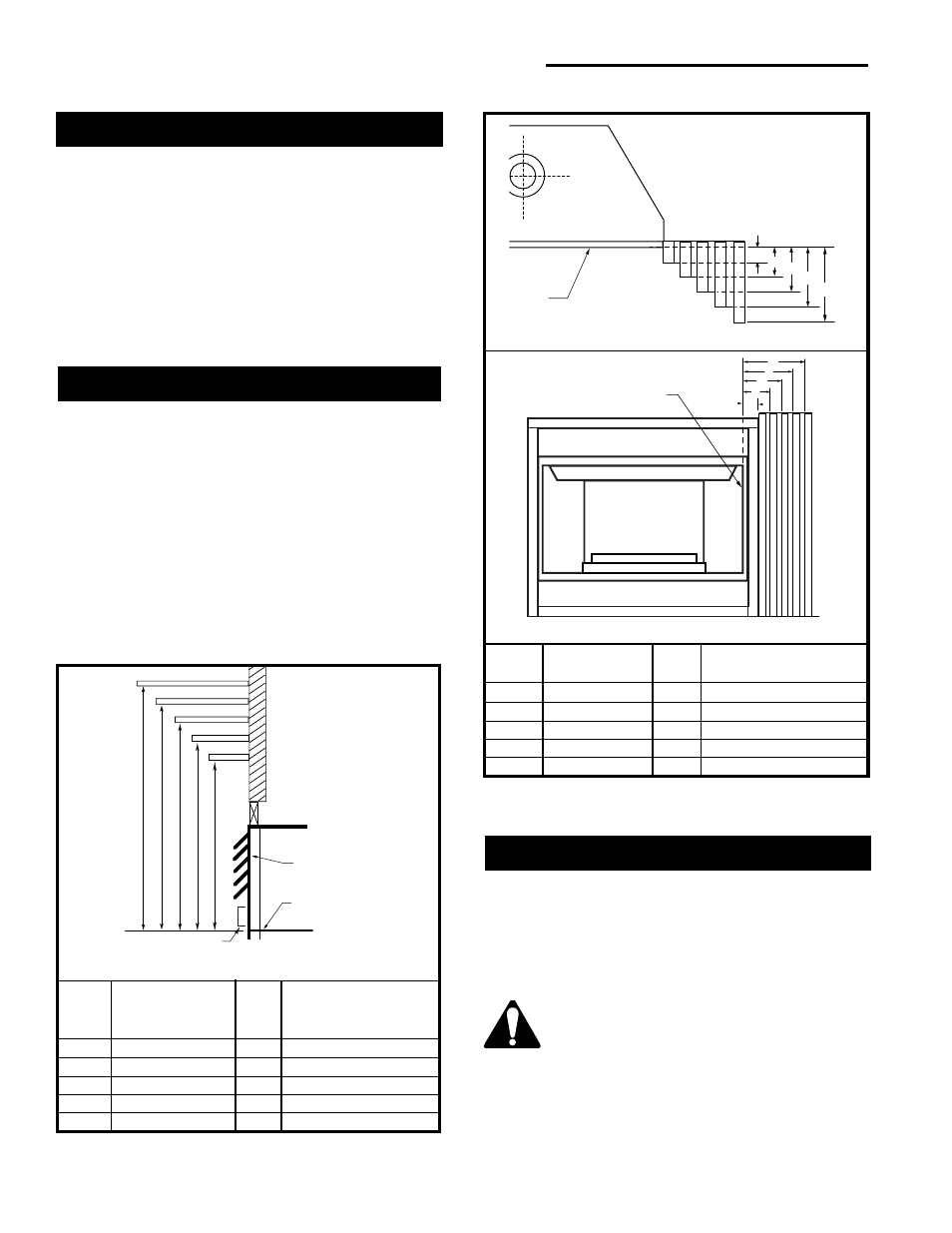

Mantels

The height a combustible mantel is fitted above the
fireplace is dependent on the depth of the mantel. This
also applies to the distance between the mantel leg (if
fitted) and the fireplace.

Refer to Figures 4a and 4b and the Mantel Charts
below them for correct mounting heights and widths.

• The distances and reference points are not

affected by the fitting of a bay window front trim kit.

• Noncombustible mantels and legs may be

installed at any height and width around the
appliance.

• When using paint or lacquer to finish the mantel, it

must be heat-resistant to prevent discoloration.

Clearance to Combustibles

Appliance

Top ............................................................ 0” (0mm)
Bottom ....................................................... 0” (0mm)
Side ........................................................... 0” (0mm)
Back .......................................................... 0” (0mm)

Venting

Concentric sections of DV Vent ................... 1” (25mm)

Non-concentric sections of DV Vent

Sides and bottom .................................... 1” (25mm)
Top .......................................................... 2” (51mm)

Although a hearth is not mandatory, one is recom-
mended for aesthetic purposes. A noncombustible
hearth which projects out 12” (305mm) or more from
the front of the fireplace is recommended.

Cold Climate Installation Recommendation:

When installing this unit against a
noninsulated exterior wall or chase,
it is mandatory that the outer walls be
insulated to conform to applicable
insulation codes.

Hearth

Mantel

Mantel Leg from Side

Ref.

Leg Depth

Ref.

of Comb. Opening

F

10” (254mm)

K

11

¹⁄₂

” (292mm)

G

8” (203mm)

L

9

¹⁄₂

” (241mm)

H

6” (152mm)

M

7

¹⁄₂

” (191mm)

I

4” (101mm)

N

5

¹⁄₂

” (140mm)

J

2” (51mm)

O

3

¹⁄₂

” (89mm)

CFM164a

CFM170

Fig. 4b Combustible mantel leg minimum installation.

O

N

M

L

K

Side of
Combustion Chamber

J

F

G

H

I

Mantel
Leg

Mantel

Leg

Black
Surround
Face

Louvre Assembly
Top

Top of Combustion
Chamber

Bottom of Door Trim

CFM146

Fig. 4a Combustible mantel leg minimum installation.

Mantel Chart

Mantel Shelf

Mantel from Top

Ref.

or Breast Plate Ref. of Comb. Chamber

Depth

V

10” (254mm)

A

19” (483mm)

W

8” (203mm)

B

17” (432mm)

X

6” (152mm)

C

15” (381mm)

Y

4” (101mm)

D

13” (330mm)

Z

2” (51mm)

E

11” (279mm)

A

B

C

D

E

V

W

X

Y

Z

Fireplace
