2-6
Cisco Catalyst Blade Switch 3130 for Dell and Cisco Catalyst Blade Switch 3032 for Dell Hardware Installation Guide
OL-13269-01
Chapter 2 Switch Installation
Installing the Switch in the Server Chassis
Step 6
Ensure that the release latch on the switch is in the open position or perpendicular to the module
(see

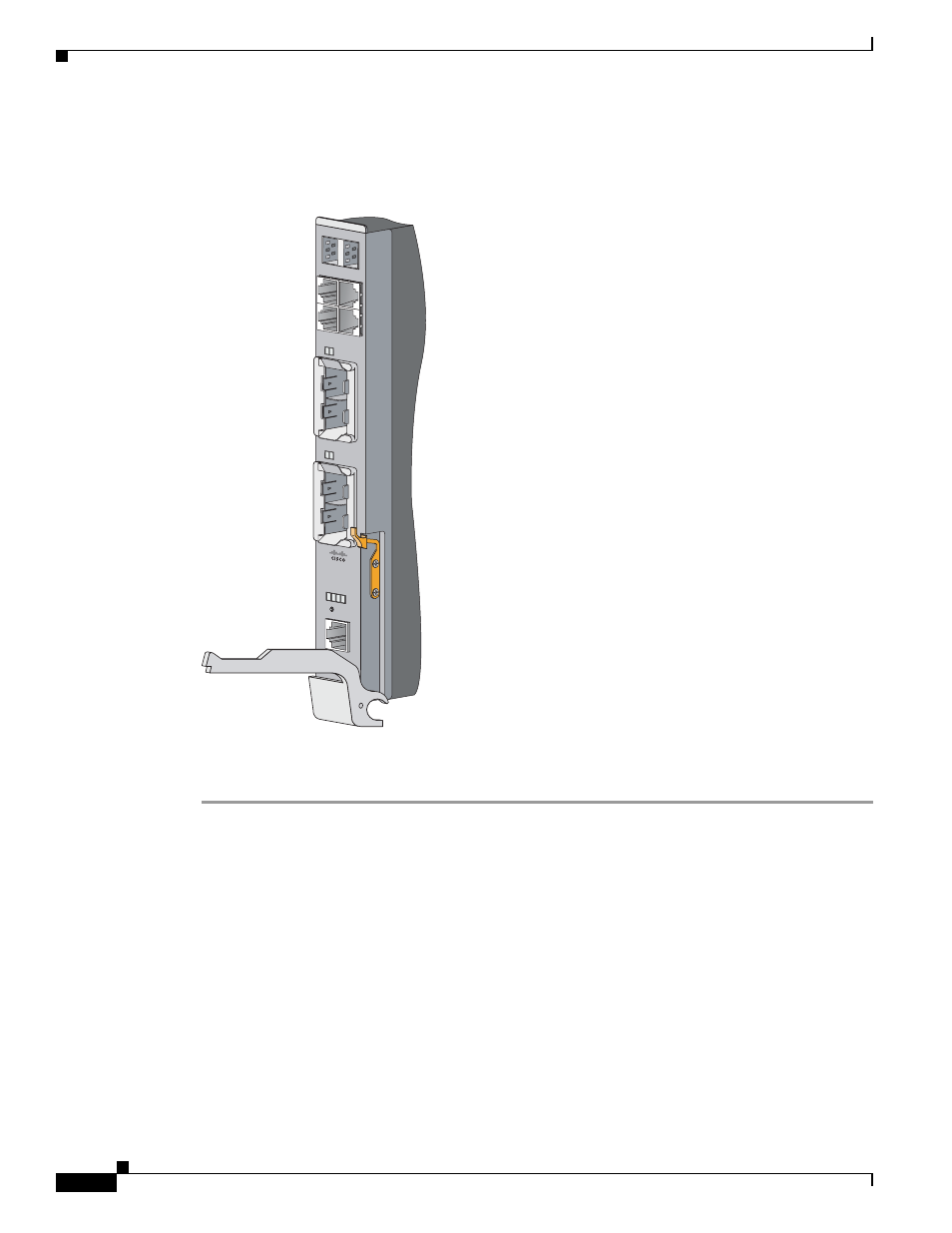

Figure 2-2
Release Latch in Open Position
Step 7
Slide the switch into the appropriate bay until it stops.
Step 8
Push the release latch on the front of the switch to the closed position.
250200
WS-CBS3130
X-S
STK
B
A
17X
18X
19X
20X
X2-1
21
22
X2-2
23
24
M
M
B
R
CONSOLE
MODE
M
S
T
R
S
T
C
K
S
Y
S
T
