Voltage Valet SP2 - Manual (Page 2)

The EuroSurge™ provides AC power and data line surge protection
for your 220-240 volt ready electronic devices while traveling in foreign
countries with 220-240 volt power sources.
SPECIFICATIONS
AC Input/Output 220-240 VAC 50/60 Hz.
AC Power Rating 8 Amps (1920 watts total)
Protected AC Outlets 2
AC Input Plug Schuko CEE 7/7
AC Output Receptacles NEMA 5/15
Joule Rating 1200
Surge Current 42,000 Amps
Response Time 1 Nanosecond
EMI/RFI Filtering 55 dB
Operation Indicators Visual
Protected Modem/Fax Line 1
Modem/Fax Connectors RJ11
Tax Impulse Filter Yes
READ ALL lNSTRUCTIONS BEFORE USING
WARNING! EUROSURGE™ OUTPUT IS 220-240 VAC
DO NOT USE WITH 110/120 VAC DEVICES!
Be sure your electronic device is 220-240 volt ready. This
information is located in the specifications section of your operating
manual or on the manufacturer’s label located on the bottom or back
of your device as “Input Voltage”. Devices with auto ranging 100-240
VAC power supplies do not have a voltage selector switch and are
220-240 volt ready. Multi-voltage devices with a 110/220 or 120/240
VAC voltage selector switch must be set to the 220-240 volt position.
OPERATING INSTRUCTIONS
AC Power Connection
1. Be sure your 220-240 volt device is turned off.
2. Plug the EuroSurge™ into the 220-240 volt foreign wall outlet.
NOTE: A grounded EuroSurge™ adaptor plug may be needed.
3. Check the indicator lights (See figure 1):
• If BOTH the PROTECTED WHEN LIT and GROUNDED WHEN
LIT lights are on, the EuroSurge™ is operating normally.
• If the GROUNDED WHEN LIT light is out, there is no ground
connection. AC power is available but the surge protection circuit
is NOT active. Try another outlet.
• If the PROTECTED WHEN LIT light is out, the circuit has
absorbed a large power surge. AC power is available but the
surge protection circuit is NOT active. Replace unit.
4. If both indicator lights are lit plug the AC power cord of your 220-
240 volt ready device into either AC power outlet on the
EuroSurge™. You may connect two 220-240 volt ready devices
simultaneously. Do not exceed the 8 amp maximum total rating.
E URO S URGE TM
CAUTION:
BOTH OUTLETS 220-240 VOLTS
WARNING: Use only with
devices that are 220-240
volt ready. Do not use with 110-120 volt devices.
PR
O TECTED
WHEN LIT
GR
OUNDED
WHEN LIT
To Modem
GR
OUNDED
WHEN LIT
To Modem
Phone Line
PR
O TECTED
WHEN LIT
Phone Line

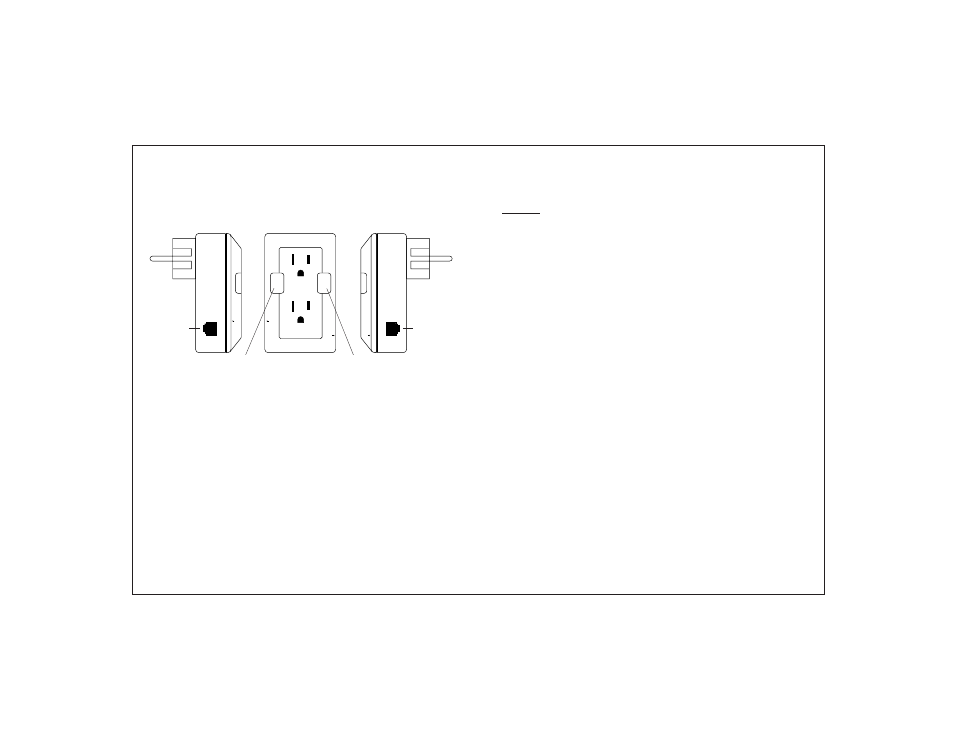

Figure 1
Phone Line
Protected When Lit Grounded When Lit
To Modem
Left Side Right Side Front
