7

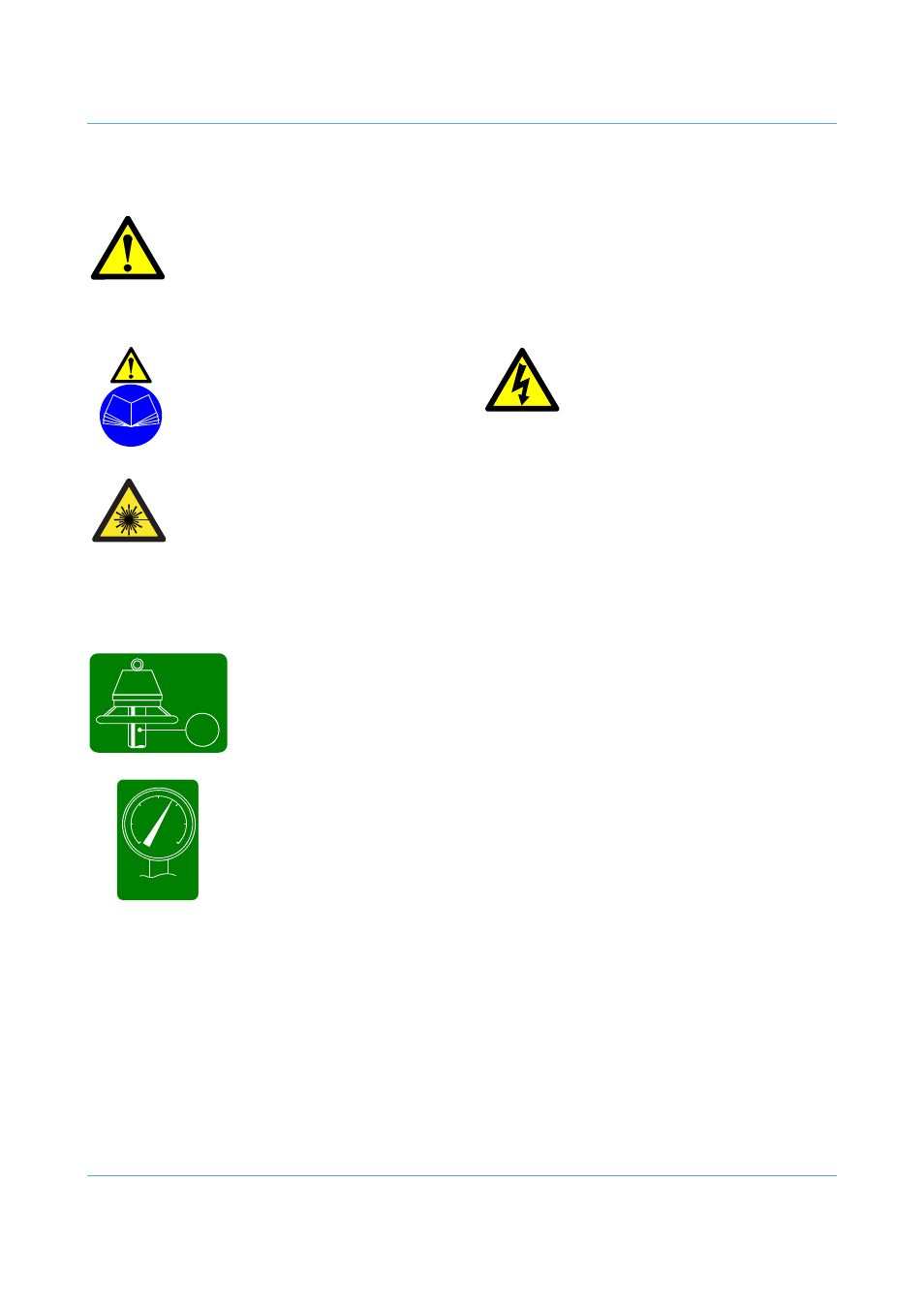

Warning symbols in this operators guide
Where there is a risk of personal injury or injury to others, comments appear highlighted by the
word WARNING!—supported by the warning triangle symbol.
Where there is a risk of damage to the product, associated equipment, process or surroundings,
comments appear highlighted by the word CAUTION!
Warning symbols on the product
Critical data
Load
Maximum load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 kg (176.4 lb)
Mass
Pedestal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144 kg (317 lb)
Trim weights (10 off) total . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0 kg (15.4 lb)
Pressure
Maximum pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13.1 bar (190 psi)
Minimum pressure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5 bar (50 psi)
Volume
Internal volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.13 L (1.62 gal)
Temperature
Operational temperature range . . . . . . . . . . . . . . . . . . . -40°C / +60°C (-40°F / +140°F)
Laser radiation
Laser class . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Class 2 laser product
On encountering the warning triangle
and open book symbols it is imperative
that you consult this operators guide
before using this product or attempting
any adjustment or repair. Where there is a risk of electric shock,
comments appear supported by the
hazardous voltage warning triangle
symbol.
Where there is a risk of exposure to
laser radiation, comments appear sup-
ported by the laser warning triangle
symbol.
80 kg
122
kg
13.1 bar
