Fusion FPR-210 + pedestal
22
Height adjustment
The column has an on-shot stroke of 770 mm (30 in.). When the automatic/manual steering knob
[10] is set to the MAN position, the column extension position can be moved by using the height
adjustment buttons on the pedestal column, or from the optional accessory height control box
(V3952-1910) (see Fig. 1 and Fig. 14).
WARNING!
1. ALWAYS collapse the moving column and engage the column lock, when
wheeling the pedestal across uneven/sloping surfaces between shots
with the full payload fitted, to prevent loss of stability (toppling hazard!).
2. Take care not to trap fingers under the steering hub or between column
elements while the pedestal height is being reduced.

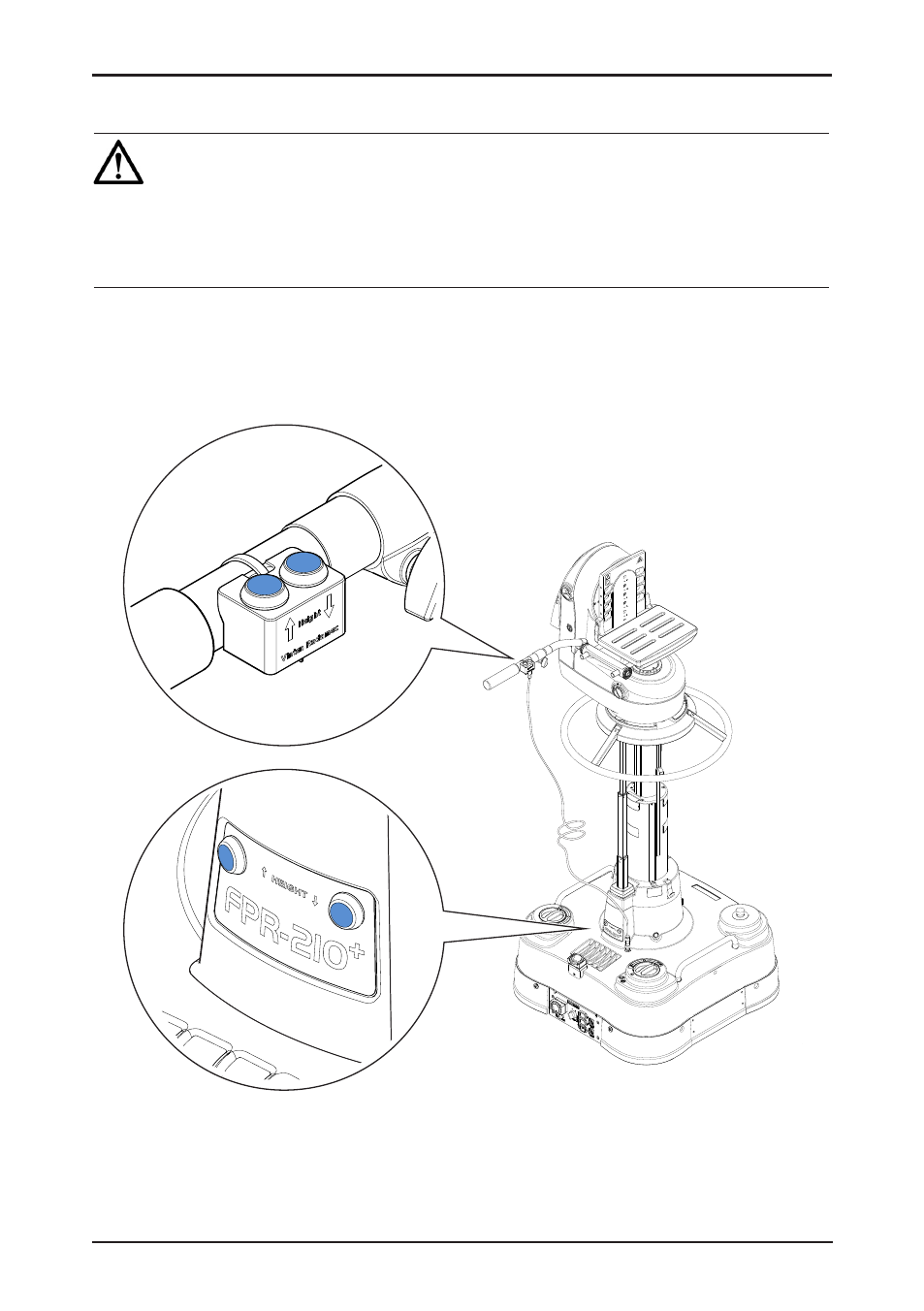

Fig. 14 Height Adjustment Buttons
