435H Technical Manual
Page 2
2.
INTRODUCTION
2.1. General

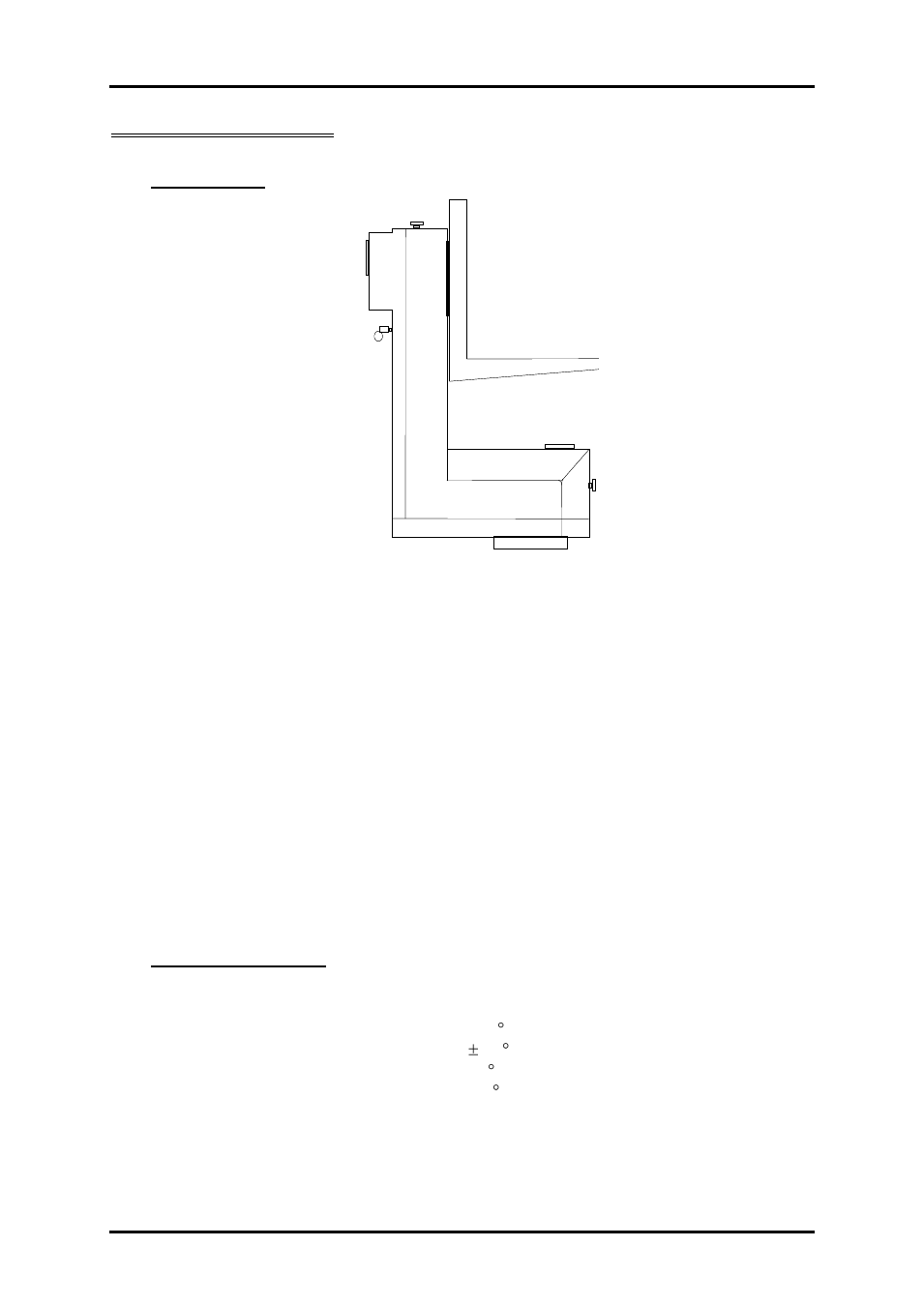

TYPE
435 H
The 435H is one in the latest generation of pan and tilt Heads designed to support
CCD Studio cameras, lenses and teleprompters. It combines high performance
remote control technology with a unique system of electronic clutches enabling it to
be instantly switched to a fully manual Head if programme needs demand.
Adjustable fluid damping is provided as standard for both pan and tilt axes to provide
a perfect feel when used manually.
The 435H head can be inverted for installations requiring suspended cameras.
APPLICATIONS
News and Current Affairs Studios
Parliaments
Manual Studio Operation
2.2. Specifications
Figures relate to both pan and tilt functions unless otherwise stated:
Mechanical travel - pan
350
Mechanical travel - tilt
45
Maximum speed
60 s-¹
Minimum smooth speed
0.1 s-¹
Repeatability
3 minutes of arc
Maximum payload
70 kg (154 lb)
Weight of Head
38 kg approx (83 lb)
