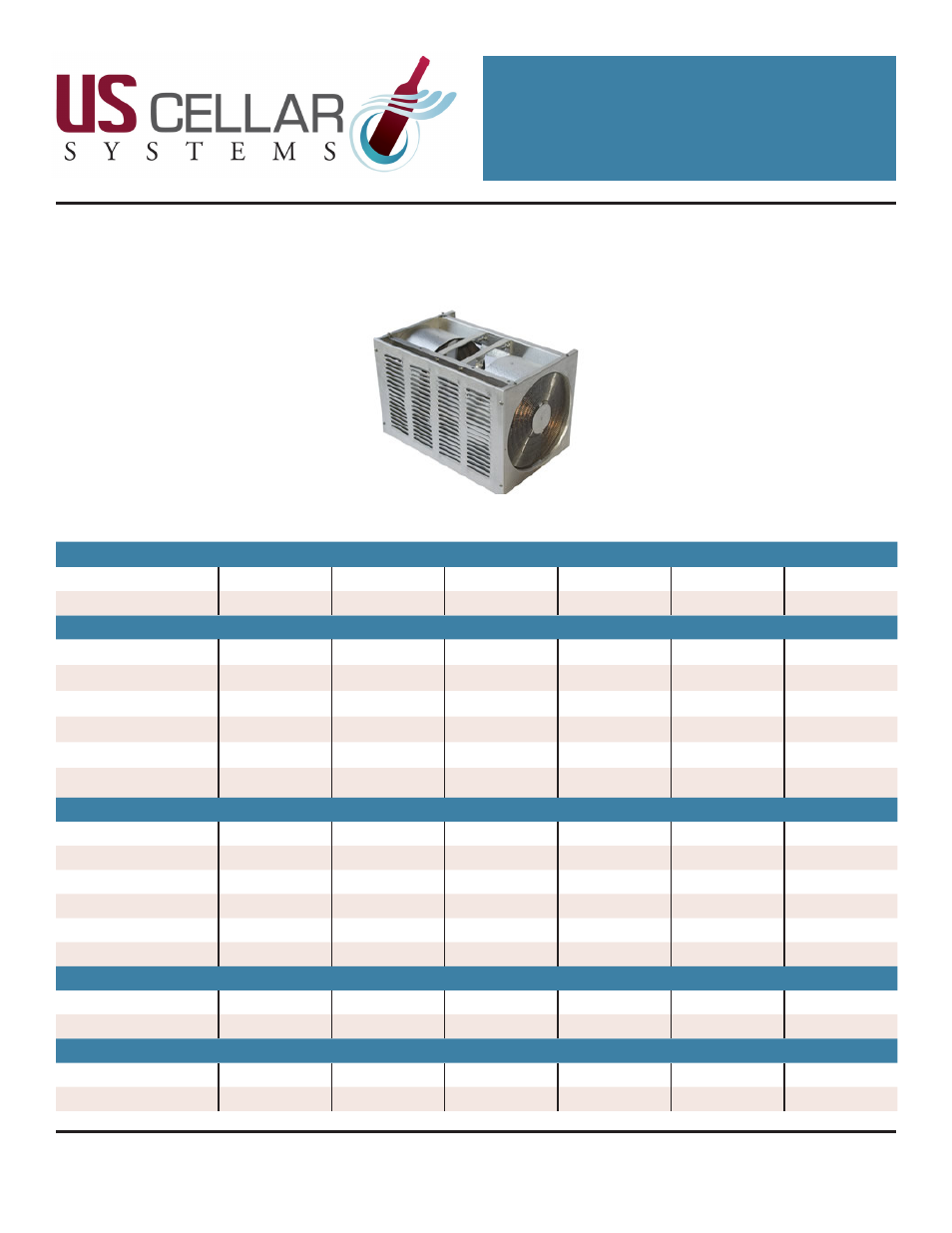

Vintage Cellars WS:SSCC8600TE User Manual
Cc series

BEST SELLERS
FEATURES
• Textured aluminum cabinet
• Hard-tempered aluminum fins
• Seamless copper tubing
throughout
• Louvered panels easily remove
for cleaning and servicing
• Thermal expansion valve
(standard) installed
• Pump-down solenoid valve
(standard) protects compressor
in the event of leaks
• Pre-installed valves eliminate
additional wiring to thermostat
• Highest cooling with least
needed installation space
• UL and NSF listed
CC SERIES
Cabinet Cooler / Air or Water Cooled
Single and Twin Evaporator Unit
with Digital Controller
US Cellar Systems / 3070 Golden Ave, Long Beach, CA 90806 / www.uscellarsystems.com
(562) 513-3017 phone and fax / [email protected]
SYSTEM INFORMATION
The Cabinet Cooler (CC) Systems are designed to provide refrigerated air to
medium temperature spaces. CC evaporators distribute air up to 10’ to the
left and right of the coil and return at
the front.
These units provide greater BTU
cooling per cubic inch of required
installation space making CC the best
choice for a cooler needing a very low
set point as with white wines.
CC evaporators available in standard
capacities from 1,800 to 4,600 BTU per
hour are used with R134a refrigerant.
Cabinet Cooler
CC1800
CC2600
CC3600
CC4600
CC6600 TE
CC 8600 TE
Max Cubic Feet
175
300
650
1,000
1,500
2,000
BTUH
1800
2600
3600
4600
6600
8600
Fan Coil
CC1FC
CC2FC
CC3FC
CC4FC
CC3FC X 2
CC4FC X 2
Length
16”
18”
20”
18”
20”
18”
Width
9.5”
9.5”
9.5”
11.5”
9.5”
11.5”
Height
9.5”
9.5”
9.5”
11.5”
9.5”
11.5”
Weight
18 lbs
20 lbs
24 lbs
26 lbs
24 lbs
26 lbs
Volts
115 V
115 V
115 V
115 V
115 V
115 V
Amps
1.5 A
1.5 A
1.5 A
1.5 A
1.5 A
1.5 A
Condensing Unit
CU18
CU26
CU36
CU46
CU66
CU86
Length
17”
17”
17”
13.8”
20.6”
17.5”
Width
12”
12”
12”
11.8”
13.9”
14.3”
Height
9.4”
9.4”
9.4”
9.7”
13.2”
12.0”
Weight
41 lbs
41 lbs
42 lbs
48 lbs
83 lbs
79 lbs
Volts
115 V
115 V
115 V
115 V
115 V
115 V
Amps MFS
15 A
15 A
15 A
20 A
30 A
30 A
System Line Set
Suction
3/8”
3/8”
3/8”
1/2”
1/2”
5/8”
Liquid
1/4”
1/4”
1/4”
1/4”
1/4”
3/8”
Lines between coils - TE Systems only
Suction
-
-
-
-
3/8”
3/8”
Liquid
-
-
-
-
1/4”
1/4”
Due to continuing engineering improvements, specifications are subject to change without notice.
