-11-

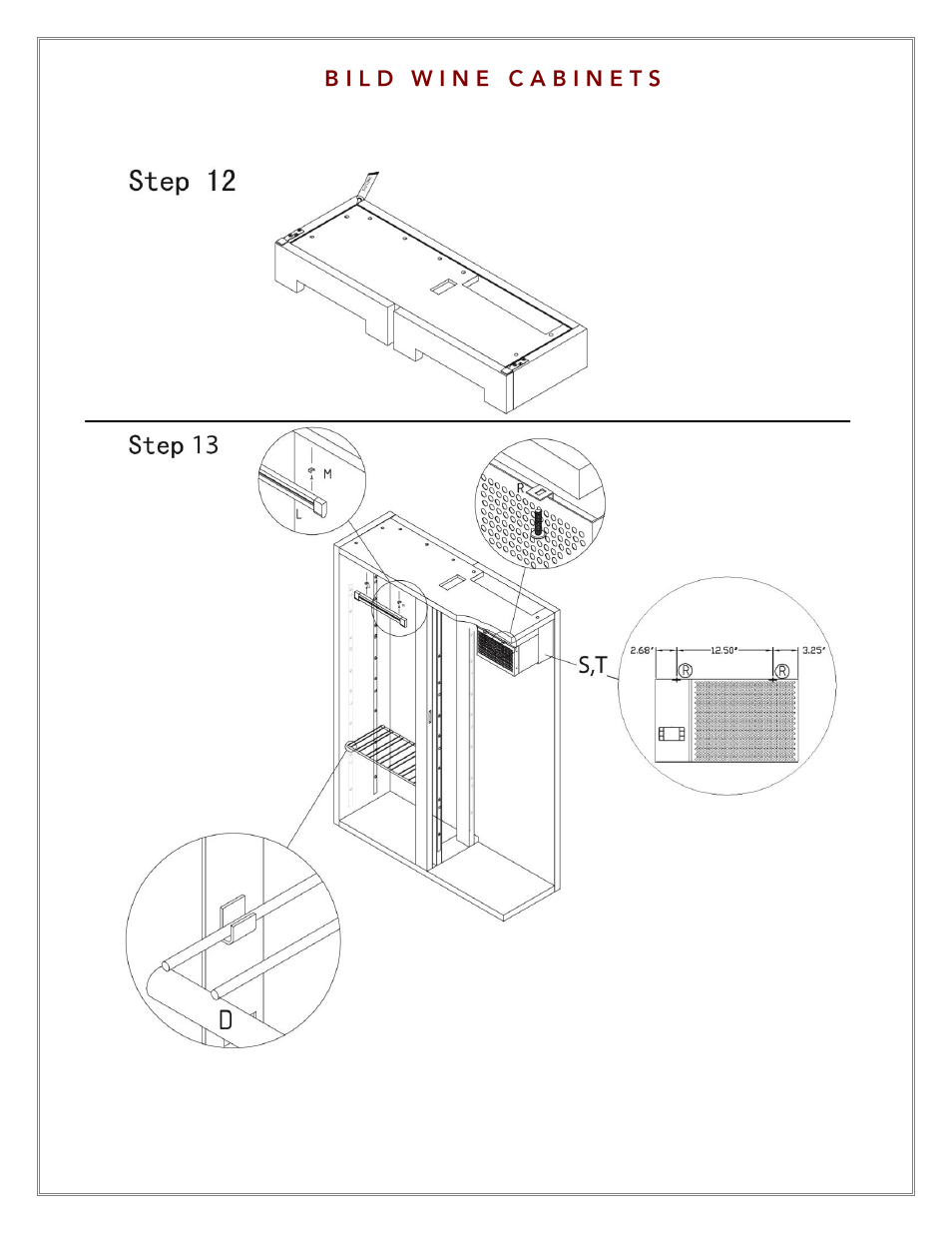

CAULKING SEAMS
GASKET OPTIONAL: CAULK EXTERIOR SEAMS AS
NEEDED WITH SUPPLIED CAULK (H).
LIGHTS,
RACKS AND
COOLING UNIT
GASKET
LIGHTS
MOUNT LIGHT ON LEFT SIDE USING
PRE-DRILLED HOLES. CAN ALSO BE
MOUNTED IN OTHER LOCATIONS.
RACKS
GENTLY TAP THE RACKS INTO THE
GROOVES ON WALLS AND POSTS. IF
FORCE IS USED RACK WELD WILL
BREAK. OPEN GROOVE WITH A
SCREWDRIVER IF TOO TIGHT!
COOLING UNIT CLIP PLACEMENT (R):
-
SLIDE CLIPS BEHIND FRONT GRILL
AND UNDER TOP COVER FLANGE IN
APPROXIMATE LOCATIONS
DIMENSIONED ABOVE.
- USING TWO PEOPLE, PLACE UNIT
INTO REAR CABINET OPENING FROM
THE FRONT OF THE CABINET. PULL
POWER CORD THROUGH THE REAR
HOLE FIRST.
- ALIGN CLIPS WITH ANCHOR HOLES IN
CABINET TOP AND SECURE UNIT TO
CABINET USING 2 (G) BOLTS
- USE BUTYL TAPE (U) TO SEAL WHERE
COOLING UNIT CONNECTS WITH
EXTERIOR OF CABINET
COOLING UNIT LOCATION OPTIONS:
1) TOP VENT (HOT AIR EXHAUST)
USE FORWARD MOUNTING HOLES.
SADDLE INSTALLATION REQUIRED.
2) REAR UNIT (HOT AIR OUT THE
REAR) PUSH UNIT SO IT SITS ON
OUTSIDE WALL. USE SECOND SET OF
HOLES IN CEILING. SADDLE IS
OPTIONAL WITH THIS
CONFIGURATION.
SADDLE INSTALLATION:
THE “U” SHAPED SADDLE (S) IS USED
FOR TOP VENTING HOT AIR. USE
SCREWS (T) TO MOUNT SADDLE
CENTERED AROUND OPENING IN
BACK WALL.
