6
(c) Reversing the Door Swing of Your Appliance
Before you begin: Tape down shelves to avoid movement during the process
The unit may have been delivered to you with the door opening from the left side (hinges on the right).
The door of this appliance can be hung to open on the left or right side. To reverse the door swing of your

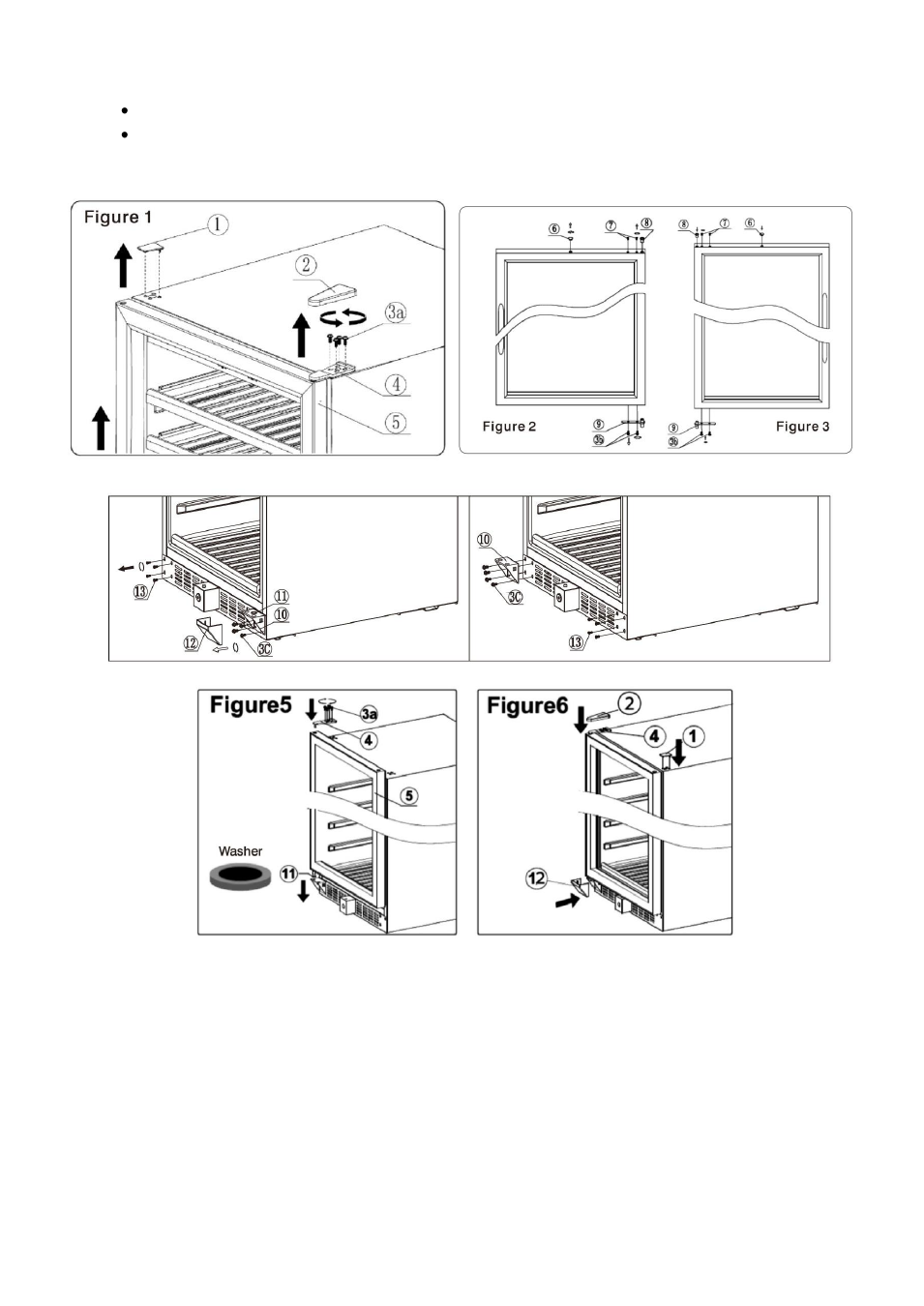

cooler and open from the opposite side, please follow the instructions and diagram below.
1. Pry up the hinge cover (1) and hinge cap (2) using a flat head screwdriver. Using a Phillips head screwdriver,
loosen the hinge screws (3a) and remove the top hinge (4). You can now lift the door (5) off the bottom hinge
and set it off to one side. Be careful not to lose the washer (11) between the bottom hinge and the door. You
will need this later. Also remove lock hole cap (6) and screws (7) and (8) from the top of the door. The lock
cap can be pried up using a small flat head screwdriver.
2. Using a Phillips head screwdriver, loosen screws (3b) to remove the hinge support rod (9) at the bottom of the
door. Rotate the door 180 ° so that the top is now the bottom and vice versa. Attach the bottom hinge support
rod (9) to the bottom corner of the door and attach with screws (3b).
