Page 2: Step 1, Step 2, Step 3 step 4 step 5 step 6

Final Assembly for stand alone unit.

For more information or to view our assembly video visit us at

First apply pre-glued Join

strip to the lower rack,

then slide the top rack

forward to engage pins.

Second, secure the

rear spacer bars of

both racks using

small finish nails.

Pre-drill nail holes

to prevent splitting.

Lower Individual Bottle Rack

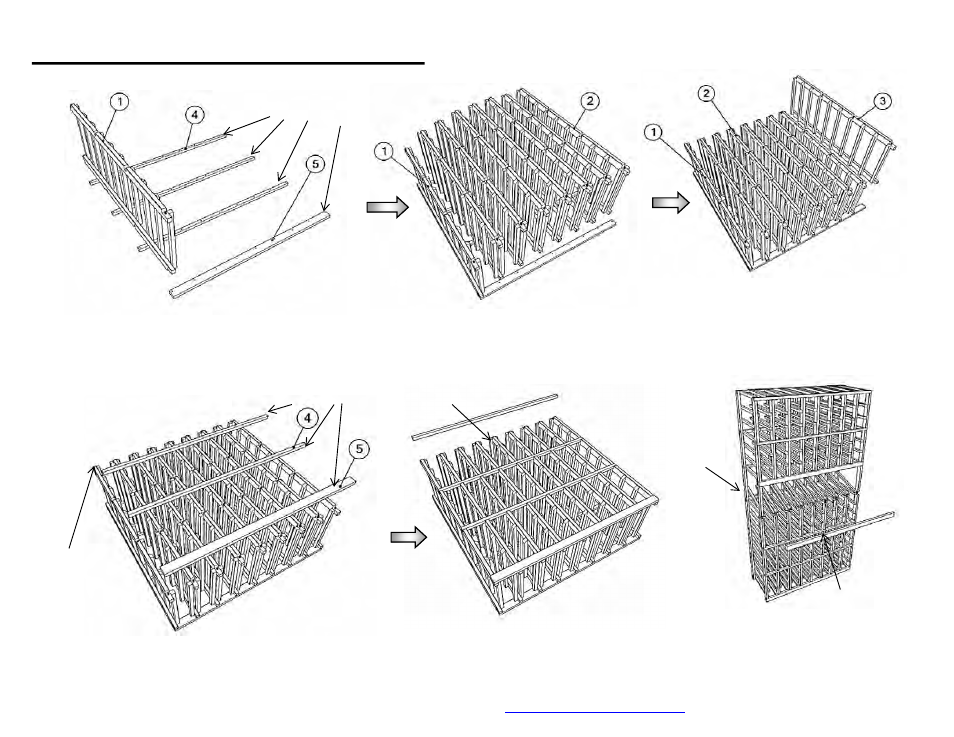

Step 1

Attach Left End Ladder to Support Bars

Step 2

Final Assembly for joining Upper and

Lower Wine Racks.

Step 3

Step 4

Step 5

Step 6

Attach Center Ladders

Attach Right End Ladder

Attach all but 1 Spacer Bar

Drops of glue in each

Connector hole.

Drops of glue in each

Connector hole

DO NOT attach a

top spacer bar to

this position at this

time.

For stand-alone rack, attach

pre-glued spacer bar here.
