Tjernlund MAC-4 Control (Discontinued) 8504088 Rev A 04/00 User Manual
Page 9
8

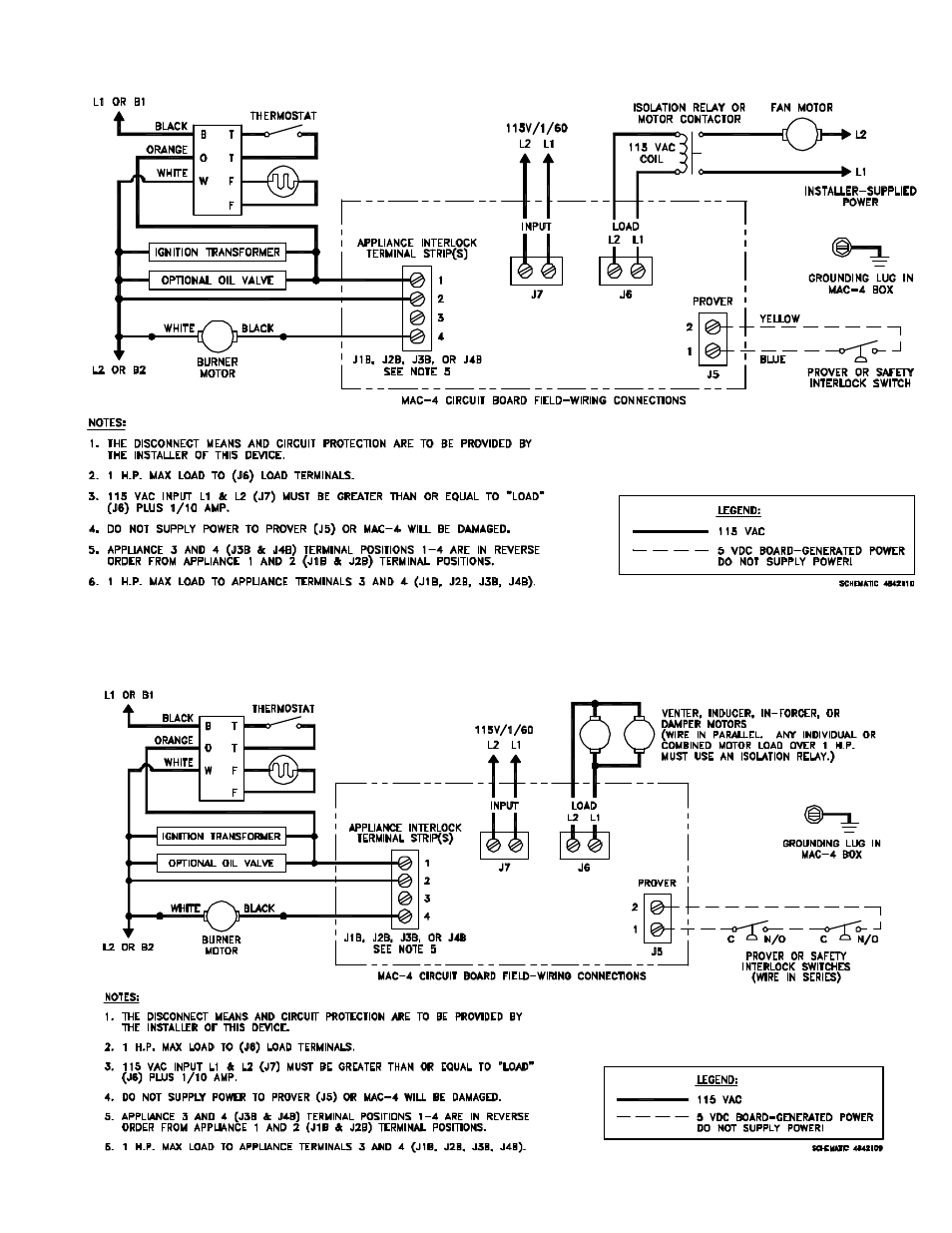

MAC-4 WIRED WITH OIL-FIRED EQUIPMENT AND MULTIPLE TJERNLUND POWER VENTERS
DRAFT INDUCERS OR IN-FORCERS (IF INDIVIDUAL OR COMBINED MOTOR LOAD EXCEEDS 1 H.P.,
SEE DIAGRAM ON BOTTOM OF PAGE 7 FOR EXAMPLE OF ISOLATION RELAY WIRING)
MAC-4 WIRED WITH OIL-FIRED EQUIPMENT AND ONE TJERNLUND POWER VENTER,
DRAFT INDUCER OR IN-FORCER (MOTOR LOAD GREATER THAN 1 H.P.)
