Tjernlund 950-1067 Relay-Timer (Old Style) Kit 8504053 Rev 4 09/96 User Manual
Page 4
COMMON WIRING DIAGRAMS
NOTE: When power is first established to the Relay/Timer, it will automatically reset into post purge. After the venter operates from 1
to 10 minutes, it will shut off and be ready for normal operation.

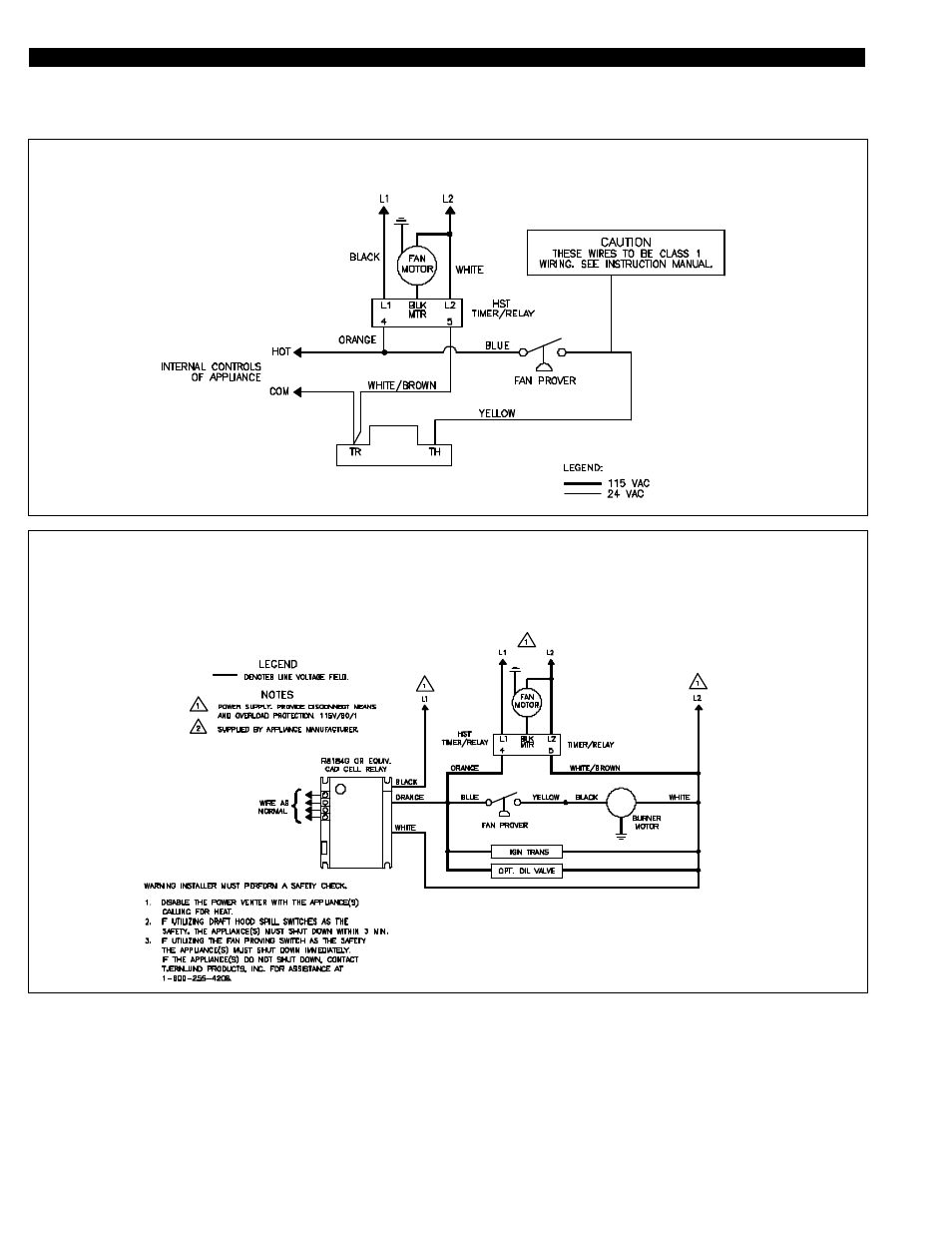

TYPICAL 950-1067 WIRING WHEN CONNECTED TO A 24 VAC GAS VALVE
TYPICAL 950-1067 WIRING WHEN CONNECTED TO A 115 VAC OIL FIRED APPLIANCE WITH FAN MOTOR
LESS THAN 6 AMPS (BURNER MOTOR NOT TO EXCEED FAN PROVER AMP RATINGS)
If you have any questions regarding installation, please contact our Customer Service Department by calling: 1-800-255-4208,
Monday-Friday, 7:30-4:30 CST.
24V GAS VALVE
