NOTE: The doors are made to accept decorative panels. The decora-
tive panels must be 3/16 inch or less in thickness. Install the
decorative door panels in the refrigerator doors before install-
ing the refrigerator in the vehicle.
1. Make two upper door panels that are 17 1/4 inches wide x 23 1/8
inches high:
- Raised panels must be centered on each door and no larger than
16 1/2 inches wide x 22 3/8 inches high.
2. Make a lower RH door panel that is 17 1/4 inches wide x 42 5/16
inches high:
- Raised panels must be centered on the lower RH door and no
larger than 16 1/2 inches wide x 41 9/16 inches high.
3. Make a lower LH door panel that is 17 1/4 inches wide x 34 5/8
inches high:
- Raised panels must be centered on the lower LH door and no larger
than 16 1/2 inches wide x 33 7/8 inches high.
4. Install the decorative door panels:

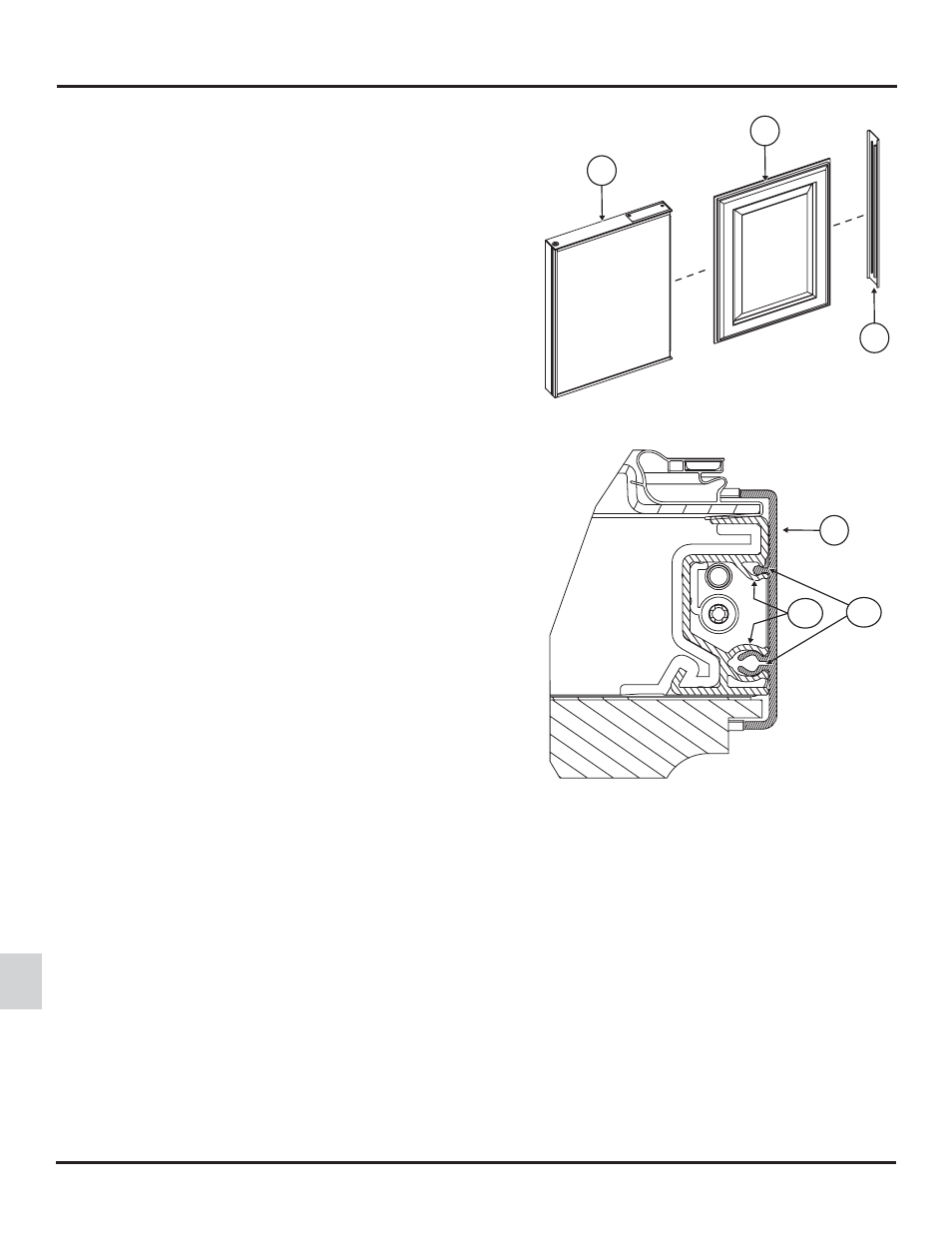

- Pull the panel retainer [37] off of each door [39] (See Art01804).
- Push a decorative door panel [38] into the slots of each door.
- Make sure that each panel retainer is correctly positioned and push the
curved snap [125] of the panel retainer [37] inside of the curved snap
[126] of the door (See Art01805).
- Make sure that the decorative door panel [36] of the lower LH refrigera-
tor door is behind the water dispenser panel.
Install Decorative Door Panels (non-metal door models)
39
38
37
Art01804
37
126 125
Art01805
