Owner’s Manual 7
Installation Instructions

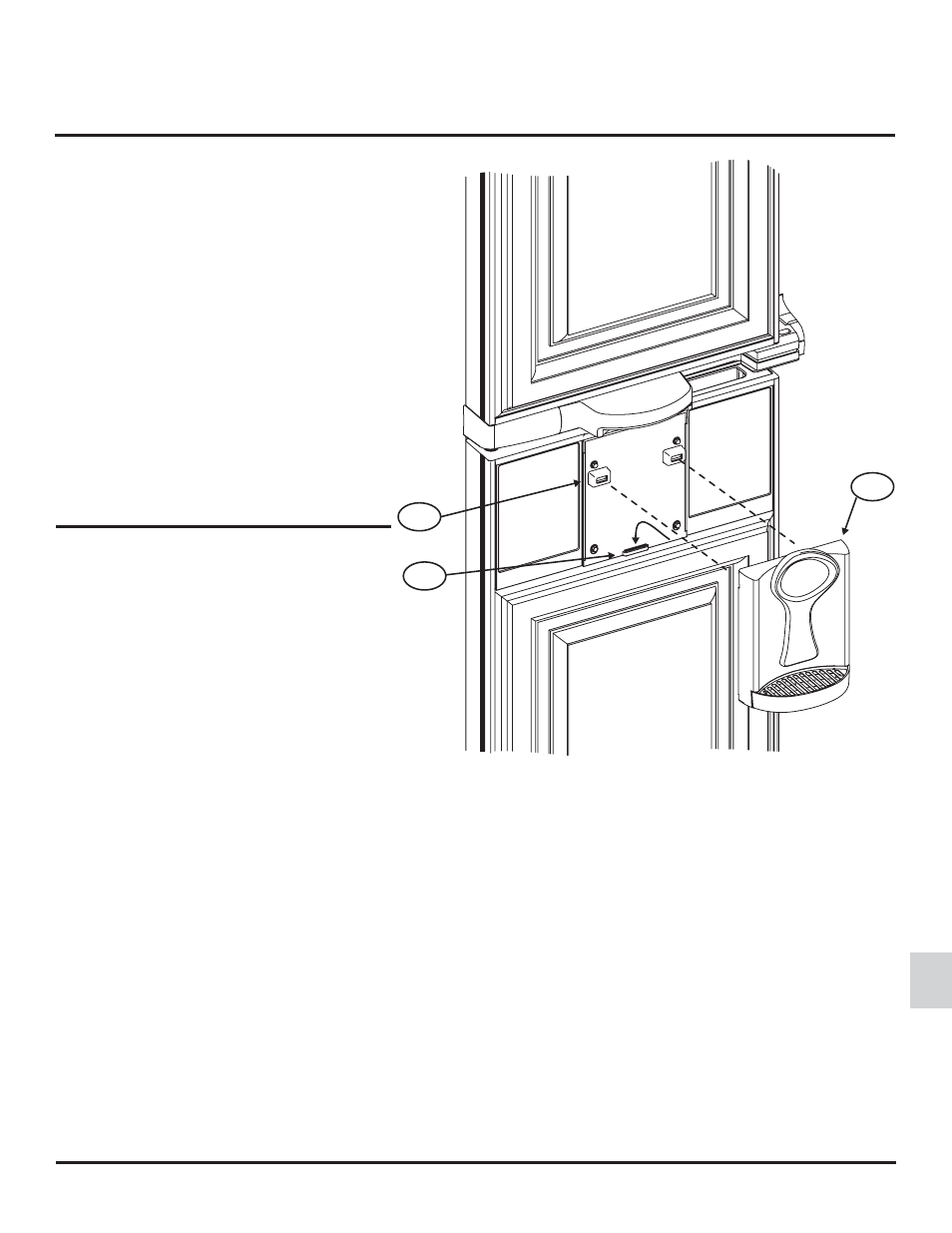

1. Install the back splash assembly (See
Art01820):
- Put the hook on the bottom of the back splash
assembly [193] down into the slot [157] of the
water dispenser panel.
- Align the two (2) rectangular mounting studs on
the rear of the back splash assembly with the
two (2) mounting lugs [196] on the water
dispenser panel.
- Using equal pressure, push both mounting
studs into the mounting lugs at the same time.
- The mounting studs should engage and lock
into the mounting lugs with a “click” sound.
Install the Water Dispenser Components (non-metal door models)
1. Install the back splash assembly (See
Art01820):
- Put the hook on the bottom of the back splash
assembly [193] down into the slot [157] of the
water dispenser panel.
- Align the two (2) rectangular mounting studs on
the rear of the back splash assembly with the
two (2) mounting lugs [196] on the water
dispenser panel.
- Using equal pressure, push both mounting
studs into the mounting lugs at the same time.
- The mounting studs should engage and lock
into the mounting lugs with a “click” sound.
Install the Water Dispenser
Components (metal door models)
196
157
193
Art01820
