NOTE: The doors are made to accept decorative panels. The decorative
panels must be 3/16 inch or less in thickness. Install the
decorative door panels in the refrigerator doors before installing
the refrigerator in the vehicle.
1. Make two upper door panels that are 17 1/4 inches wide x 23 1/8
inches high:
- Raised panels must be centered on each door and no larger than 16
1/2 inches wide x 22 3/8 inches high.
2. Make two lower door panels that are 17 1/4 inches wide x 42 5/16
inches high:
- Raised panels must be centered on each door and no larger than 16
1/2 inches wide x 41 9/16 inches high.
3. Install the decorative door panels:
- Pull the panel retainer [37] off of each door [39] (See Art01804).
- Push a decorative door panel [38] into the slots of each door.
- Make sure that each panel retainer is correctly positioned and push the
curved snaps [125] of the panel retainer [37] inside of the curved snaps
[126] of the door (See Art01805).

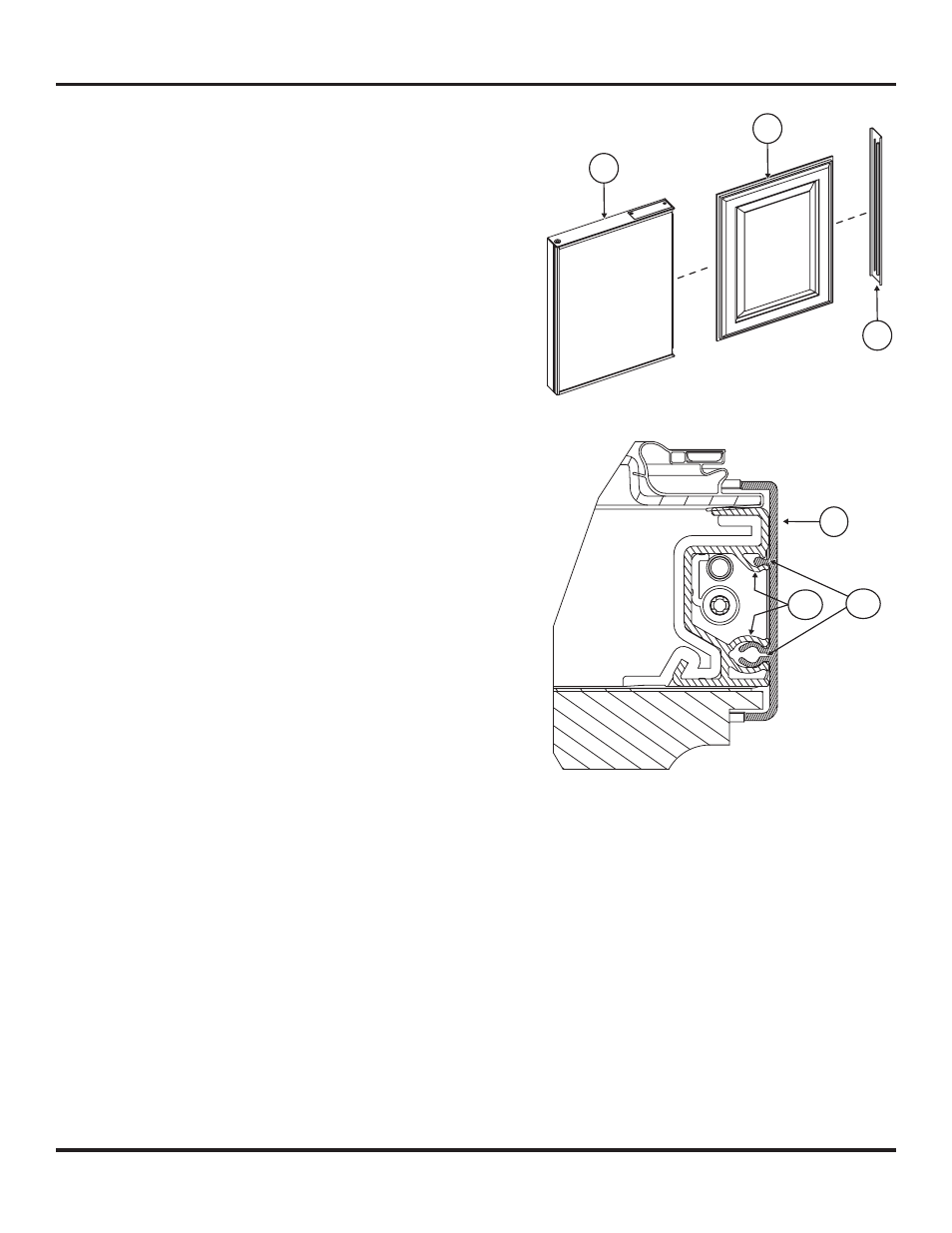

Install Decorative Door Panels (non-metal door models)
39
38
37
Art01804
37
126 125
Art01805
