Char-Griller 5050 User Manual

Page 16

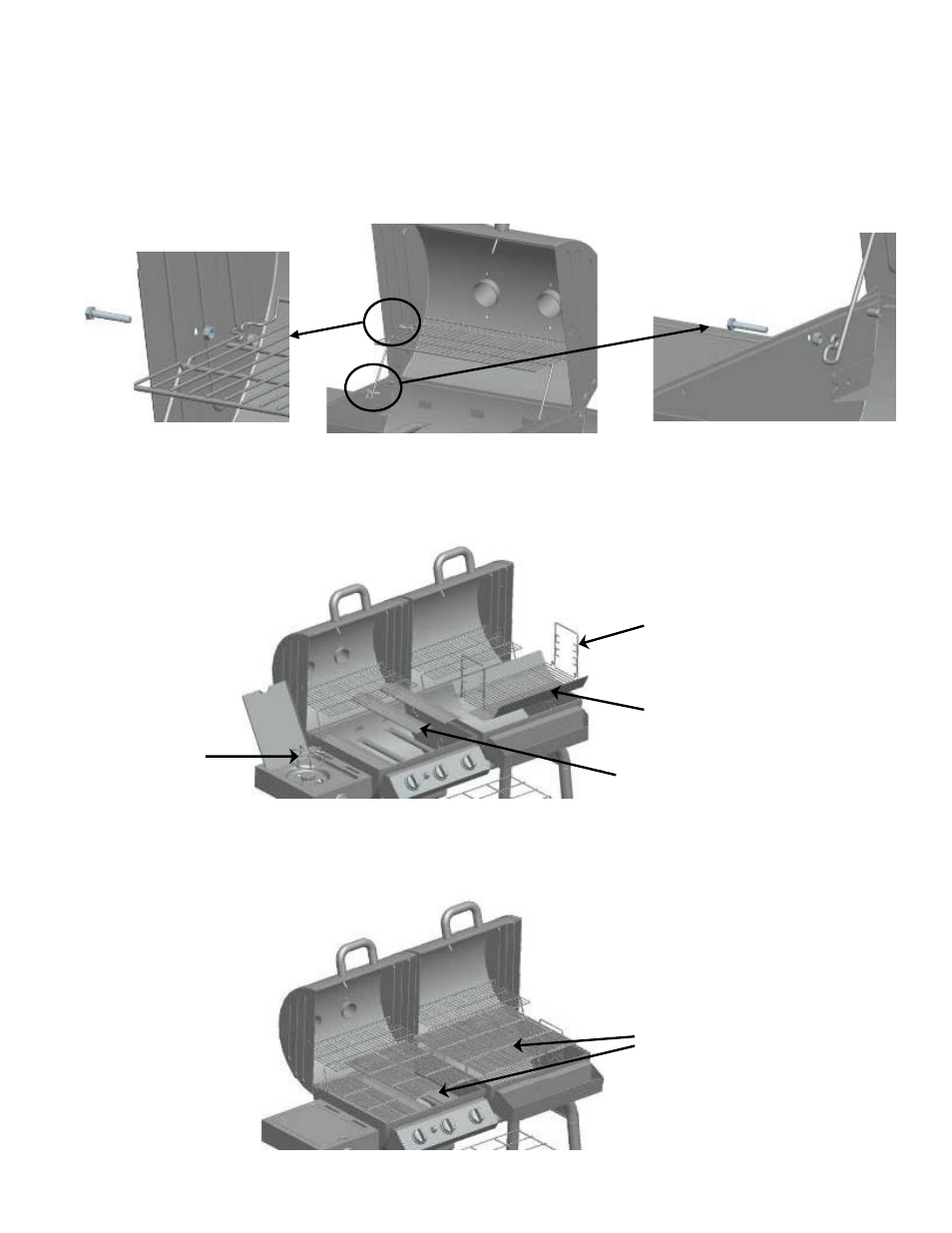

Step 18
Before attaching WARMING RACKS you must attach the warming rack pivot BOLTS to the
GRILL HOOD and BODY. Insert the 1½” BOLTS through the holes in the sides of the HOODS
from the outside and tighten the HEX NUTS on the inside of the HOODS. Insert the

1½”

BOLTS thro gh the holes in the sides of the GRILL BODIES from the o tside and tighten the

BOLTS through the holes in the sides of the GRILL BODIES from the outside and tighten the
HEX NUTS on the inside of the GRILL BODIES. Now, you can attach the warming racks to
these bolts as shown below and secure with HEX NUTS only finger tight.

Step 19

Step 19
Set the POT STAND in place over the SIDE BURNER. Next install the three (3) FLAME
SHIELDS over the BURNER TUBES then hang the FIRE GRATE/ ASH PAN from the FIRE
GRATE HANGERS on the catch tabs that are welded to the inside of the CHARCOAL GRILL
BODY sides.

Pot Stand

Flame Shields

Fire Grate/Ash Pan

Fire Grate Hangers

Step 20
Install the COOKING GRATES.

Flame Shields

Cooking Grates

page 16
