Crestron C2N-DAP8RC Digital Audio Processor with Room Control
Operations Guide – DOC. 8187A Digital Audio Processor with Room Control: C2N-DAP8RC • 51
The C2N-DAP8RC provides one CAT5 video output labeled VIDEO OUT, for
distribution of up to four video sources, and 12 RCA video outputs labeled A
through L (any of the video outputs can carry digital audio).

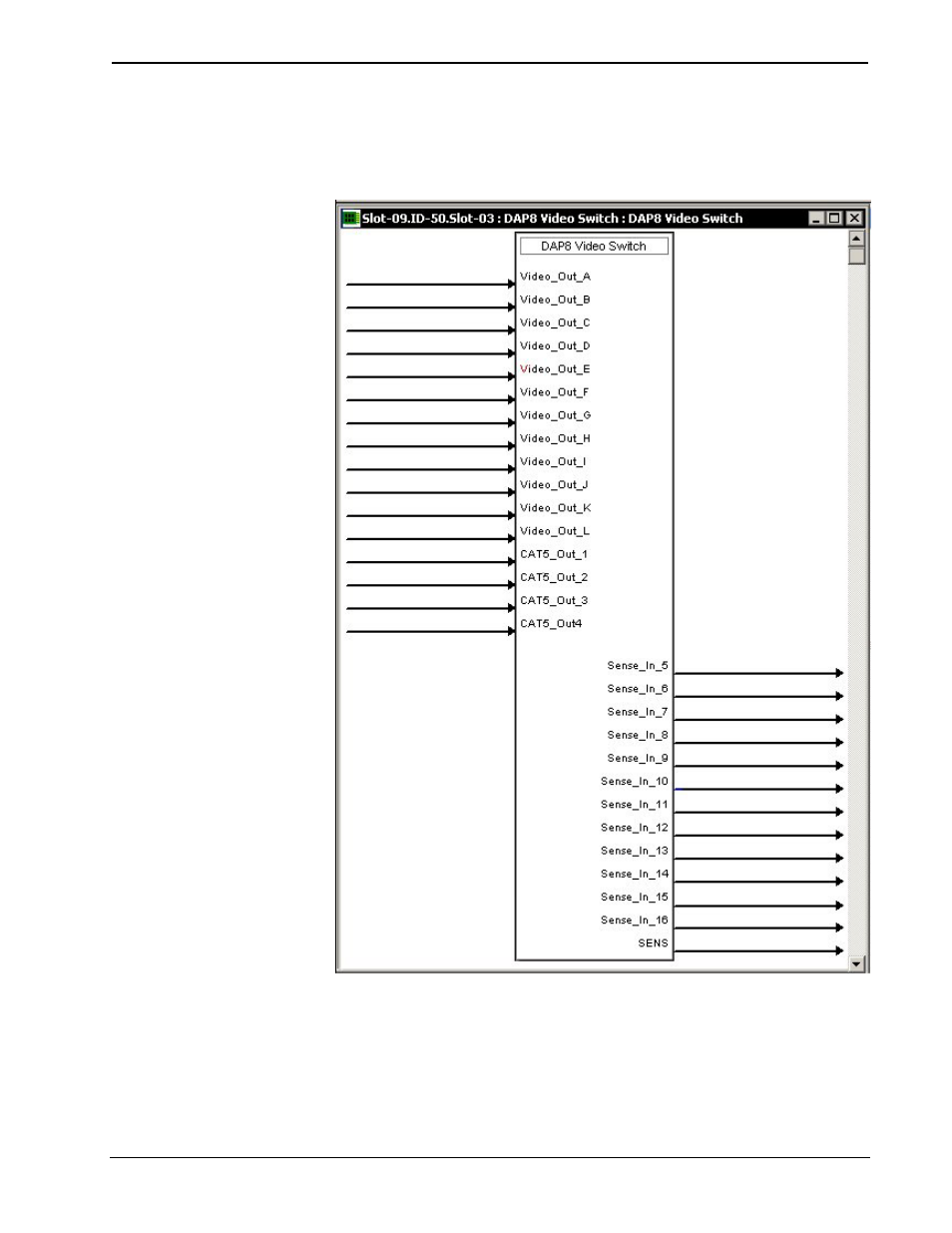

Video Switch Symbol
To select a source, each <Video_Out> analog is initialized, using decimal format, to
a value that corresponds to the source, as shown in the table on the next page.
