Exterior Lamps
Headlamp Adjustment
Correct headlamp adjustment is
extremely important. Check and
readjust headlamps at regular intervals
and when a bulb has been replaced.

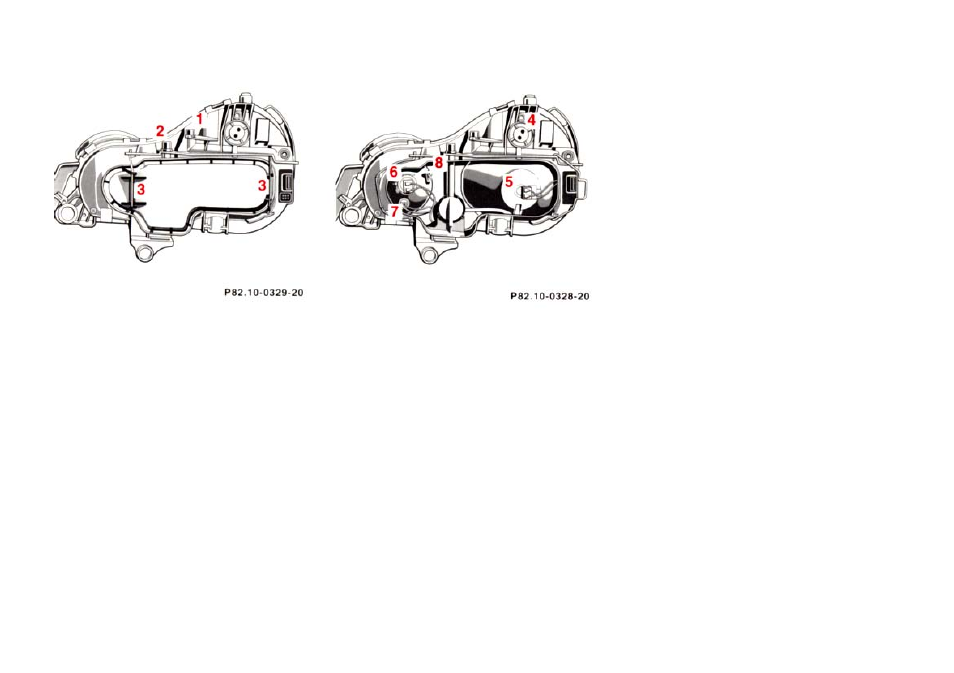

Headlamp Assembly
1 Headlamp horizontal adjustment
screw
2 Headlamp vertical adjustment
screw
3 Clamps for headlamp cover
4 Bulb socket for turn signal lamp
5 Electrical connector for low
beam headlamp bulb
6 Electrical connector for high
beam headlamp bulb
Xenon lamp (optional) ignition
module for low beam
7 Bulb socket for parking and
standing lamp
8 Level for headlamp vertical
adjustment
