Controls in detail
Automatic climate control

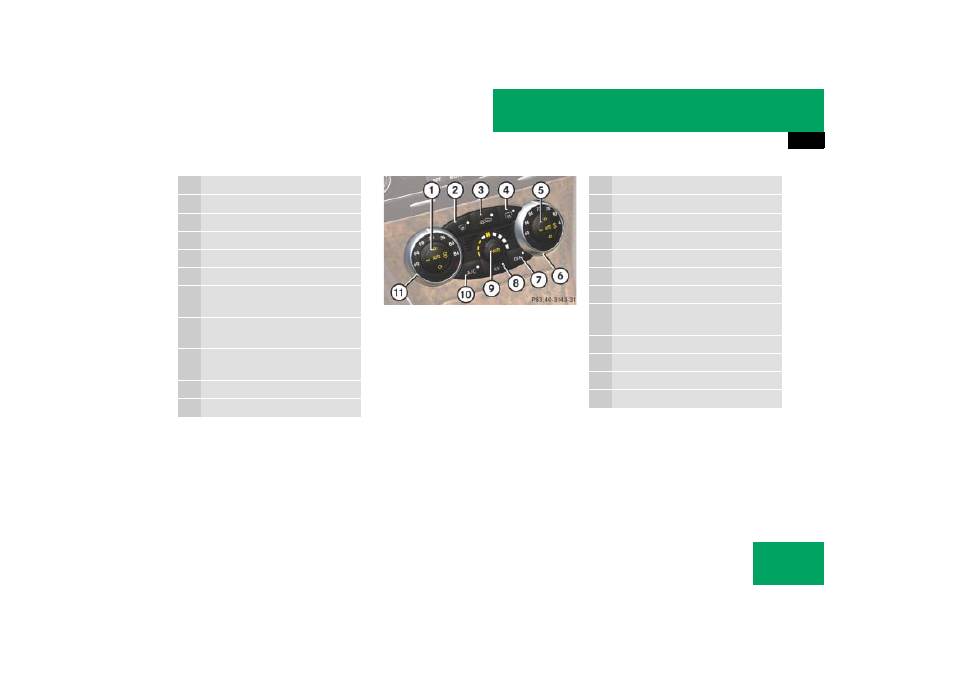

Automatic climate control panel
Item
1 Defroster air vents, fixed
2 Left center air vent, adjustable
3 Cockpit air vent, fixed
4 Right center air vent, adjustable
5 Right side air vent, adjustable
6 Air volume control for right side air
vent
7 Air volume control for center air
vents
8 Air volume control for left side air
vent
9 Automatic climate control panel
a Left side air vent, adjustable
i For draft-free ventilation, move the sliders
for center air vent and side air vents to the mid-
dle position.
Item
1 Air distribution, left
2 Front defroster
3 Air recirculation
4 Rear window defroster
5 Air distribution, right
6 Temperature control, right
7 Automatic climate control on/off
(entire system)
8 Residual heat/ventilation
9 Air volume control
a AC cooling on/off
b Temperature control, left
