Operational position
X Turn the crank handle clockwise.
Before placing the jack back into the vehicle
tool kit:
X Fully collapse the jack.
X Fold in the crank handle (storage position).
Spare wheel
G Observe Safety notes, see
page 355.
The spare wheel is located underneath the
trunk floor (sedan)/cargo compartment floor
(wagon).
X Removing: To access the spare wheel,
proceed as described in the section on the
vehicle tool kit (
Y page 290).
Vehicles with Minispare wheel
X Sedan: Remove the luggage box
( Y page 294).

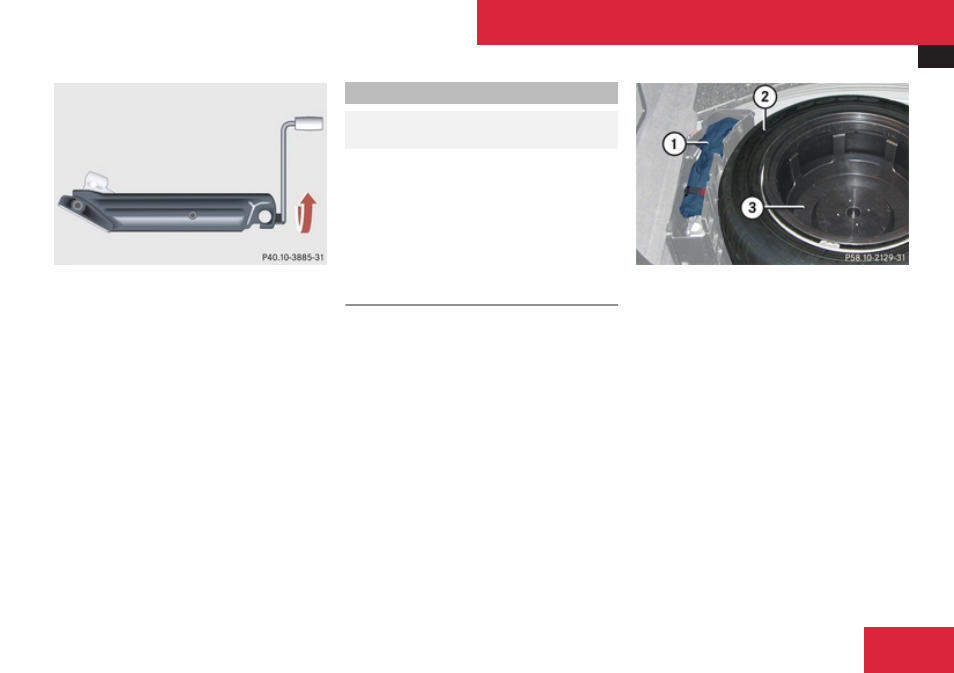

Example illustration (sedan)
1
Tool bag and jack
2 Spare wheel
3 Luggage bowl
X Remove luggage bowl 3 by turning it
counterclockwise.
X Remove spare wheel 2 .
For information on mounting the spare wheel,
see “Flat tire” (
Y page 355).
Storing the spare wheel after use
X Place spare wheel 2 in the spare wheel
well ( Y page 293).
X Secure spare wheel 2 by turning luggage
bowl 3 clockwise ( Y page 293).
