Make sure the cable clamps do not touch
any other metal part while the other end is
still attached to a battery.

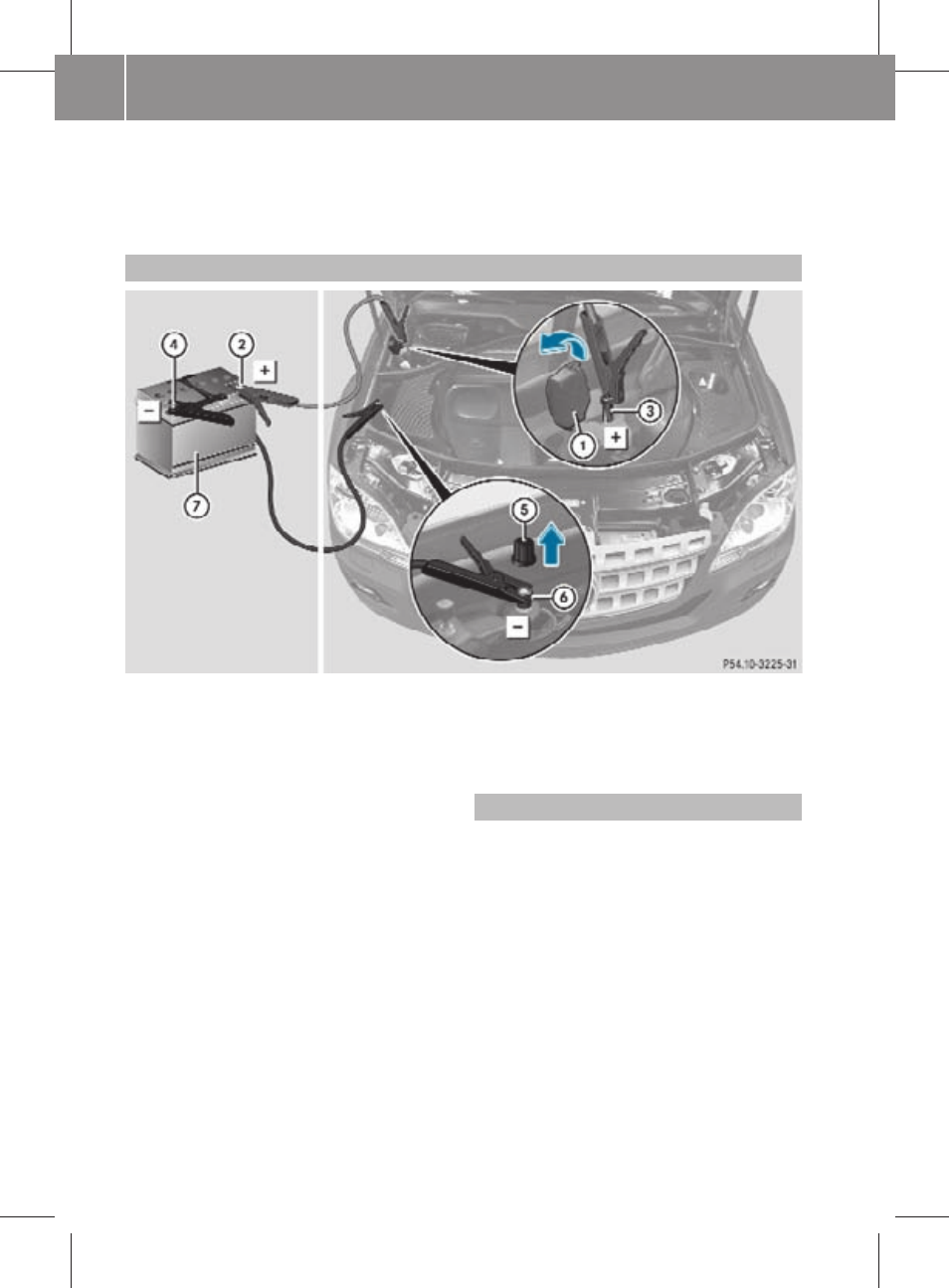

Connecting the jumper cables
Your vehicle is equipped with two jump start
terminals in the engine compartment.
Position C represents the charged battery of
another vehicle or an equivalent starter pack.
X Make sure the two vehicles do not touch.
X Switch off all electrical consumers.
X Engage the parking brake.
X Make sure the automatic transmission is in
park position
P.
X Open the hood, see Operators' Manual.
X Flip up cover : of positive terminal = in
direction of arrow.
X Connect positive terminal ; of charged
battery C with positive terminal = with a
jumper cable. Clamp the cable to positive
terminal ; of charged battery C first.
X Slide cover A from negative terminal B in
direction of arrow.
X Connect negative terminal ? of charged
battery C with negative terminal B with
a jumper cable. Clamp the cable to
negative terminal ? of charged battery
C first.
Starting the combustion engine
X Start the engine of the vehicle with the
charged battery and run it at an engine
speed slightly above idle speed.
X Make sure the automatic transmission is in
park position
P.
X Starting the jump start process with
the SmartKey: To start the charging
process for the high-voltage battery, turn
the SmartKey in the starter switch first into
starting position
3.
X Turn the SmartKey back into ignition
position
2.
X Starting the jump start process with
KEYLESS-GO: Depress the brake pedal
during the starting procedure.
