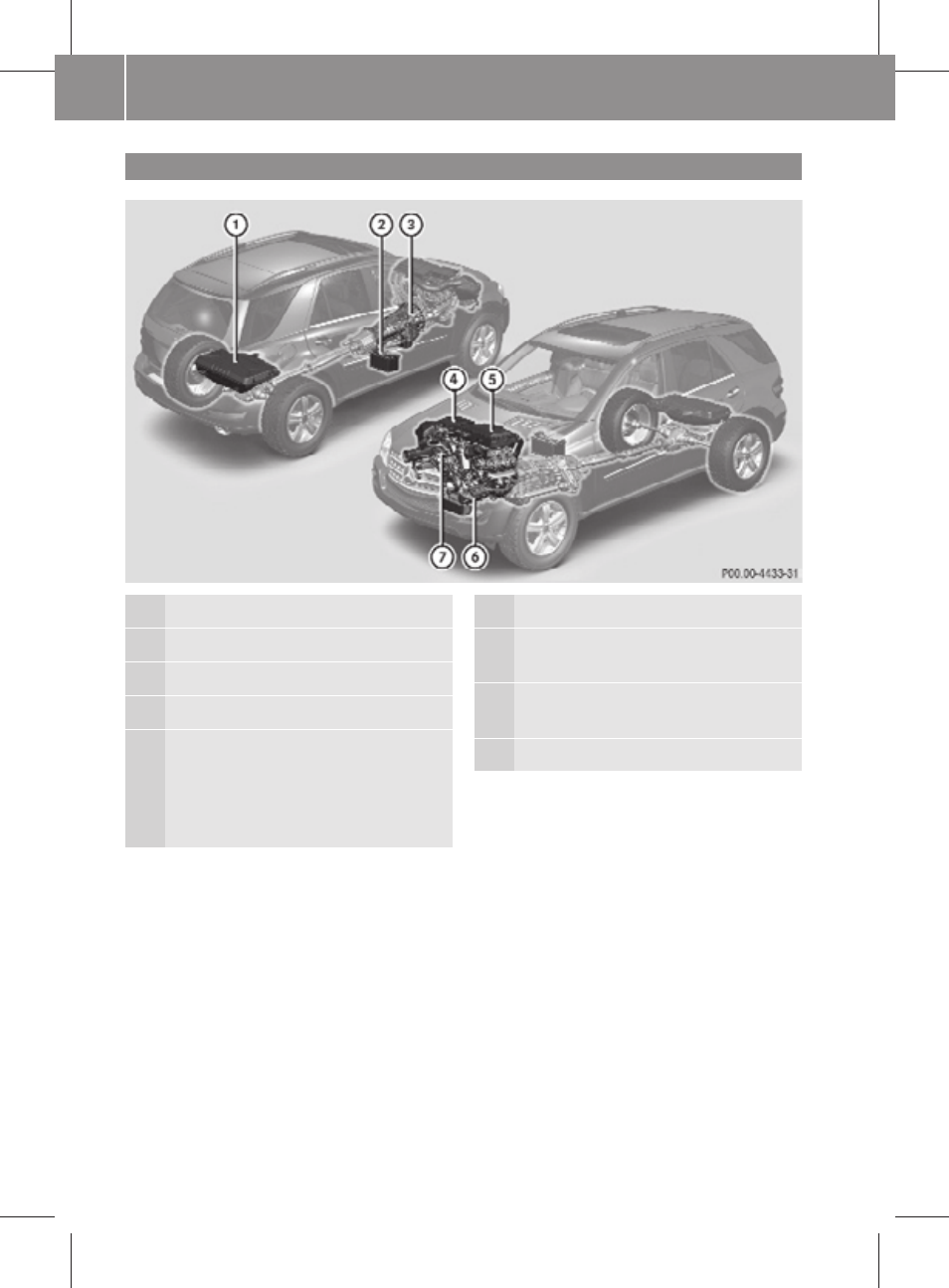

Overview HYBRID system
Component
: High-voltage battery
; 12-volt battery
= Hybrid transmission
? Voltage transformer
(transforms the voltage of the 12-volt
battery and the high-voltage battery in
both directions for best possible
power management)
Component
A Power electronics
(control the high-voltage system)
B Electric refrigerant compressor for
the climate control system
C Combustion engine
12
