Red Camera Mode:
This Mode will allow you to correctly view the image on a Red Camera such as a Red One. Red
cameras use a proprietary resolution coming from their HDMI output that normally only worked with
their brand of monitors. Our Monitor can automatically adjust to their proprietary and display the
image in full screen without cutting off the camera info.

Zoom 1, 2, 3&4:
These modes will allow you to Zoom in Digitally up to 4X on an image to check the focus and
exposure. This feature will work with low resolution but works best with digital High resolution inputs
such as HDMI or SDI 1080P.

A video detailing how to use the Image Size feature can be viewed online

www.YouTube.com/ManhattanLCD

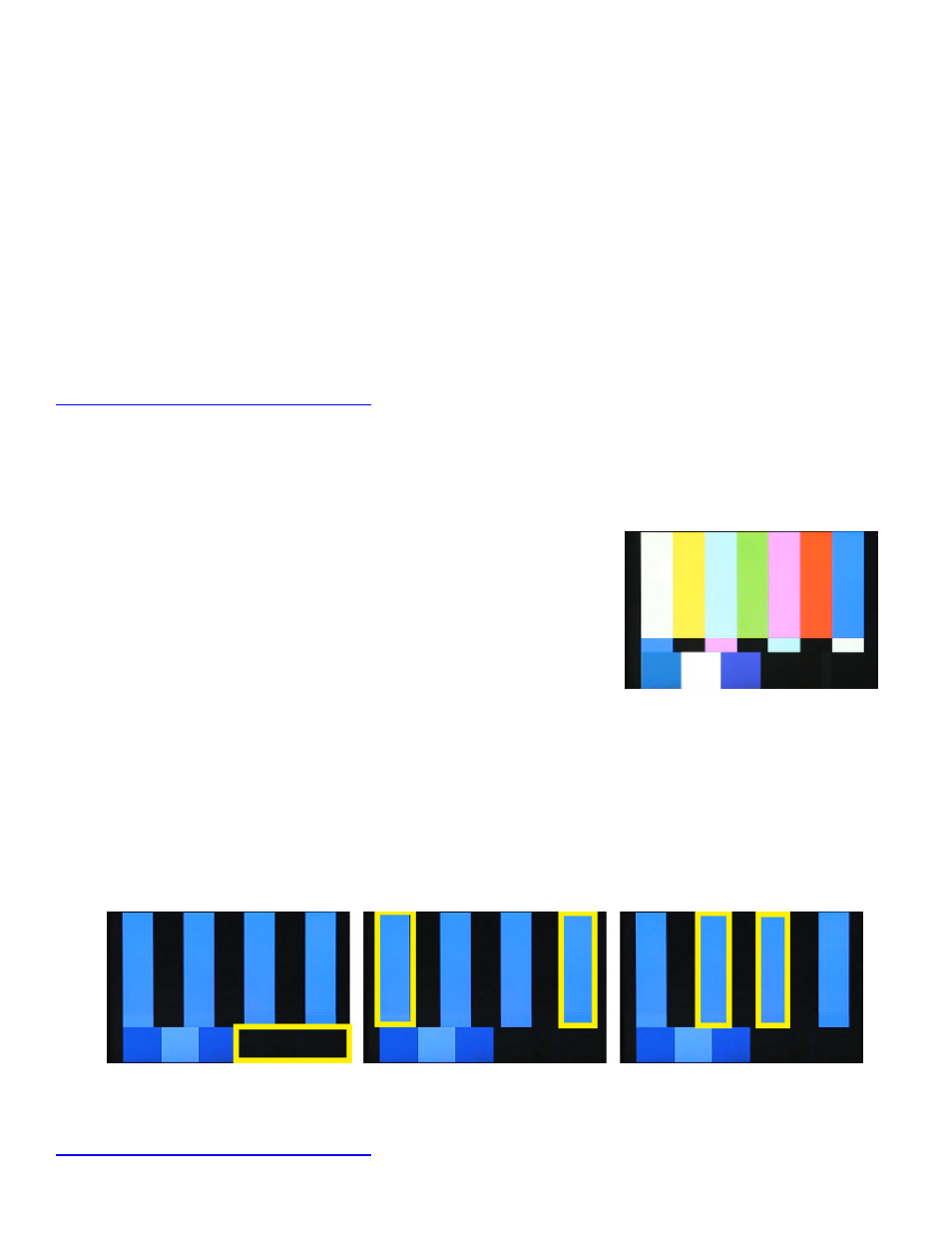

Blue Gun Calibrating:

This feature will allow you to calibrate the monitor to your particular camera by only allowing the
monitor to display information from the blue channel of the standard RGB color scheme. There are
many ways to accomplish this task and the monitor is usually very
close to perfect right out of the box so usually only minor
adjustments are required. Please follow these steps:

Send the Monitor SMTP Color Bars from the Camera or

signal generator. (Picture To Right)

Activate the Blue Gun feature of the monitor. Press MENU

scroll to the Advanced Tab and turn the Blue Gun slider to
the ON position hit MENU again to activate it. If you have a
HD089BV2 or HD089CV2 you can assign a hotkey to this feature under the setup tab.

Use the menu system or Quick Access Button on remote to set Brightness Up/ Down until the

plunge bar is displayed correctly. It will be correct when only 1 grey bar is visible. (Left Picture
Below)

Set the Color Up /Down until the far Left/ Right blue columns are the same color. (Middle

Picture Below)

Set the Tint/ Hue Up / Down until the middle Left/ Right blue columns are the same color.

(Right Picture Below)

video detailing how to use the Blue Gun feature can be viewed online
