4. Product Description SATA II HDD Canister KISS DA 435
4.3. Front Panel Features

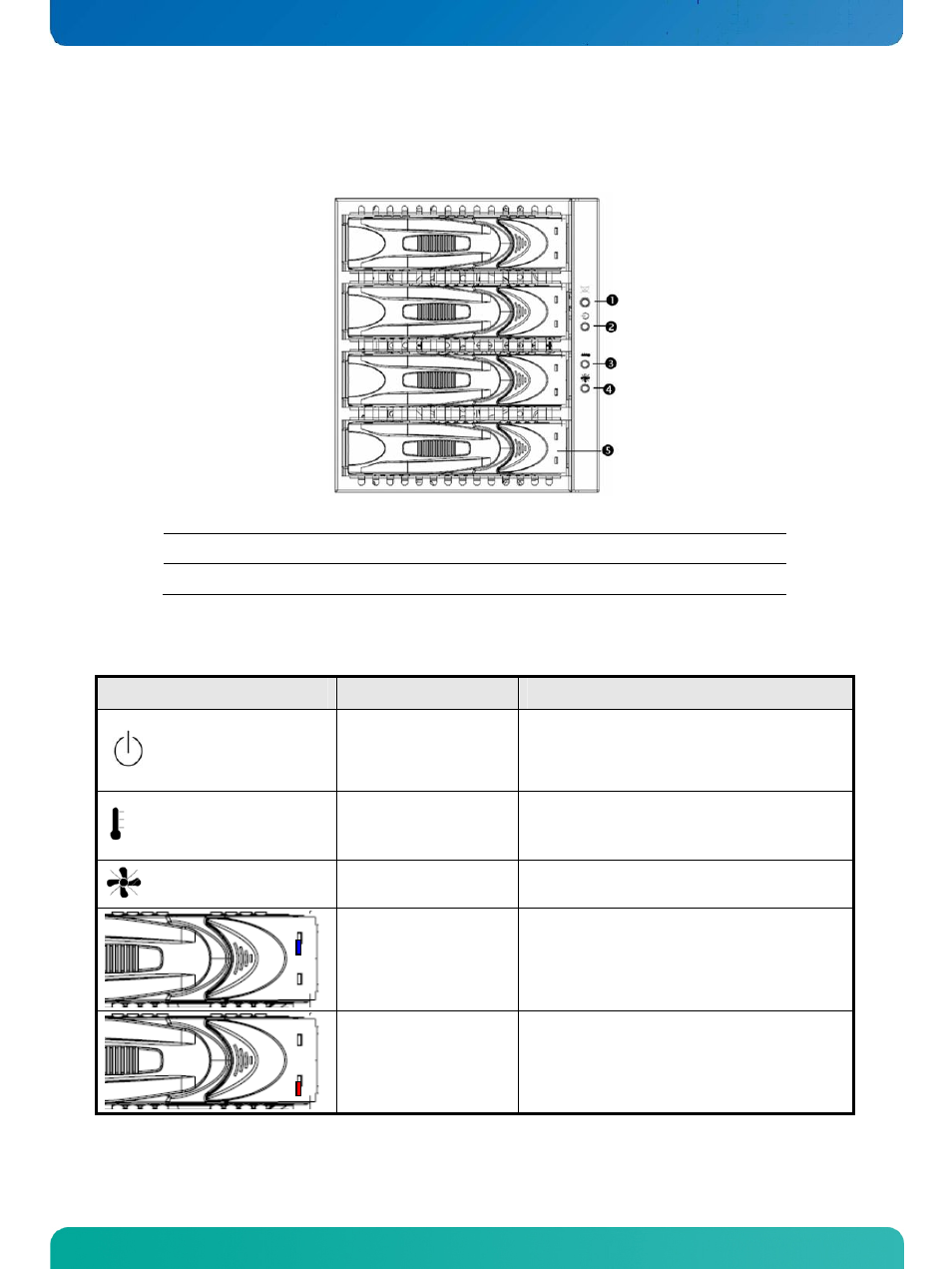

Fig. 1: front view of 3 to 4 canister
n Buzzer mute o Power LED p Over Temperature LED
q Fan Fail LED r Drive tray
4.3.1. LED indicators
LED NAME Color definition Behavior
Power LED
Blue
On: when system is powered on
Off: when system is powered off
Over Temperature LED
Red
On: when system temperature exceeds threshold
temperature
Off: when system temperature is normal.
Fan fail LED
Red
On: when system detected fan abnormality
Off: when fan is normal operation
HDD Activity/Ready: Blue
color
On: when HDD is inserted and detected.
Flash: when accessing HDD
Off: when there is no HDD or no detection.
HDD Failure:
Red color
On: when HDD is detected as failure by host
Flash: RAID rebuilding
Off: when there is no HDD or normal
(only supported on HBA)
