4.5
System Monitor and Control Connector JP11
This backplane is provided with a connector for system monitor and control signal interfacing
to external devices. This is a 26-contact, male, double pin-row connector. The system manage-
ment bus (IPMB0), the power supply monitor and control signals, and push button reset
(PRST#) signal are all implemented on these connector.

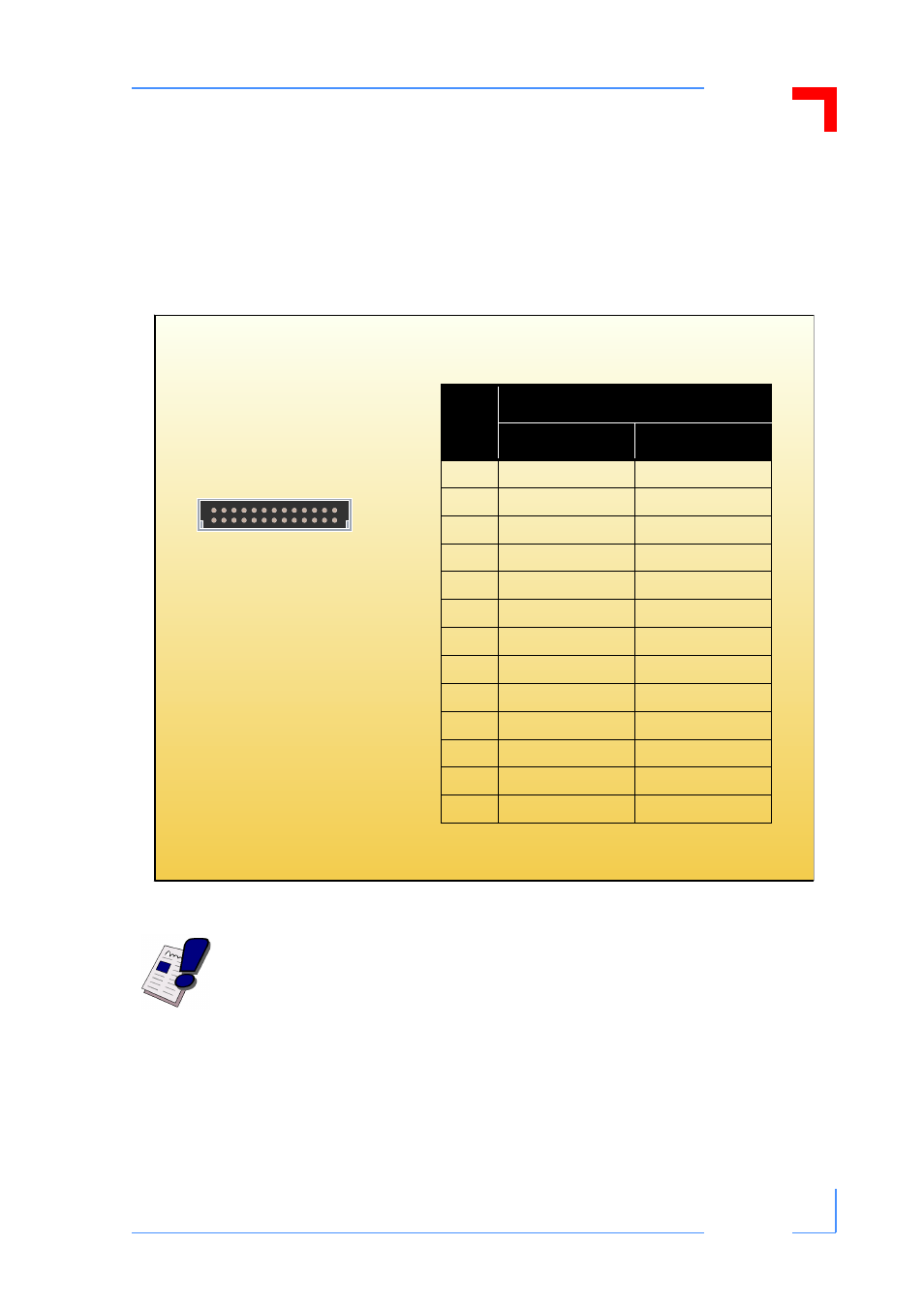

Figure 7: Orientation and Pinout of the SMC Connectors JP11 and JP12
Note...
The signal pinout assignment is a function of the power supply actually utilized
with this backplane. Refer to the corresponding power supply documentation for
the applicable signal pinout.
1
13
b
a
JP11
Table 8: Pinout of Connector JP11
Pin
Function
Pin Row A
Pin Row B
1
IMPB0_SCL
GND
2
IMPB0_SDA
IMPB0_PWR
3
N/C
GND
4
N/C
GND
5
N/C
GND
6
INH#
GND
7
FAL#
DEG#
8
PRST#
GND
9
GND
V1 SENSE (+5V)
10
V2 SENSE (+3.3V)
SENSE RTN
11
V3 SENSE (+12V)
GND
12
V1 SHARE (+5V)
V2 SHARE (+3.3V)
13
V3 SHARE (+12V)
GND
