AM4011 Introduction
ID 1022-1626, Rev. 2.0 Page 1 - 7
P R E L I M I N A R Y
1.4.2 Front Panel

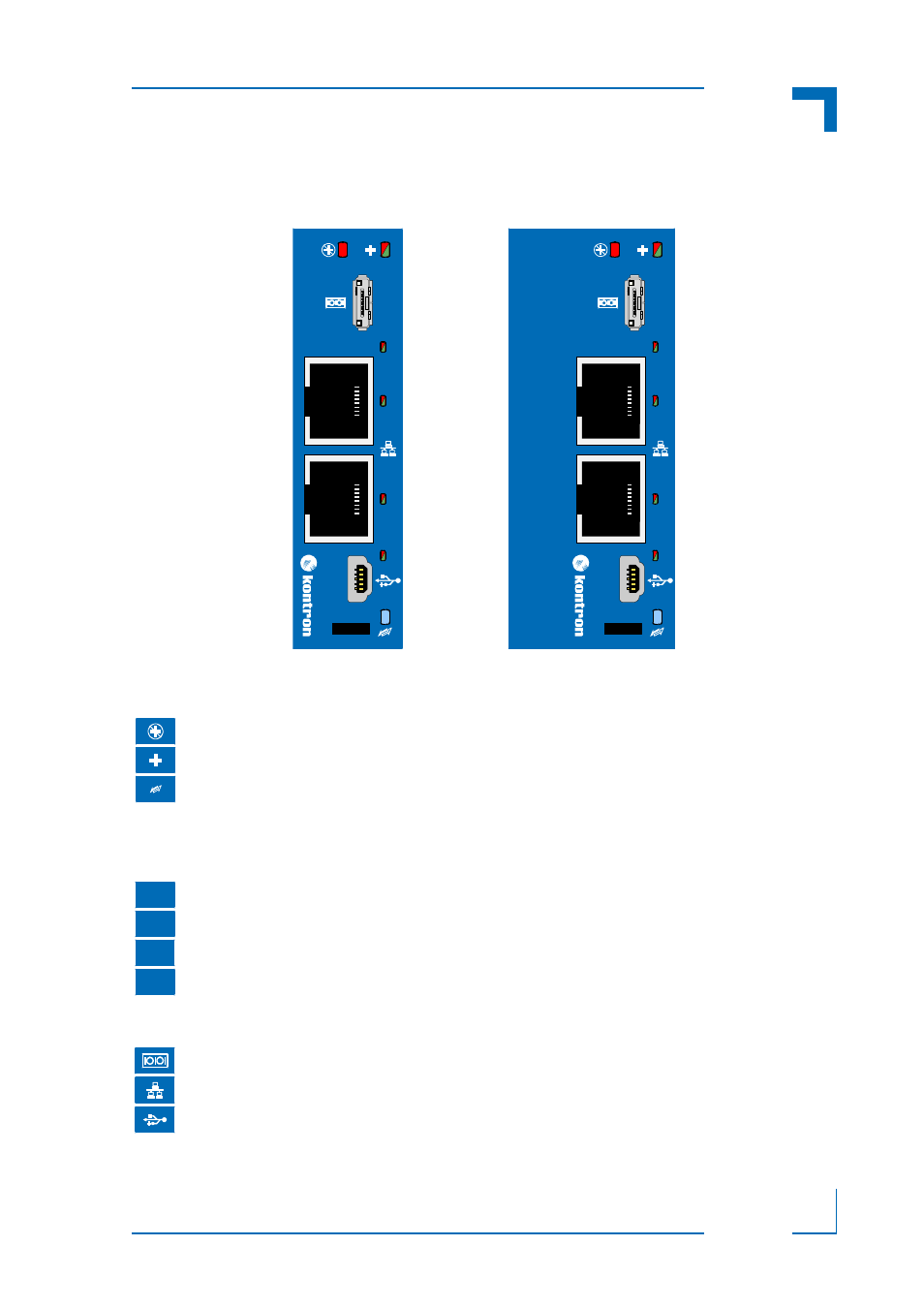

Figure 1-2: AM4011 Front Panel Versions
3
2
1
0
0
1
2
3
AM4011
GbE D
GbE C
0
1
2
3
AM4011
GbE D
GbE C
Mid-size Full-size
Module Management LEDs
• LED1 (red): Out-of-Service LED
• LED2 (red/green/amber): Health LED
• HS LED (blue): The hot swap indicator provides basic feedback to the
user on the hot swap state of the module. The HS LED
states are off, short blink, long blink, and on.
User-Specific LEDs
• ULED3 (red/green): AMC Eth. port A link signal status or BIOS POST code LED
• ULED2 (red/green): Front Eth. port C link signal status or BIOS POST code LED
• ULED1 (red/green): Front Eth. port D link signal status or BIOS POST code LED
• ULED0 (red/green): AMC Eth. port B link signal status or BIOS POST code LED
Connectors
• Serial Connector
• Gigabit Ethernet Connector
• USB Connector
For further information on the LEDs used on the AM4011, refer to section 2.3.1, “Front Panel
LEDs”.
