11 AM4520
www.kontron.com
3. Installing the Board
3.1 Setting Jumpers
3.1.1 Jumper Description
Table 3-1: Jumper Description
3.1.2 Setting Jumpers & Locations

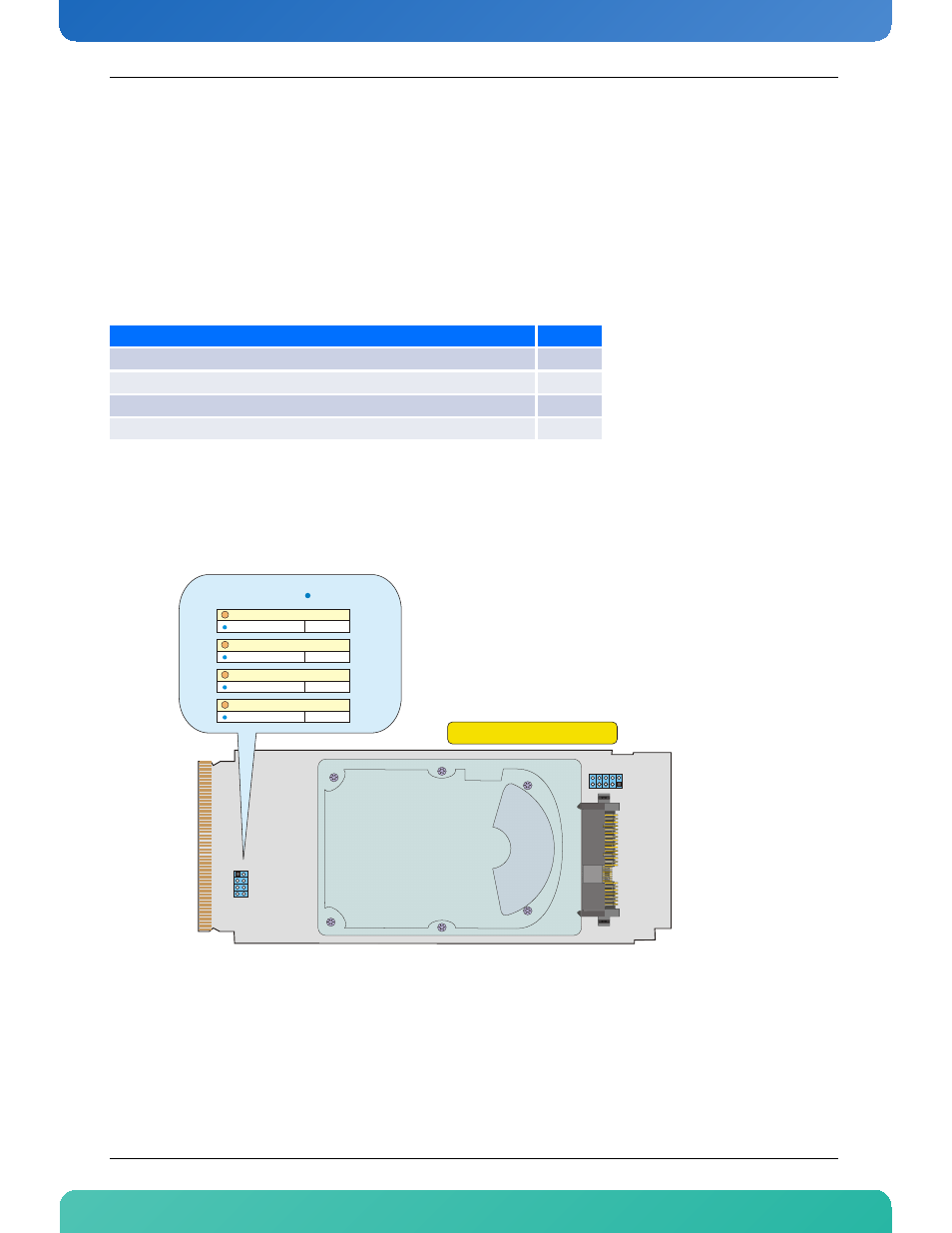

Figure 3-1: Jumper Location
Description
Reserved W1 1-2
Reserved W1 3-4
Reserved W1 5-6
Reserved W1 7-8
1
3
5
7
2
4
6
8
J4
1 3 5 7 9
2 4 6 8 10
J3
J8
W1
J5
Height Out of AMC.0 Rev 2 Spec. when
fitted with SAS HDD. WARNING
JUMPER SETTINGS ( Default Setting) JUMPER SETTINGS ( Default Setting)
JP2 - Clear CMOS W1 1-2 - Reserved
out Reserved
JP2 - Clear CMOS W1 3-4 - Reserved
out Reserved
JP2 - Clear CMOS W1 5-6 - Reserved
out Reserved
JP2 - Clear CMOS W1 7-8 - Reserved
Reserved in
