ADD2-DVI-Dual
KTD-00714-F Public User Manual Date: 2008-11-25 Page 7 of 9
Included DVI Cable
DVI cable (item no. 821524 ADD2-DVI Aux Cable 300mm or 1022-2966 ADD2-DVI Aux Cable 150mm) is
included.
820951 includes two 821524 ADD2-DVI Aux Cable 300mm
820952 includes one 821524 ADD2-DVI Aux Cable 300mm
820955 includes two 821524 ADD2-DVI Aux Cable 300mm
820958 includes two 1022-2966 ADD2-DVI Aux Cable 150mm

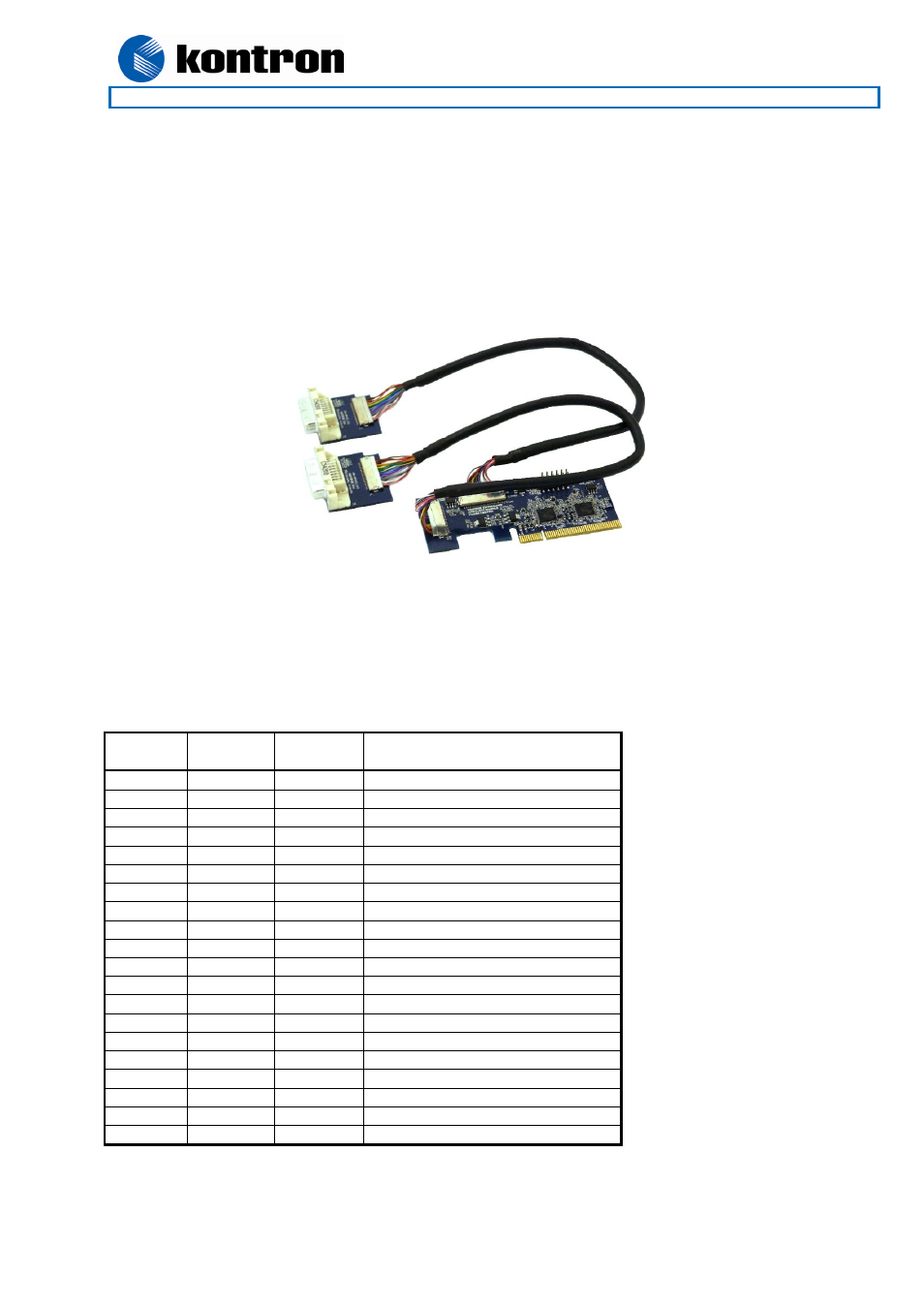

Example: 820951 ADD2-DVI-Dual-Internal with cables mounted.
The 821524 and 1022-2966 cable kits are based on two pieces of Hirose DF19L-20P-1H connector. The
wiring is a one-to-one connection. The cable kit includes a DVI-SIL to DVI-I converter module.
Cable wiring:
DVI-SIL 1 DVI-SIL 2 DVI-I
Pin No. Pin No. Pin No. Signal
1 1 - GND
2 2 - GND
3 3 14 +5V (55mA)
4 4 16 Hot Plug Detect
5 5 15 GND
6 6 7 DDC Data
7 7 6 DDC Clock
8 8 - GND
9 9 24 TMDS Clock-
10 10 23 TMDS Clock+
11 11 22 GND
12 12 17 TMDS Data 0-
13 13 18 TMDS Data 0+
14 14 19 GND
15 15 9 TMDS Data 1-
16 16 10 TMDS Data 1+
17 17 11 GND
18 18 1 TMDS Data 2-
19 19 2 TMDS Data 2+
20 20 3 GND
