10

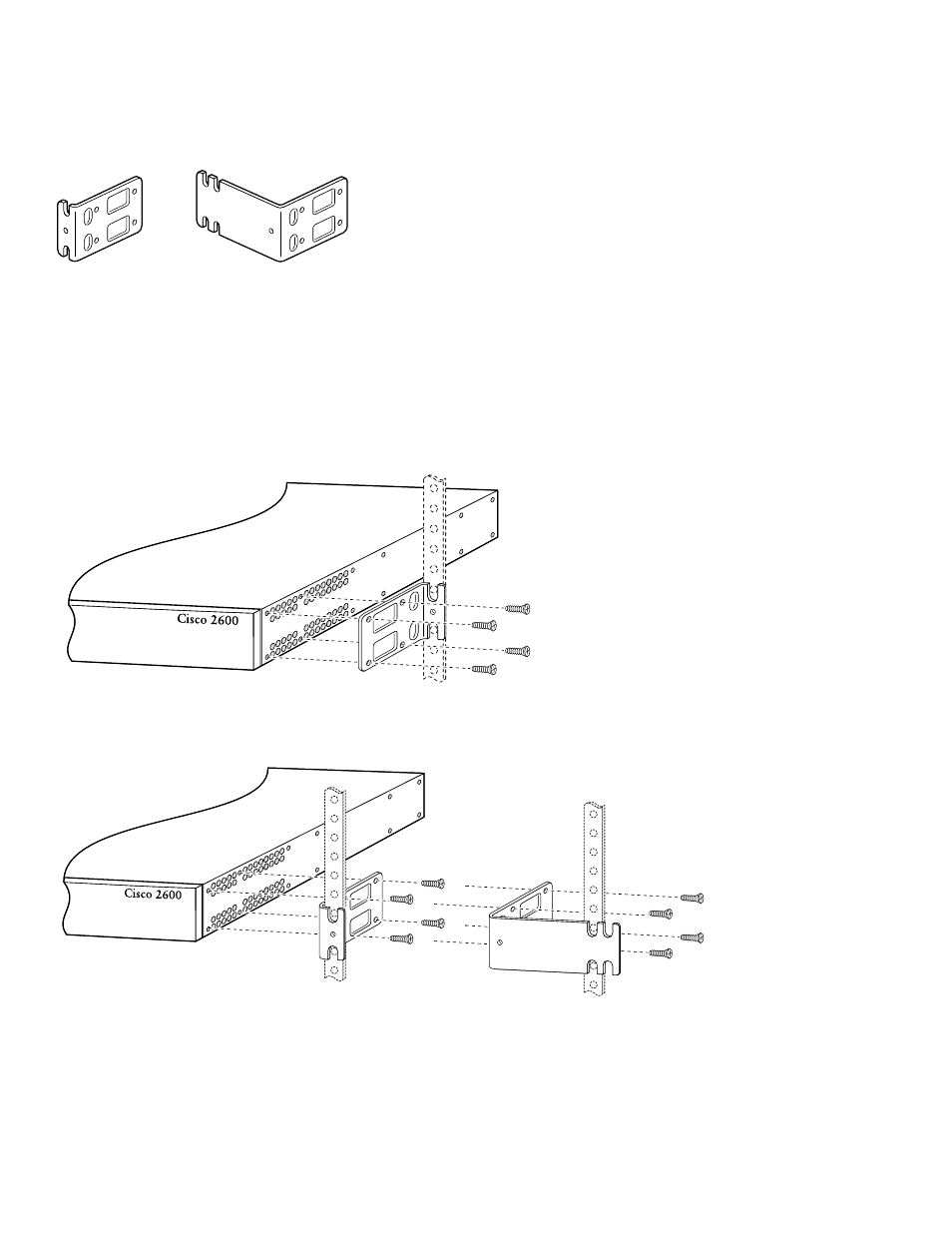

The brackets for 19-, 23-, and 24-inch racks are shown in Figure 1.
Figure 1 Brackets for Rack-Mounting of Routers with 1-RU Chassis Height
Attaching Brackets
Attach the mounting brackets to the chassis as shown in Figure 2 through Figure 8, using the screws provided. Attach the second
bracket to the opposite side of the chassis. Use a number 2 Phillips screwdriver to install the bracket screws.
Figure 2 Bracket Installation for Front Mounting in 19-Inch Rack
Figure 3 Bracket Installation for Front Mounting: 19-Inch Rack with 17.75-Inch Opening, and 23- or 24-Inch Rack
Bracket for use with a
23-inch or 24-inch rack Bracket for use
with a 19-inch rack
27711
62676
Note: The second bracket attaches to the other side of the chassis.
62881
Note: The second bracket attaches
to the other side of the chassis. Brackets for
19-inch rack Brackets for
23-inch or 24-inch rack
