Page 7

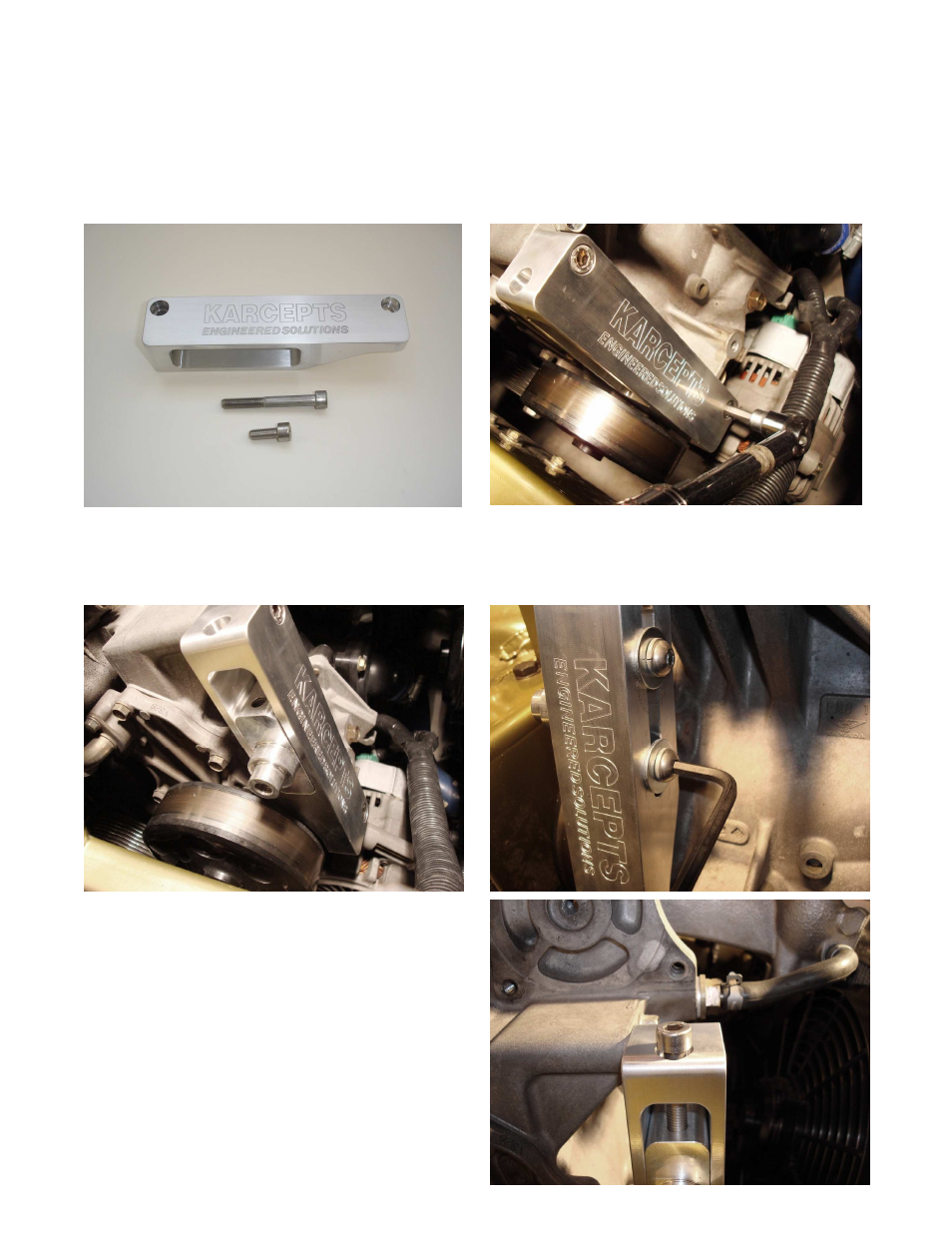

4. TENSIONER INSTALLATION
1.
Affix the tensioner bracket to where the alternator previously mounted on the
water pump housing with one M8 x 65mm long socket head cap screw (top
hole) and one M8 x 20mm (or M8 x 30mm, depending on kit contents) long
socket head cap screw (bottom hole). Torque both bolts down to no more than
16 ft-lbs (192 in-lbs).
2.
Insert the tensioner block into the tensioner bracket with the tapped hole in the
tensioner block facing upwards. Temporarily snug the M8 x 25mm button head
cap screws, lock washers, and flat washers into place with the tensioner block
resting in the bottom of the tensioner bracket.
3.
Insert the M8 x 60mm long
socket head cap screw into the
top of the tensioner bracket (leave
loose temporarily; as shown).
