Just Better Platinum Series - Manual (Page 3)

3
Ref. Part
No. No. Description
Ref. Part
No. No. Description
15 PR-208♦ Flexible Coupler (3 Parts)
PR-308 Flexible Section Only
17 PR-62
Rubber Foot For Base
21 PR-206 1/2 HP, 115V, 60HZ Motor w/Line Cord and
Switch
PR-207 1/2 HP, 115V/230V, 50/60HZ Motor w/Line
Cord and Switch
19 PR-31 6' Line Cord, 115V Emerson Motor
PR-58 6' Line Cord 115V Marathon Motor
22 PR-5♦ Intake Tee with Caps
20 PR-54 Rocker Switch, 115V Emerson Motor (Wire Leads)
23 PR-7 Gas Ballast Valve w/O-Ring
24 P9000 O-Ring, Gas Ballast Valve
25 PR-40
Splash Guard and Screw
26 PR-75♦ 1/2” Cushioned Handle w/Lift Loop & DV-EP 8 101
27 PR-22
Oil Fill Plug w/O-Ring
29 PR-62 Base With Feet
30 PR-501 Cushion Grip With Cap
31
DV-EP 8 101 Red Plug For Handle
32 NFT5-8 1/2 Cap w/O-ring
1 PR-1♦ Sight Glass
2 PR-2♦ Drain Valve
PR-300 DV-42N through DV-200N Cover Assy.
3 w/Sight Glass and Drain Valve & Handle and red plug
PR-301 DV-285N Cover Assy. w/Sight Glass and Drain Valve
& Handle and red plug
PR-305 DV-42N Cartridge w/O–Rings and Cover Seal
PR-302 DV-85N Cartridge w/O–Rings and Cover Seal
4 PR-303 DV-142N Cartridge w/O–Rings and Cover Seal
PR-304 DV-200N Cartridge w/O–Rings and Cover Seal
PR-314 DV-285N Cartridge w/O–Rings and Cover Seal
5 PR-311 Cover Seal
6 PR-211 Trap O-Ring, Gas Ballast
7 PR-3 Shaft Seal
8 PR-315 Trap O–Ring, Intake
10 PR-76♦ Intake Cross with Caps
11 NFT5-4
1/4" O–Ring Cap
12 NFT5-6 3/8" O–Ring Cap
13 PR-32♦ 1/4" Intake with Cap
14 PR-209
Plastic Isolation Valve Handle & Screw
includes stem w/O–rings & Retainer
3

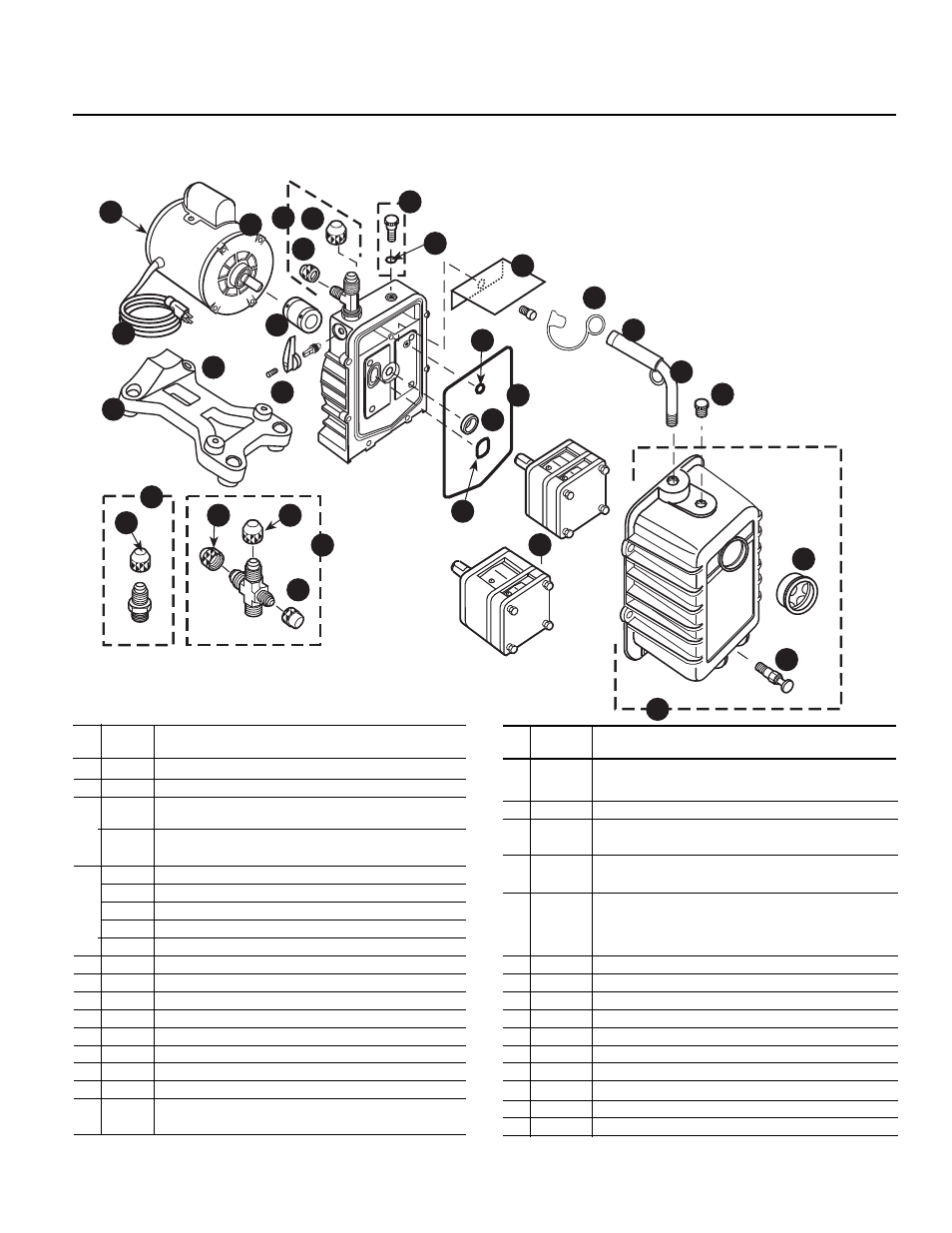

REPAIR PARTS
Please provide following information:
–Model number
–Four digit serial number
–Part description and number as shown
in parts list
26
1
2
3
5
6
7
8
22
23
15
14
21
24
10
11
13
25
12 32
4
20
19
12
11
11
27
29
30
17
31
PR-35 Rocker Switch, 115V Marathon Motor (Prongs)
♦
PR-18 Cartridge Valve Repair Kit (Not Shown)
Not Shown
* Coat With Thread Sealant When Replacing
