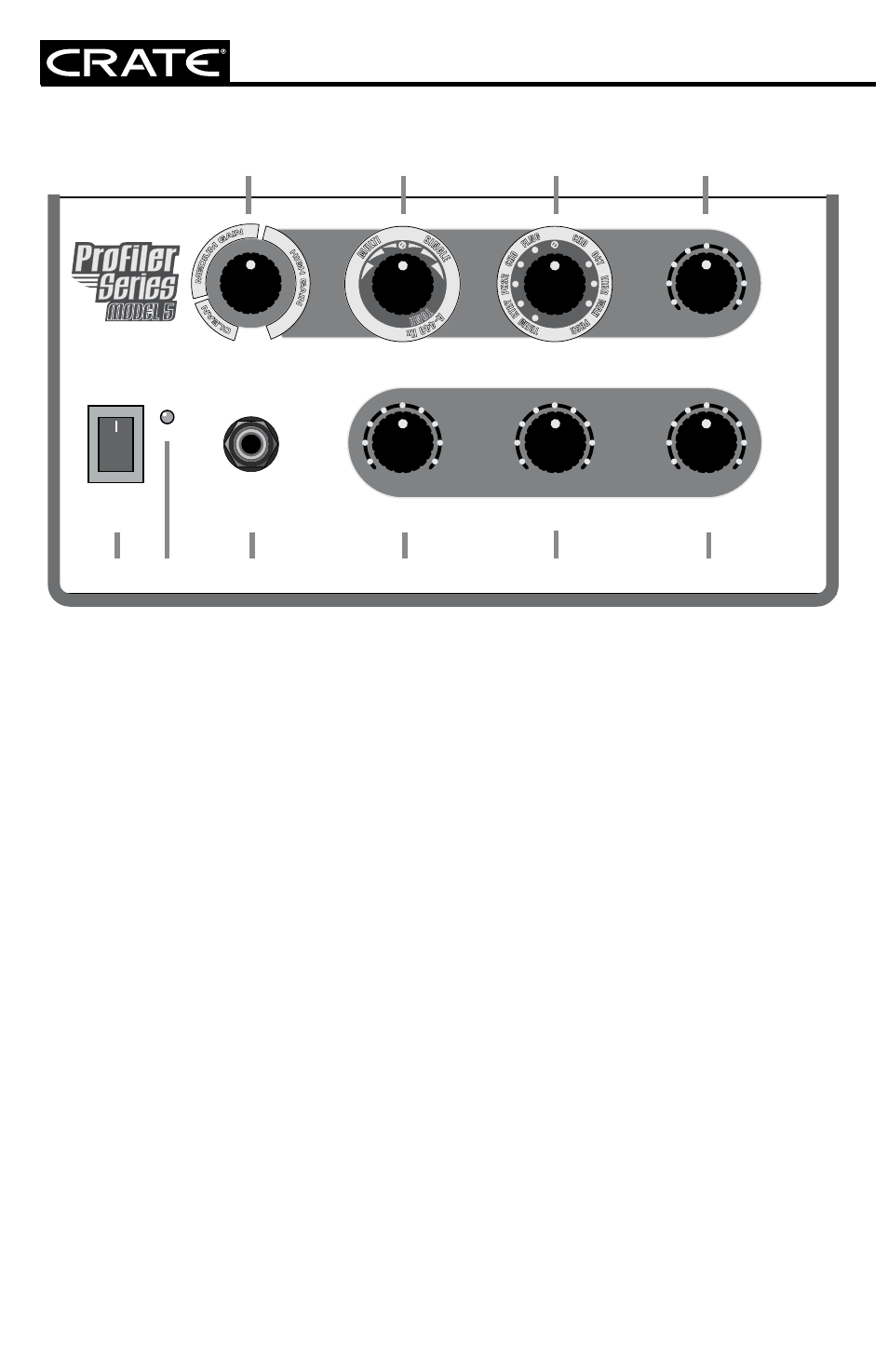

The Top Panel
5
INPUT POWER TONE GAIN MASTER
0 10 0 10 0 10
MODEL 5
PROFILES DELAY EFFECTS REVERB
0 10 1
2
1
2
3
4 1
2
3
4
5
1
2
1
2
3
4 1
2
3
4
5
CL
EA
N
M
E
D
IU
M
G
AIN
H
IG
H
G
A
IN
PHSR
W
AH
CHO
O
CT
VIB
R
W
AH
PH
SR
T
REM
R
TR
Y
P
HS
R
C
HO
FLN
G
M
ULT
I
SIN
GLE
A-
440
Hz
TUN
E
1 2 3 4 5 6
7 8 9 10
1. POWER:.Use.this.switch.to.turn.the.
amplifier.on.(top.of.the.switch.depressed).
and.off.(bottom.of.the.switch.depressed).
2. POWER LED:.This.LED.illuminates.when.
the.POWER.switch.is.on.and.the.amplifier.
has.power.provided.from.either.the.supplied.
AC.adapter.or.the.battery.pack..
3. INPUT:..Use.this.jack.to.connect.your.
guitar.to.the.amplifier.by.means.of.a.shield-
ed.instrument.cable.
4. GAIN:.Use.this.control.to.adjust.the.amount.
of.gain.for.the.Medium.Gain.and.High.Gain.
profiles..The.amount.of.gain.varies,.depend-
ing.on.the.profile.selected..The.more.gain,.
the.more.distortion..The.Gain.control.has.no.
effect.when.a.Clean.profile.is.selected.
5. TONE:.Use.this.control.to.“dial.in”.the.
tone..Rotating.this.control.counter-clockwise.
results.in.a.darker.sound,.while.rotating.it.
clockwise.will.give.you.a.brighter.sound.
6. MASTER:.Use.this.control.to.adjust.the.
overall.output.level.of.the.amplifier.
7. PROFILES:.Use.this.switch.to.select.
one.of.11.different.amplifier.profiles..These.
profiles.simulate.the.sound.of.11.popular.
amplifiers..There.are.two.clean.profiles,.four.
medium.gain.profiles,.and.five.high.gain.pro-
files..More.information.about.these.profiles.is.
provided.on.page.7.
8. DELAY:.Use.this.control.to.select.the.
type.of.digital.delay.effect..When.the.control.
is.straight.up.(12.o’clock),.the.delay.effect.
is.bypassed..Turning.the.control.to.the.
left.(counterclockwise).provides.five.differ-
ent.presets.of.multi-repeat.delay.settings..
Turning.the.control.to.the.right.(clockwise).
results.in.four.different.presets.of.single-
repeat.delay.settings..The.last.position.in.the.
clockwise.direction.turns.on.the.A-440.Hz.
tuner..It.provides.a.repeating.440.Hz.tuning.
fork.tone.as.a.tuning.reference..
9. EFFECTS:.Use.this.control.to.select.
one.of.ten.digital.modulation.effects..When.
the.control.is.straight.up.(12.o’clock),.the.
modulation.effects.are.bypassed..More.
information.about.these.effects.is.provided.
on.page.8.
10. REVERB:.Use.this.control.to.adjust.
the.amount.of.digital.reverb.effect..In.its.
fully.counterclockwise.position,.the.signal.
will.be.“dry”.(without.reverb)..As.you.rotate.
this.control.clockwise,.the.amount.of.reverb.
increases.
