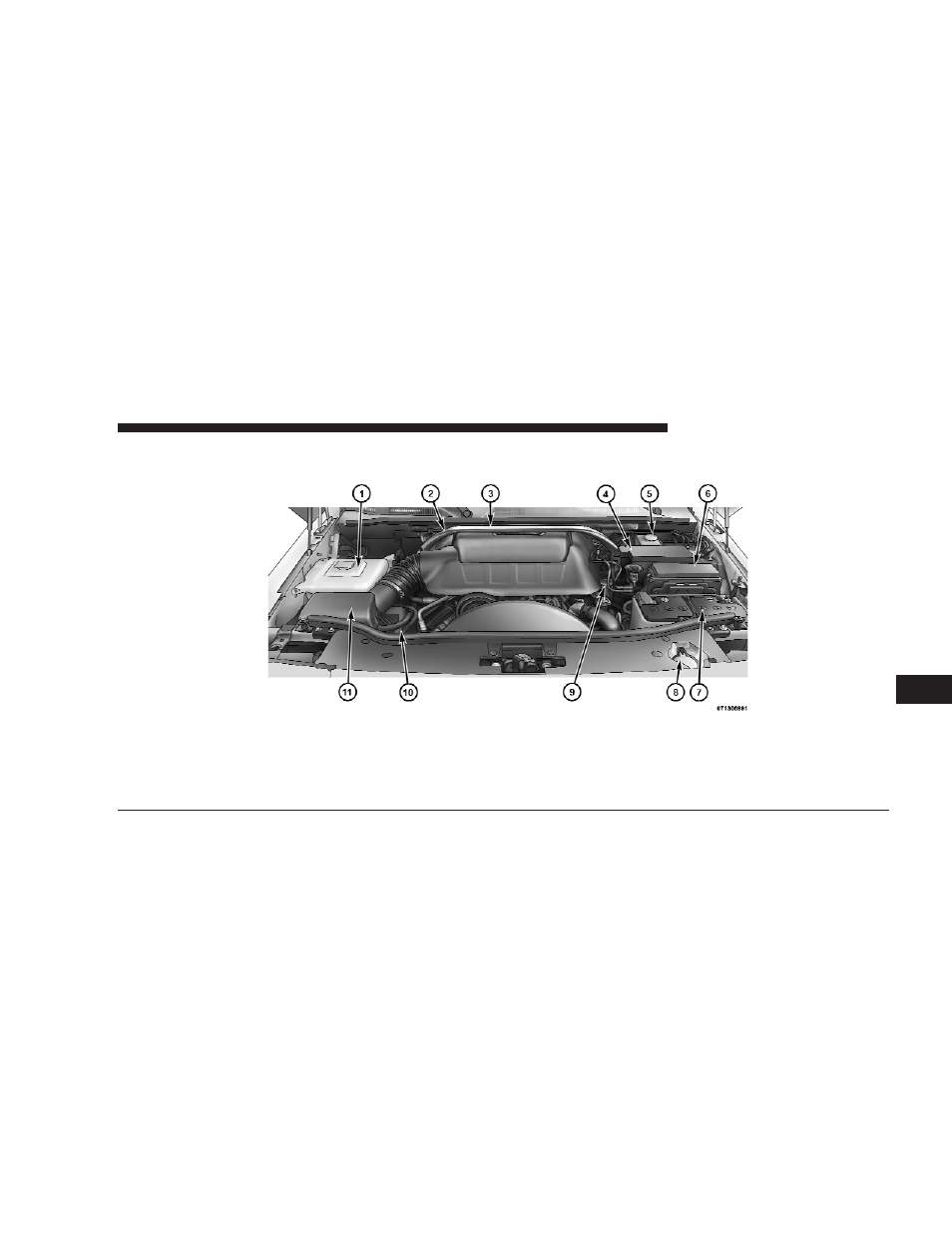

ENGINE COMPARTMENT – 4.7L
1 — Engine Coolant Reservoir
7 — Battery
2 — Automatic Transmission Dipstick
8 — Washer Fluid Reservoir
3 — Engine Oil Dipstick
9 — Engine Oil Fill
4 — Power Distribution Center
10 — Coolant Pressure Cap
5 — Brake Fluid Reservoir
11 — Air Cleaner Filter
6 — Integrated Power Module
MAINTAINING YOUR VEHICLE
407
