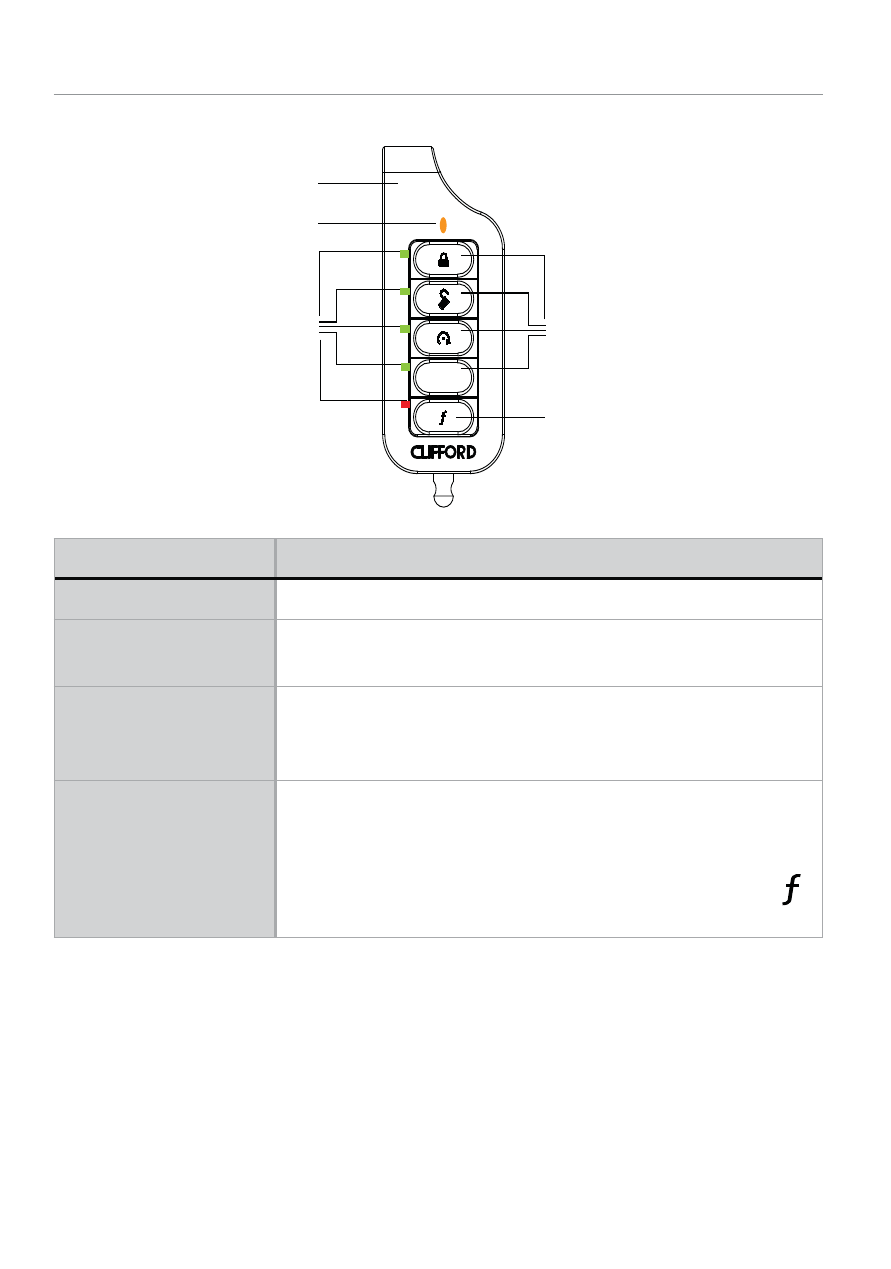

Responder LE 2-Way
AUX
Transmit
LED
Internal
Antenna
Ghost
LED’s
Command
Buttons
Function
Button
Feature
Description
Internal Antenna
Used for transmitting and receiving* information
Command buttons (4)
Used to perform arming, disarming, auxiliary channel and
remote start commands
Function button
Used to access function levels for commands, configura-
tion menus for programming, Car Selection, and to request
reports.
Ghost LED’s **
Each button has an associated LED next to it that are active
during related operations. These LED’s are labeled respec-
tively as:
Arm LED, Disarm LED, Remote Start LED, Aux LED, and
LED
* 2-way communication is only applicable to the Responder LE
remote control
** Term denotes that these LED’s are only visible when On (Ghost
LED’s are only applicable to the Responder LE remote control).
