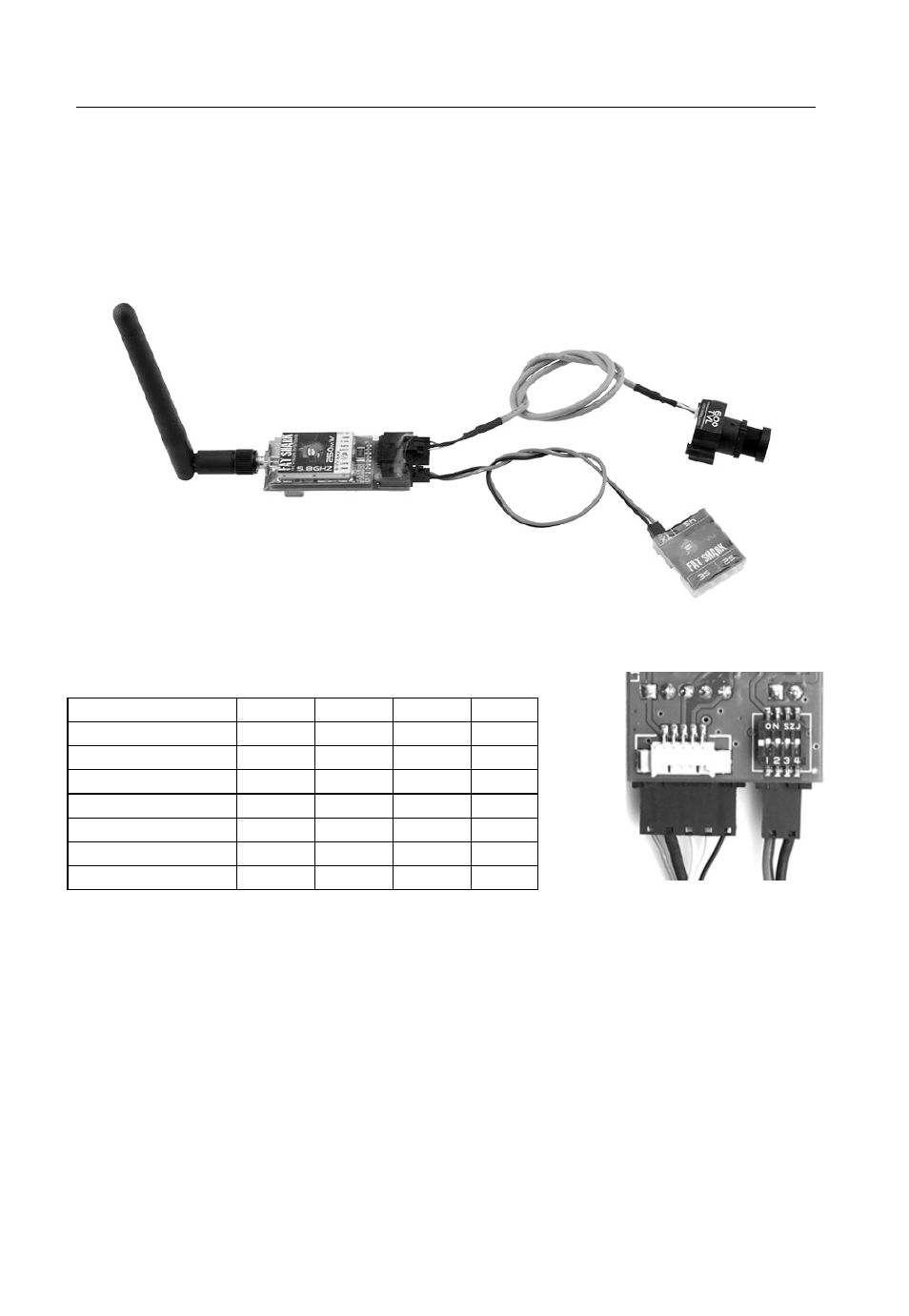

Downlink Overview (Camera, TX, Power)
Downlink system comes preassembled and tested for plug/play with your aircraft.
Simply connect the balance lead of your 2S, 3S or 4S (7.4V - 16V) RC battery to
provide power to your Fat Shark Downlink and you are ready to fly.
The handy balance lead filters RC servo and motor noise from your RC pack for a
crisp, clear image.
Transmitter
Channel select chart:
1 2 3 4
Ch1 5740 MHz
On
On
On
N/A
Ch2 5760 MHz
Off
On
On
N/A
Ch3 5780 MHz
On
Off
On
N/A
Ch4 5800 Mhz
Off
Off
On
N/A
Ch5 5820 MHz
On
On
Off
N/A
Ch6 5840 Mhz
Off
On
Off
N/A
Ch75860 MHz
On
Off
Off
N/A
WARNING: DO NOT POWER TRANSMITTER WITHOUT ANTENNA ATTACHED. NO
ANTENNA LOAD WILL DESTROY RF AMPLIFIER – NOT COVERED BY WARRANTY
Small white connector on back of transmitter is for ImmersionRC Tiny Telemetry.
See accessories.
Camera
2.8mm lens for wide angle 100 degree FOV; ideal for fixed camera piloting.
Camera is NTSC/PAL selectable (PAL default, remove jumper on back for NTSC).
Plugs camera directly into TX via included cable (pre assembled).
