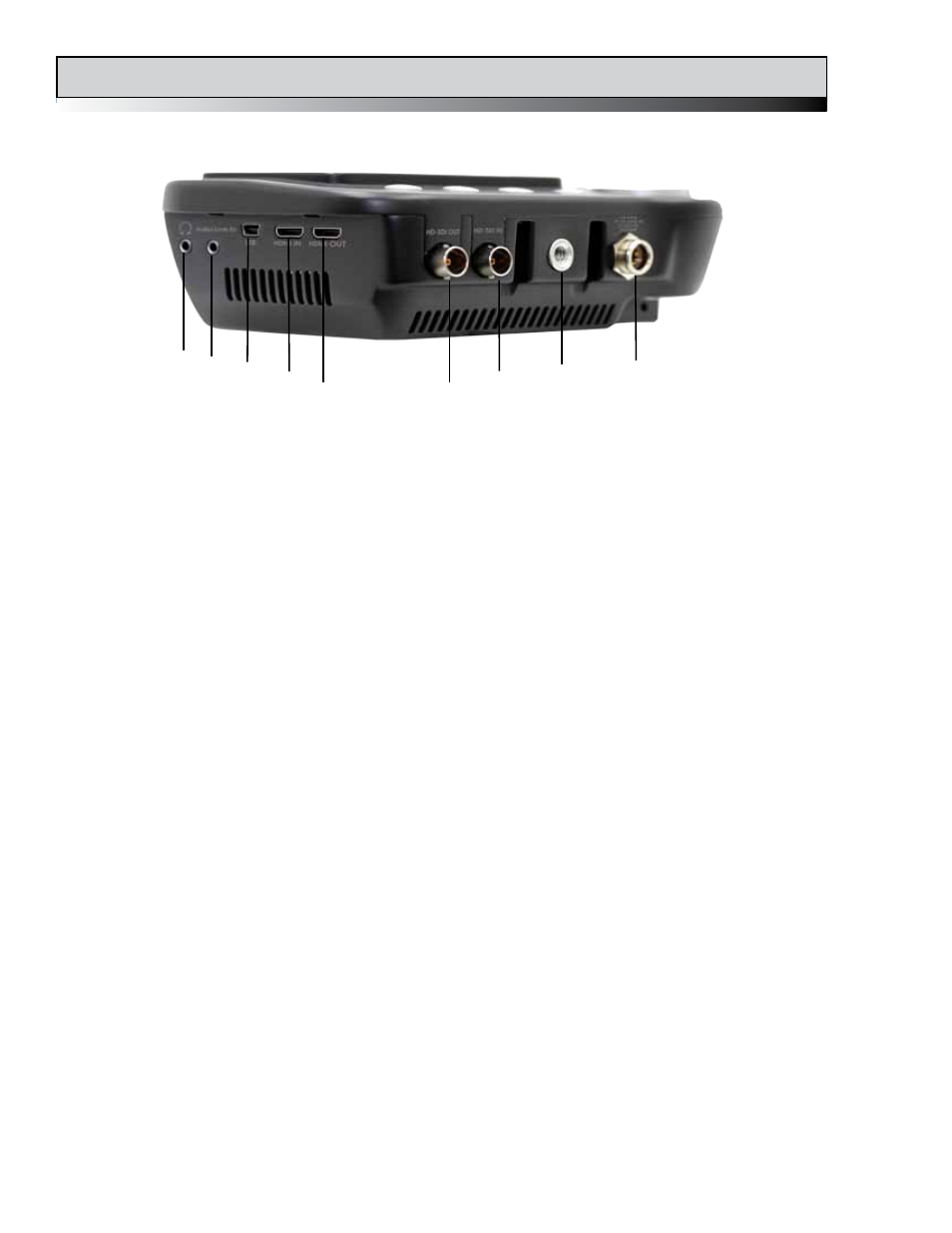

Connections
5 6 7
8 9
1
2
3
4
1. HD-SDI Output (BNC connector) - Route HD video and embedded audio output signal to a
monitor or another external device. Output is hot regardless of input being HD-SDI or HDMI.
2.
HD-SDI Input (BNC connector) - Input HD-SDI uncompressed video with embedded audio
and time code from a camera or other source to record and display.
3.
Standard 1/4" 20 Mount (threaded screw hole - female) - Allows sideKick HD to be mounted
to a camera using a hot shoe adapter, or an adjustable arm, as well as a tripod, 15mm rail rig
or any support system using a standard 1/4" 20 mount.
4.
Power (locking Mini XLR connector) - Variable voltage power supply requirements 7-16VDC,
consumption 3-21W. Power changes with different modes (i.e. record vs. pass-thru) and fan
changes due to temperature.
5.
Headphone Jack (3.5mm stereo jack connector) - Audio output for monitoring.
6.
Audio/Line In (3.5mm stereo jack connector) - Records 2 line level analog audio channels
replacing embedded audio channels 1 and 2.
7.
USB (USB-C port) - FOR FUTURE USE.
8.
HDMI In (HDMI mini connector) - HD video and audio input from a camera or other source to
record and display.
9.
HDMI Out (HDMI mini connector) - Route HD video and embedded audio output signal to a
monitor or another external device. Output is hot regardless of input being HD-SDI or HDMI.
Yes you can input HD-SDI and monitor via HDMI simultameously or HDMI in to HD-SDI out,
Cool, huh?
Bottom
Left Side
