The Monitor Screen
Live View
Camera Pass-thru
Green LED
Record Mode
Confidence Monitor
Red LED
Playback Mode - Jog
Yellow LED
Playback Mode - Scrub
Yellow LED

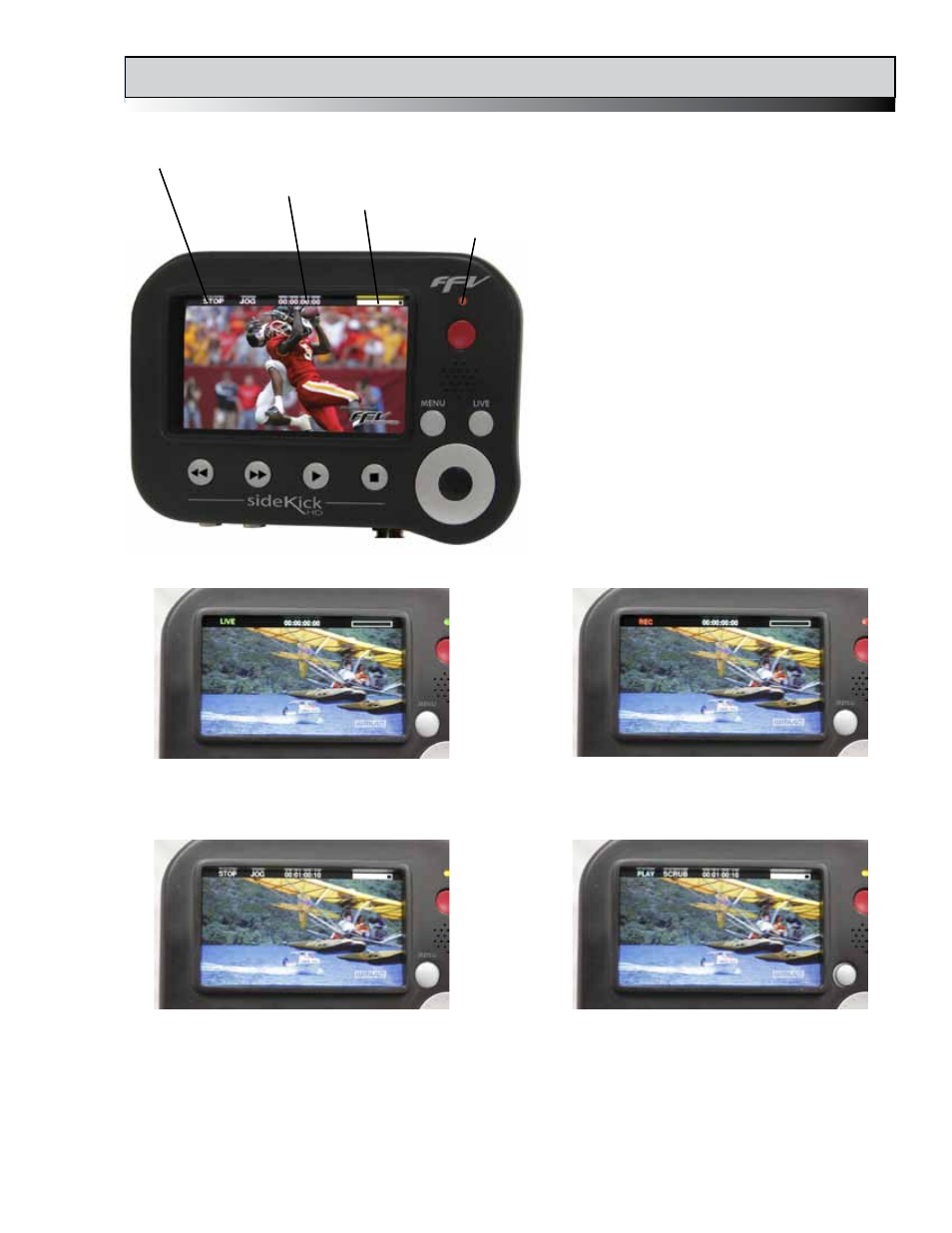

The MONITOR SCREEN has three primary
functions:
1.
LIVE VIEW also known as Camera
Pass-thru is used for monitoring what
you are going to shoot. Pressing the
LIVE button returns to this view from
the RECORD and PLAYBACK modes.
2. In RECORD MODE this view is used
as a confidence monitor so the Camera
Operator knows what is actually being
recorded.
3. In PLAYBACK MODE, the operator
can play clips forward normally, JOG
one frame at a time in either direction
or using the SCRUB feature play clips
in fast forward or rewind. The scroll
wheel controls the motion and the black
center button switches between JOG
and SCRUB.
MODE Indicator
(LIVE / REC / STOP / PLAY)
TIME CODE
LED
DRIVE SPACE Icon
The Drive Space Icon turns yellow and then red as the drive approaches 100% utilization. There
is also an exclamation icon ( !) that shows up when the directory has not been loaded or if there
is a problem. The presence of this icon prevents button operation.
