- 3 -

11

Fig.

7

Fig.

9

Fig.

8

Fig.

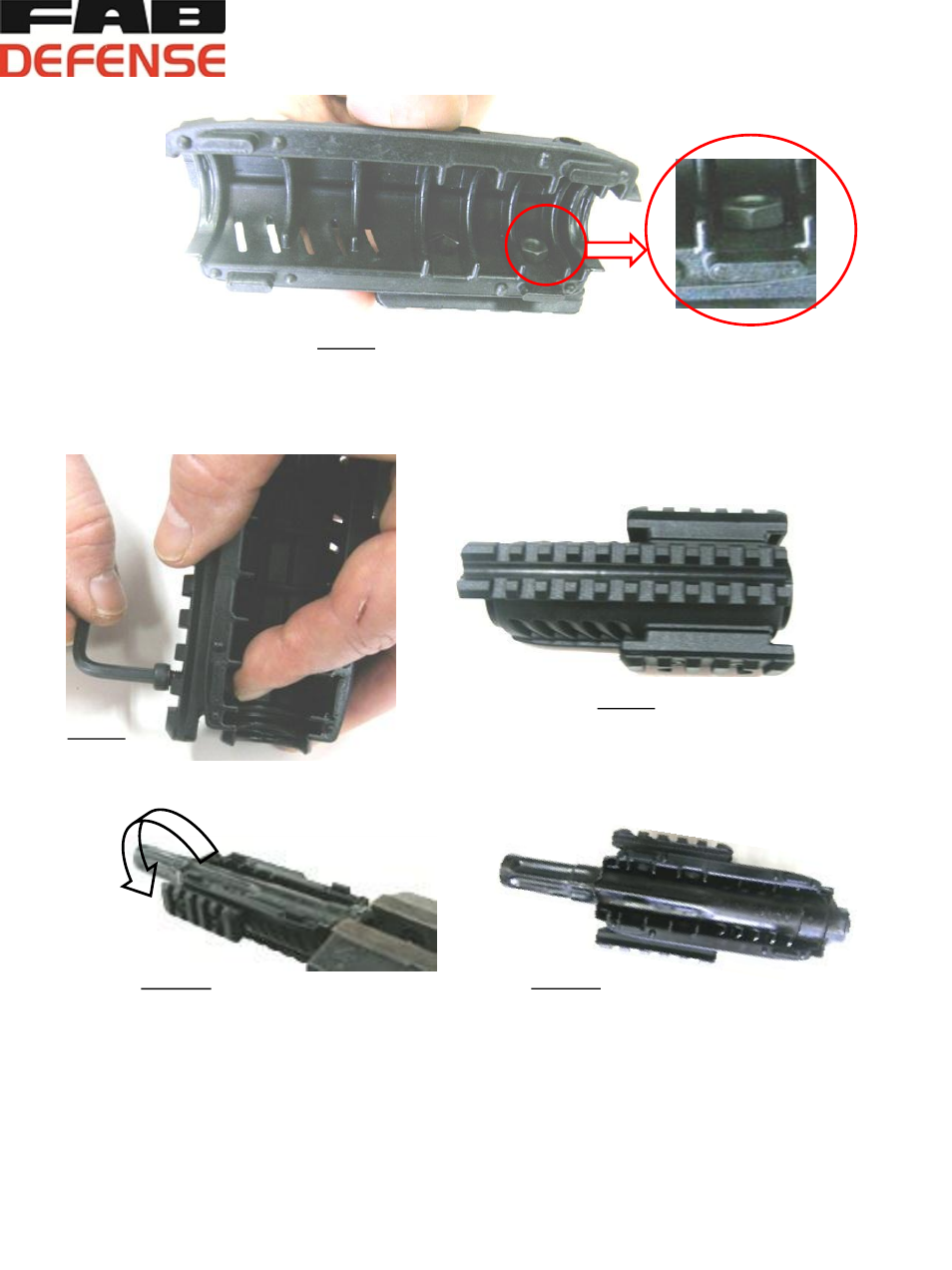

Step 2. Holding the Picatinny Rail, place a Nut into designed for it socket, in the
Upper Handguard (Fig. 7).

Step 3. Holding the Nuts fasten Picatinny Rail’s Bolts using the Alen Key (Fig. 8, 9).

10

Fig.

Step 4. Place the Upper Handguard on the Gas Tube.
Using a wrench or a bench vise attach the Upper Handguard to the Gas Tube by turning
it 180 degrees (Fig. 10, 11).
