Operation
17
5.0 Operation
Before connecting any components,
follow the safety information in the
ETS-Lindgren Product Information Bulletin
included with your shipment.
The HI-4416 does not shut down automatically. Be
sure to turn the instrument off when not in use.
Display
Connect a probe to the HI-4416. Make sure the switch on the probe is in the
“ARM” position and then turn the system readout on.

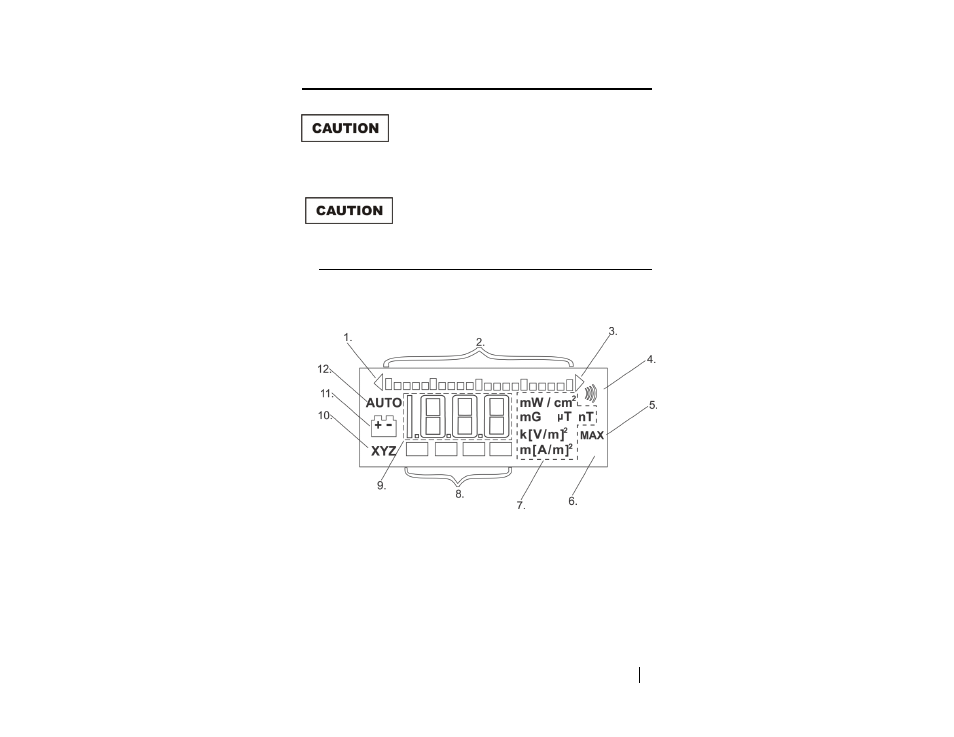

The HI-4416 uses a custom LCD to display the probe settings and field values
that are measured.
1. Under Range Indicator
7. Units of Measure Indicators
2. Bar Graph
8. Cursor Block
3. Over Range Indicator
9. Digital Display
4. Alarm Active Indicator
10. Axis Indicator
5. Maximum Reaidng Indicator
11. Battery Indicator
6. Power On Indicator
12. Autorange Indicator
